CE5000-UM-251-9370 6-43
6 DISASSEMBLY AND REASSEMBLY

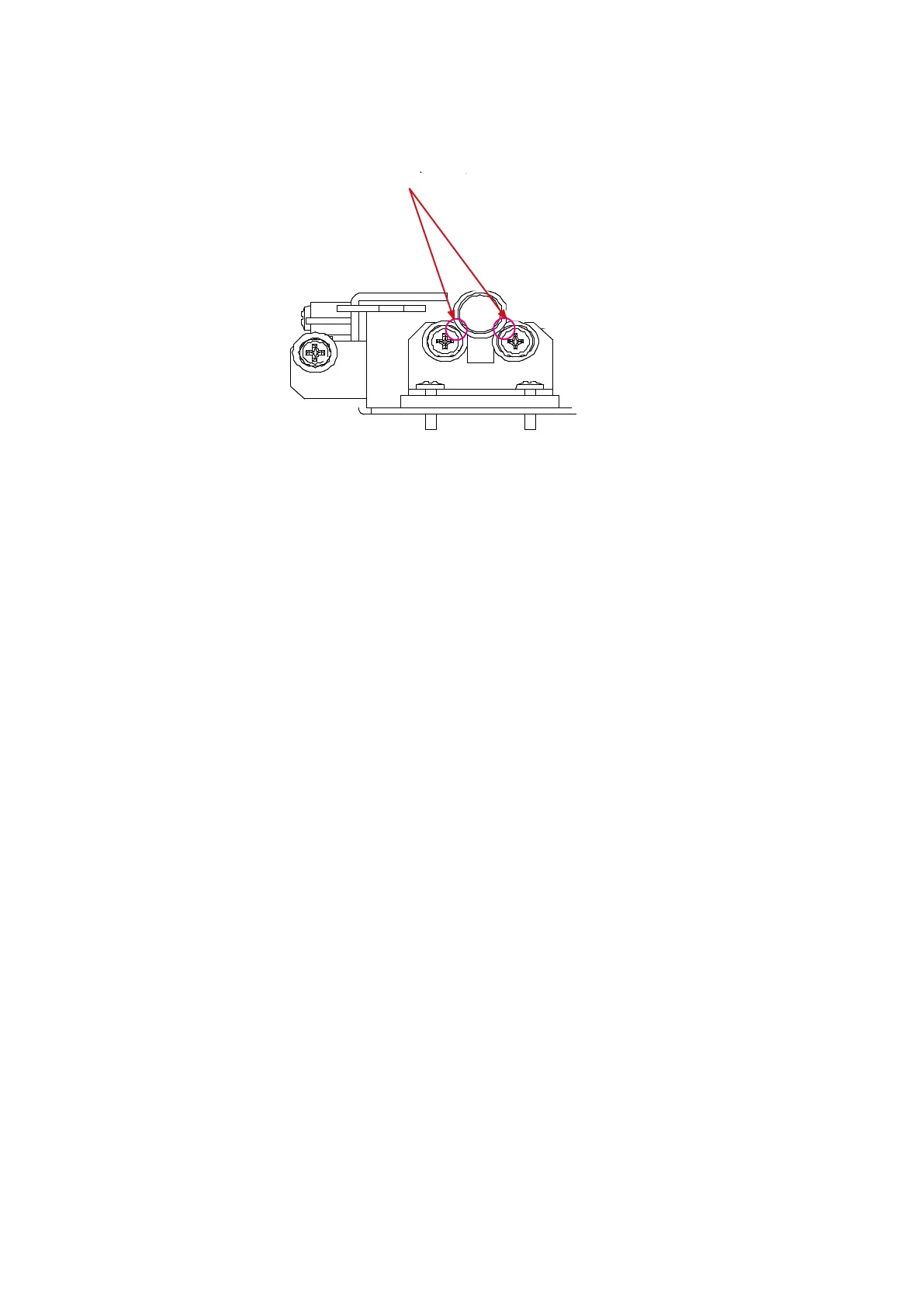

(5) Turnthegridrollershaft,andthenmakesurethattherearenogapbetweenthegridrollershaftandthe
supportroller.Adjustthescrewsiftherearegaps.
Conrmthattherearenogapsbetweenthegriddriveshaftto
thegriddriveholdingrollerafteradjustment.
(6) Adjustthegridrollershaftheightattheotherthreelocationsbysameprocedure.
(7) Spreadasuitablequantityofthescrewlocker(Threebonf1401B)onthetwoscrewsthatholdthegrid
rollershaftsupportbracketforfourofthem.
(8) Reattach the rear ant front guide.
(9) Reattach the center cover.
