6 DISASSEMBLY AND REASSEMBLY

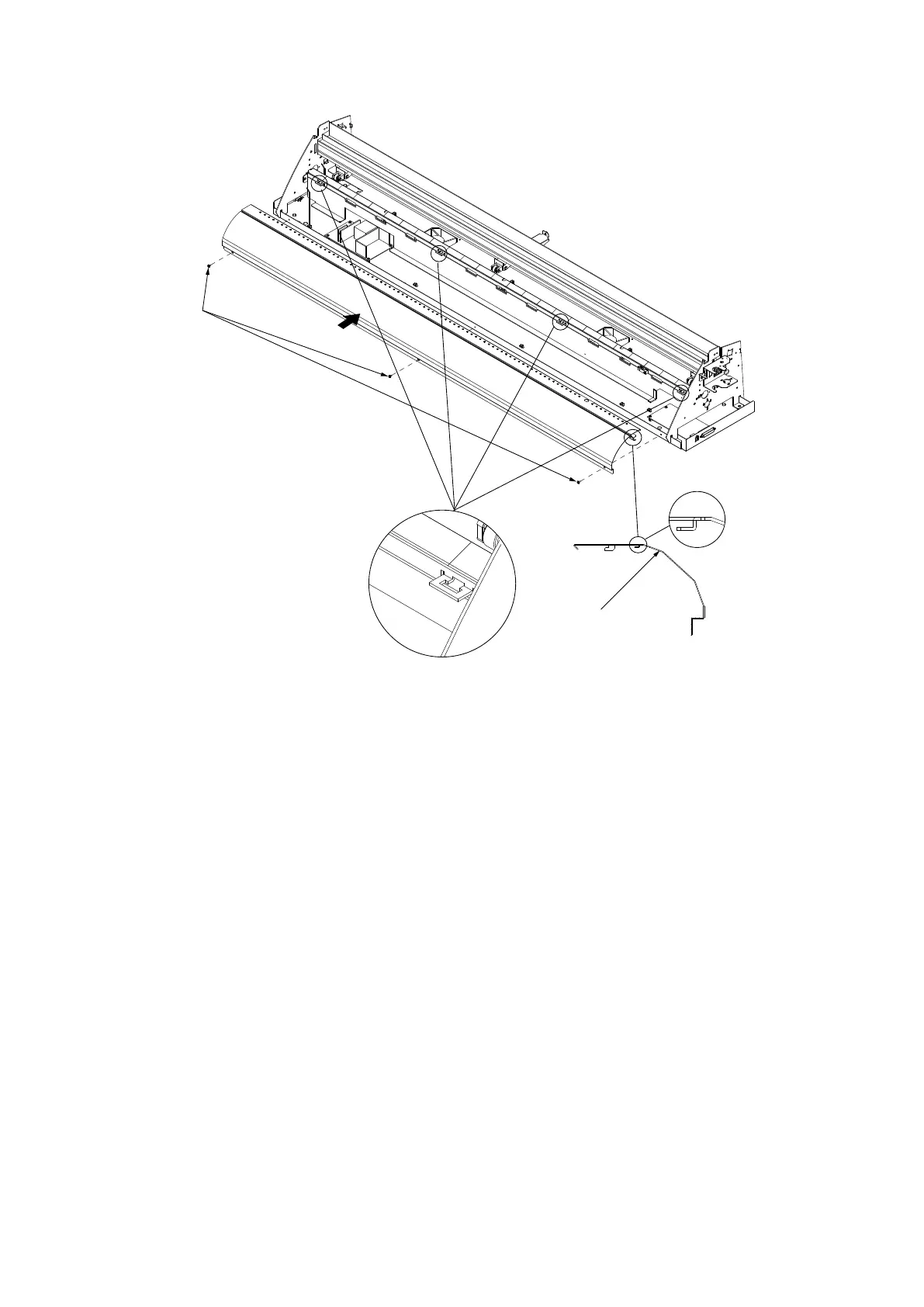

(4) Install the front guide as shown below.
M3L6 TP
head screw
Hook the front guide notches onto these holders.
Front guide notch
Front guide
(5) Slideinfrontguide120andhookthenotchesontothemainframeasshownintheabovegure.
(6) Fasten the three M3L6 TP head screws.
