6 DISASSEMBLY AND REASSEMBLY
6.2.18 How to Conrm the Y rail mounting position
Y-rail mounting position

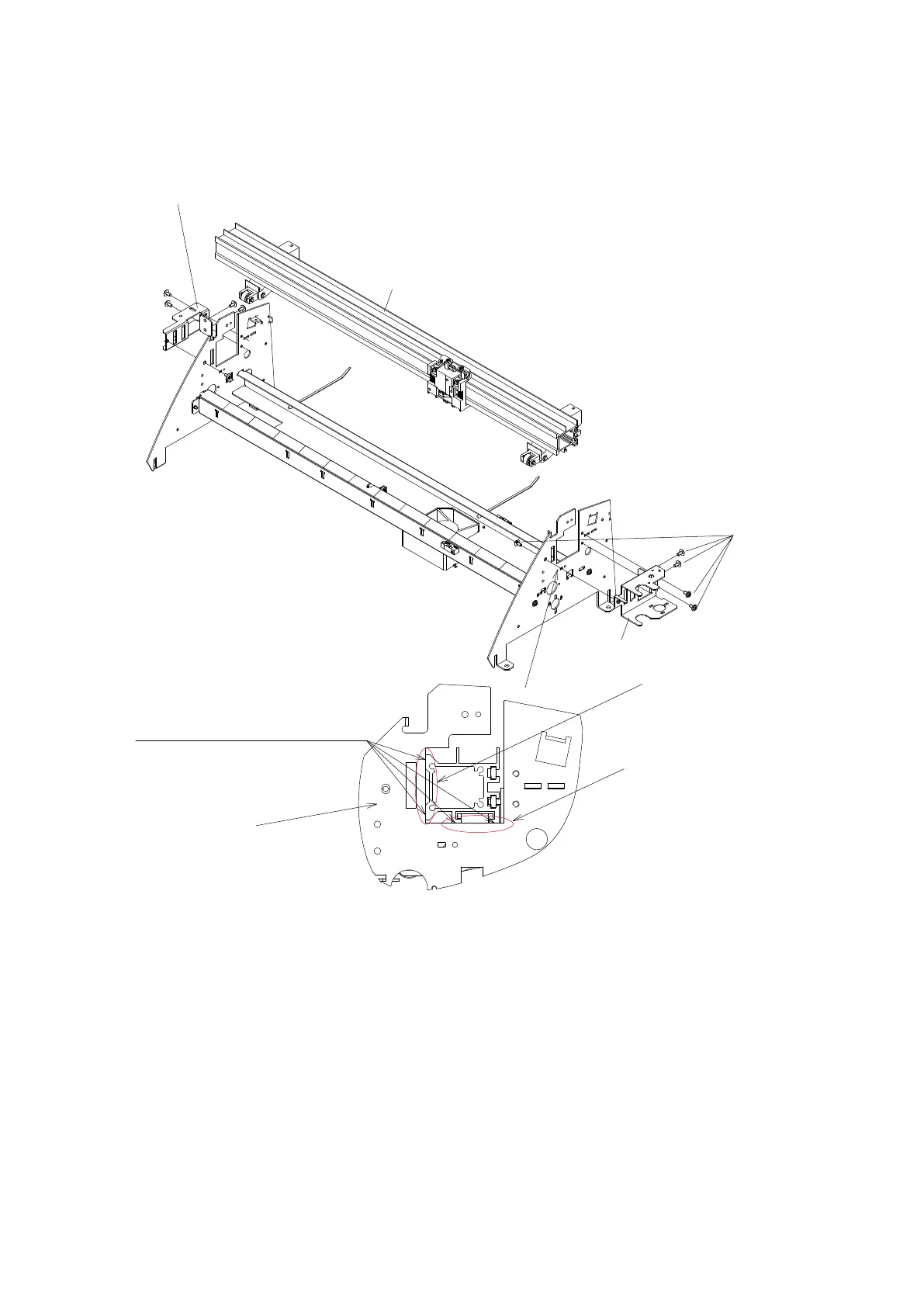

MounttheY-railasshowninthepicturebelowwhentheY-railisinstalling.
Side plate
Front part of Y rail
Y motor bracket
Screws
Bottom part of Y rail
Confirm the gap between both the
Y rail end and the side plate is
within 0.05mm.
It is OK if the one of bottom part of
gap is within 0.05mm.
Y ider pulley bracket
Y rail
