6 DISASSEMBLY AND REASSEMBLY
ThebottompartofY-railhastotouchtothesidepanelplateandthefrontpartofY-railhastotouchtothe
sidepanelplatewheninstallingtheY-rail.
ThepinchrollerwillnotbecometothecenterofthedriverollerifthefrontpartofY-raildoesnottouchtothe
sidepanelplate.
Andtheheightfromthepinchrollerandthedriverollerwillnotbecomesameheightatrightandleftifthe
bottompartofY-raildoesnottouchtothesidepanelplate.

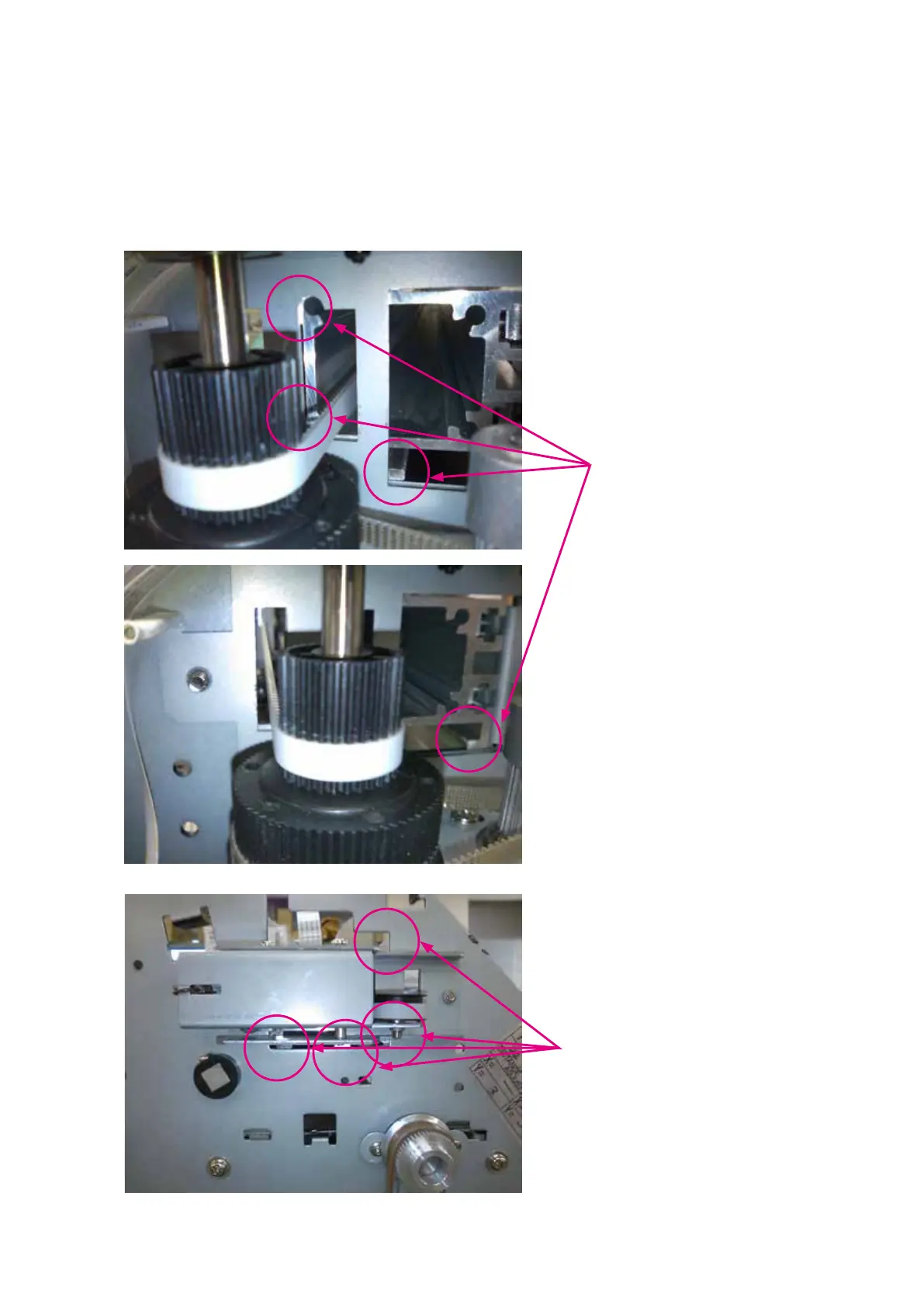

Thegapshouldnotbeat
theseareaswhentheYbaris
installed.
Thegapshouldnotbeat
theseareaswhentheYbaris
installed.
