CE5000-UM-251-9370 6-23
6 DISASSEMBLY AND REASSEMBLY
How to reinstall the Y-belt

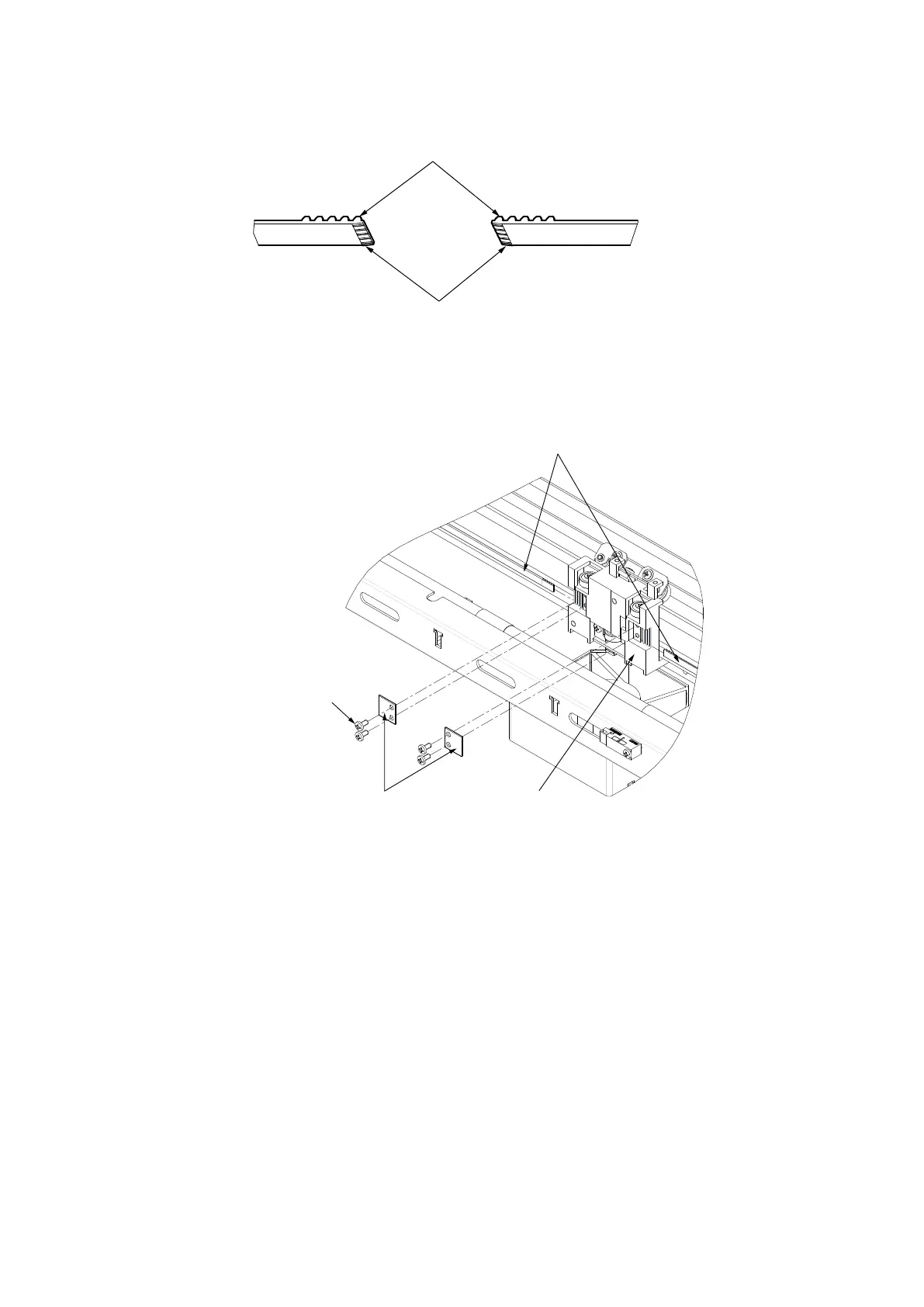

(1) Shave2to3mmoffbothendsoftheY-beltuntilthewirecomesoutasshownbelow.
Y-belt
Shave 2 to 3 mm off both ends of
the Y-belt until the wire comes out.
(2) HangtheY-beltonbothsidesofthepulley.
(3) AttachbothendsoftheY-belttotheY-slidersothatfournotchesoftheY-belttintotheY-slider,then
attachwiththeY-beltstopperplatesremovedinstep(6)intheprevioussubsection.
Y-belt
Y-slider
Y-belt stopper plate
M3L6 binding head screw
(4) Attachthepenblock(seeSubsection6.2.5).
(5) Reattachtheotherpartsinthereverseorderinwhichtheyweredetached.
