Setting the Tool
Set the type and offset value of the tool that is used in each of the tool condition numbers.
Next page
Operation
1

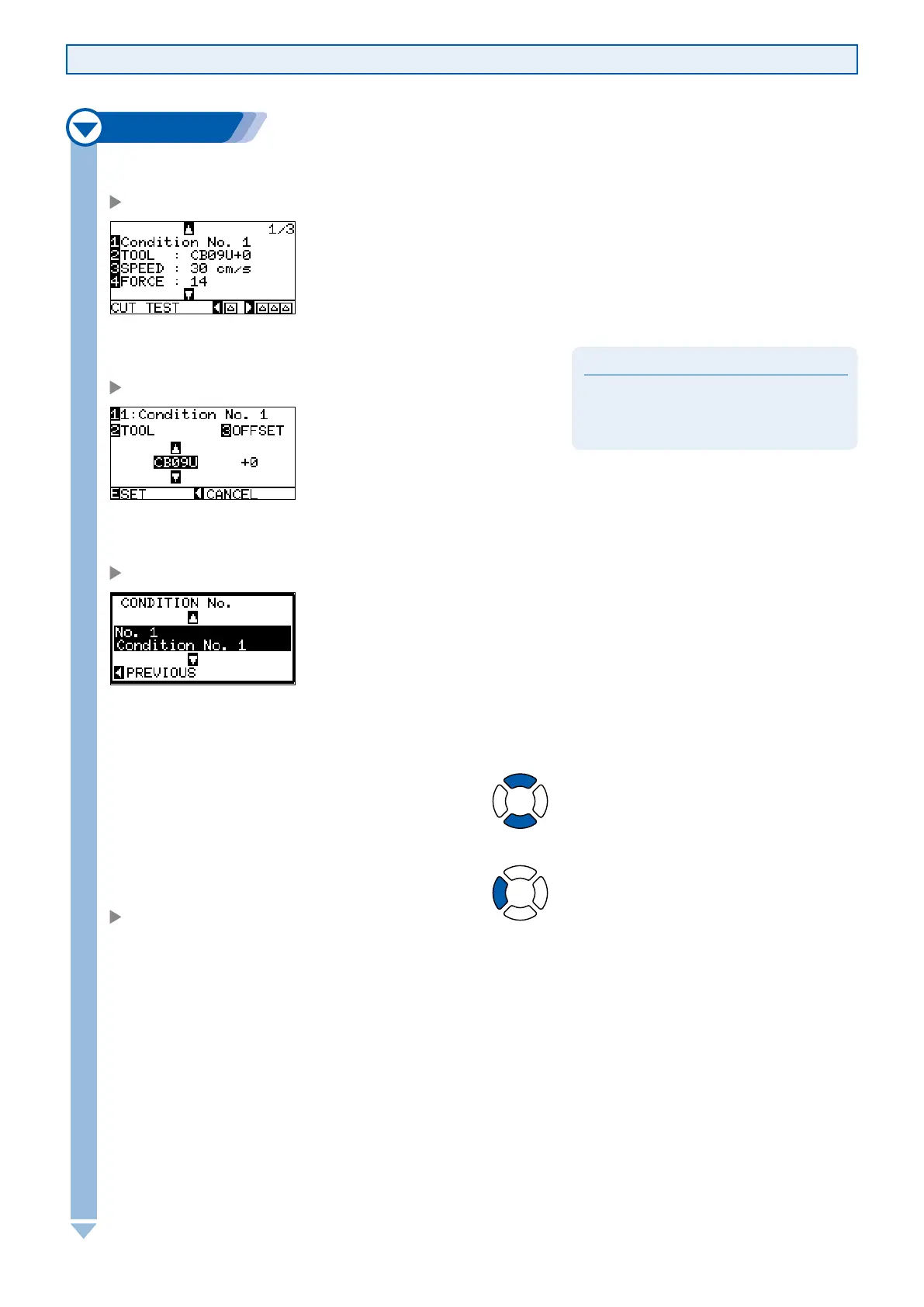

Press the [CONDITION] key in the default screen.
CONDITION setting screen (1/3) is displayed.
Supplement
It will return to CONDITION screen without
changing the settings when you press the
POSITION (
◄
) key (CANCEL).
2
Press the [2] key (TOOL).
TOOL setting screen is displayed.
3
Press the [1] key.
CONDITION No. selection screen is displayed.
* Display may vary depending on the selected condition number.
4
Press the POSITION (
▲▼
) key and select the condition number
(CONDITION No.).
POSITION
5
Confirm the setting and press the POSITION (
◄
) key
(PREVIOUS).
POSITION
CONDITION No. will get set and return to TOOL setting screen.
