10 / 24
S1032_mz-8P_V1.1sh
Description of the transmitter

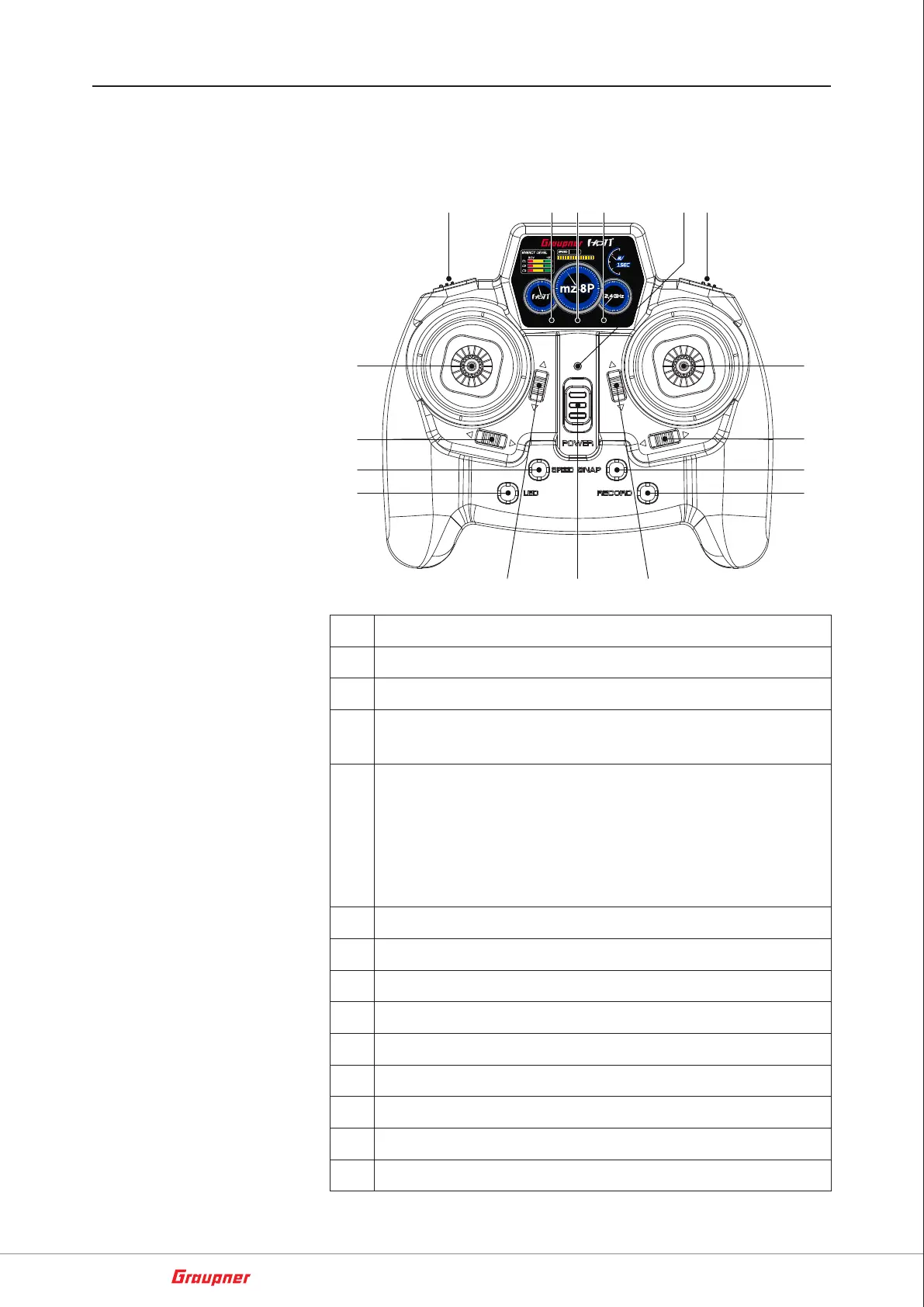

Transmitter front side
1
2
3 4 65
7
8
9
8
1 Motor "ON/OFF" switch
2 LED, yellow (motor-OFF function) LED ON: Motor OFF
3 LED, red (indicates camera recording) blinking: Recording
4 LED, green (if off indicates: Attitude mode, if on: Rate
mode)
5 LED, red
flashing: no connection to receiver
solid ON: correct connection to receiver
Blinking and 2x beeps: Flight battery under voltage
Blinking and 4x beeps: Transmitter power source under
voltage
6 "Attitude / Rate mode" pushbutton
7 Right-hand control stick
8 Trims
9 "Snapshot / C8-switching“ pushbutton
10 "Video ON/OFF" pushbutton
11 ON/OFF switch
12 "Binding / Video channel switching" pushbutton
13 "Control sensitivity" pushbutton
15 Left-hand control stick
