GRAUPNER HoTT mz-8P - Transmitter Back Side and Power; Transmitter Back Side; Transmitter Power Supply

11 / 24
S1032_mz-8P_V1.1sh

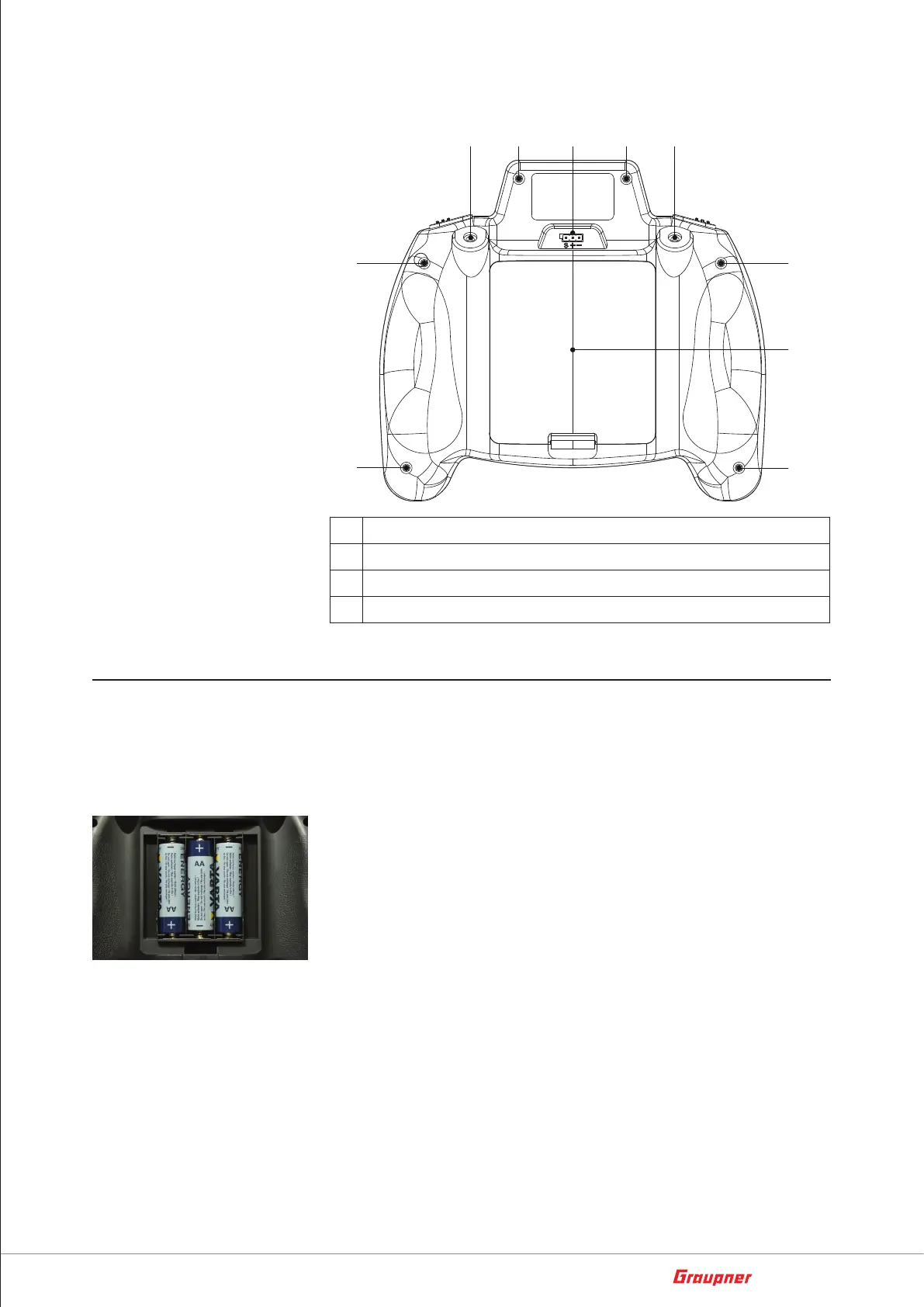

Transmitter back side
18
16
16
16
16
19
19
16
16
17
16 Case screws
17 Data socket
18 Battery case
19 Fixture points for attachment holder
Transmitter power supply
The mz-8P HoTT transmitter comes standard with three alkaline bat-
teries. (subject to modification).
Installing transmitter batteries
To insert the included transmitter batteries remove the battery case
cover on the back side of the transmitter. Insert the included batter-
ies in the holder paying attention to the correct polarity (see figure)
Alternatively, AA size NiMH batteries can be used at any time. How-
ever, these are always to be charged outside the transmitter.
The voltage level of the transmitter power supply is indicated by the
status LED during operation:
As soon as the power supply to the transmitter drops below 3.2 V,
the normally constant red status LED starts flashing in rapid succes-
sion. At the same time, acoustic warning signals sound in the form
of a 4x beep. At least now, the operation must be stopped immedi-
ately and the batteries have to changed or charged, only if recharge-
able batteries are used!
