Description of the transmitter

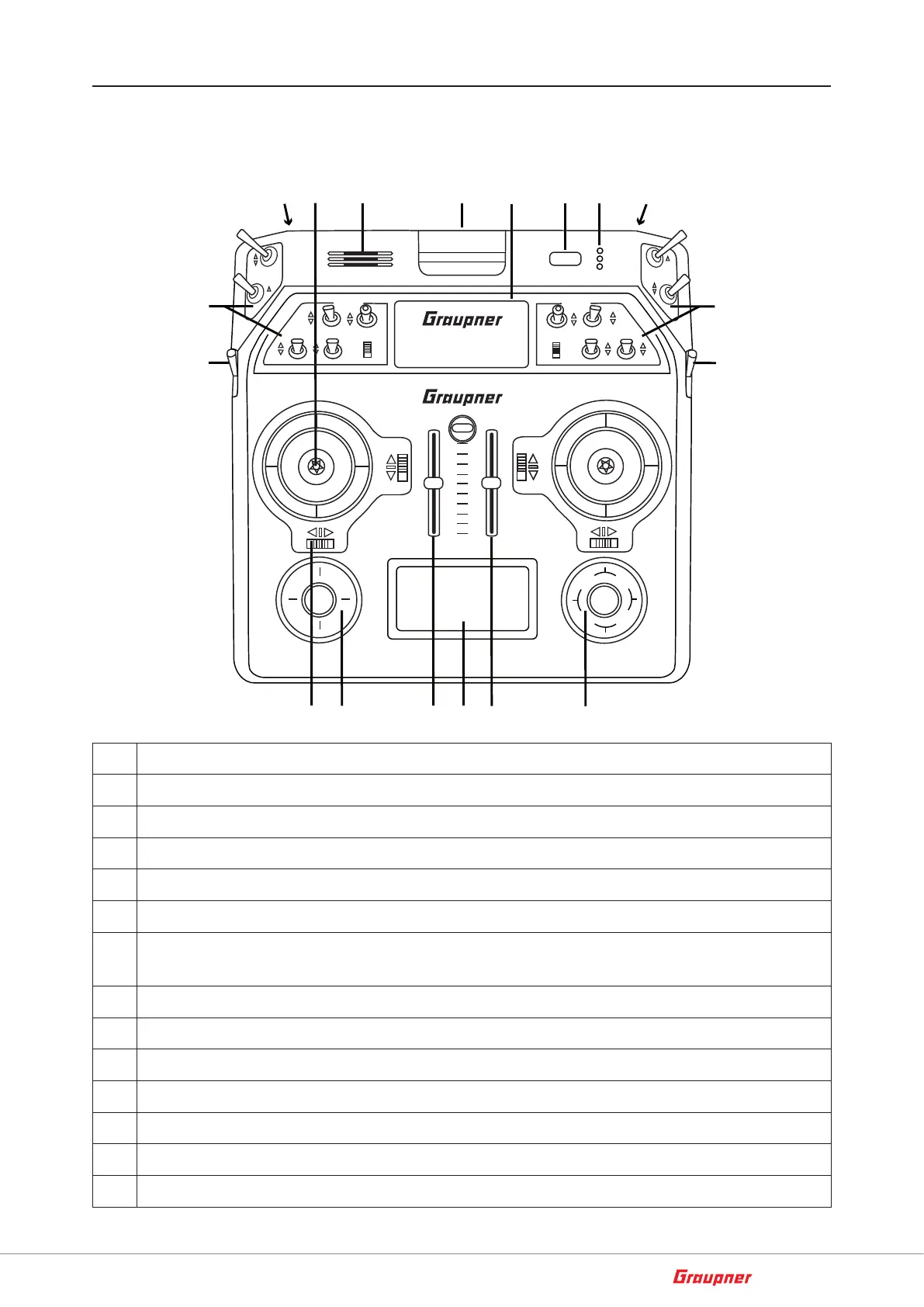

Control elements on the transmitter
4
3
1
5 6
14
7
8
2
9
10
11
10
12
13
7
1
11
MC-28
MC-28
MC-28
MC-28
esc
set
1 Connection sockets (protected by a cover)
2 Control sticks: 2 sticks for a total of 4 independent control functions
3 Speaker
4 Antenna (integrated in the case)
5 ON/OFF switch
6 LED indicators (battery, RF radiation, warning signals, charge indicator)
7 Places for switches and buttons
As standard are installed: 12 switches with different designs, 2 INC/DEC buttons
8 Right rotary control "SD1"
9 Right touch pad with four-way keys
10 Slider controls "SR1" and "SR2"
11 LCD
12 Left touch pad with four-way keys
13 Digital trim
14 Left rotary control "SD2"

GRAUPNER MC-28 Specifications

General

Proper use	Helicopter
Product type	Remote control
Product color	Black, Silver
Frequency band	2.4 - 2.484 GHz
Menu languages	DEU, DUT, ENG, ESP, FRE, ITA
Channels quantity	16 channels
Brand compatibility	Graupner
Throttle (TH) function	Yes
Compatible memory cards	MicroSD (TransFlash)
Number of memory records	120
Maximum operating distance	3000 m
Operating temperature (T-T)	-15 - 55 °C
Power consumption (charging)	400 mA
Operating voltage (max)	4.35 V
Operating voltage (min)	3.4 V

Weight and Dimensions

Depth	235 mm
Width	228 mm
Height	66 mm
Weight	1250 g
