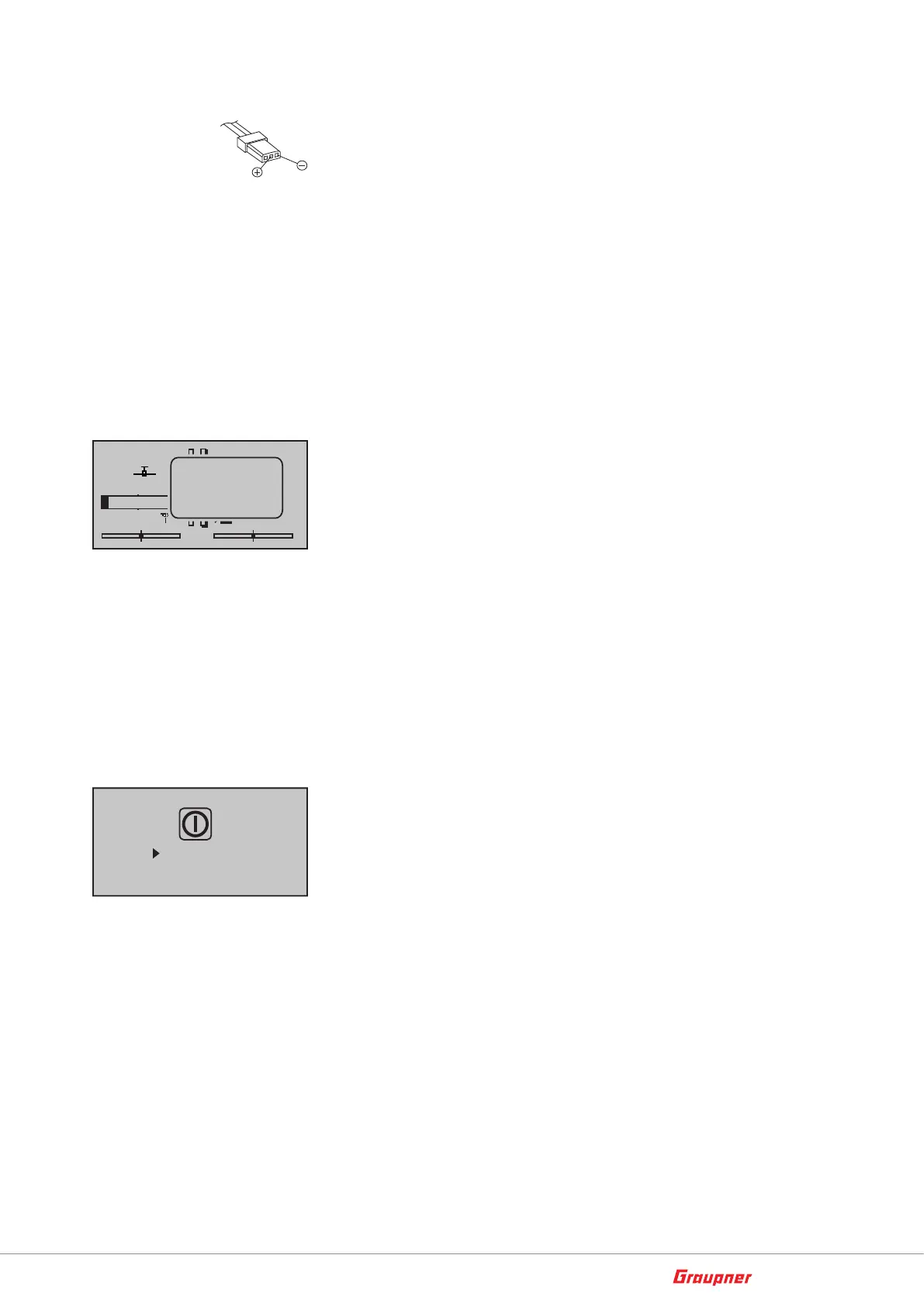

Inserting the transmitter battery
Connect the battery plug in the transmitter socket. Make sure
that the polarity is correct. Pay attention to the respective "+"
and "-" symbols near the socket.
Red= „+“ Black/brown = „-“
Place the battery into its compartment and close the cover.
2. Through the USB port by charging with USB cable
The transmitter battery can be charged by the current supplied
by the USB port (5 V/max. 2 A).
Connect the transmitter to a USB port in your PC using the
included micro USB cable or a USB net charger.
Low voltage warning
#01
3:21h
S
0:00 0
0
0.0V
3.5V
Mx
x
T
Batt. must
be re-
charged !!
The transmitter battery voltage should be monitored in the display
during operation. In case the voltage drops under a preset threshold,
standard setting 3,6 V, an acoustic warning signal is emitted and in
the display appears in a window "battery needs charging".
Now at the latest, stop operation and recharge the transmitter bat-
tery!
Battery use timer in the display
The battery use timer is shown in the lower left part of the display.
The battery use time is added at every use. After every charge the
timer is reset to "00:00". This happens only if the battery voltage
increases at least of 0,3V or if the battery is full.
Switch off the transmitter
Power off
Cancel
If you push on the POWER button, by switched on transmitter, for
more than 2 sec. a safety query appears (see image). Select the
desired option with one of the pouch pads (up or down) and push
the SET button.
This safety query avoids an accidental switch off of the transmitter
while in use.
Lithium battery
On the transmitter board there is a fixture for a replaceable lithium
battery of type CR 2032. This battery maintains the date and time
settings during a transmitter power supply outage.
