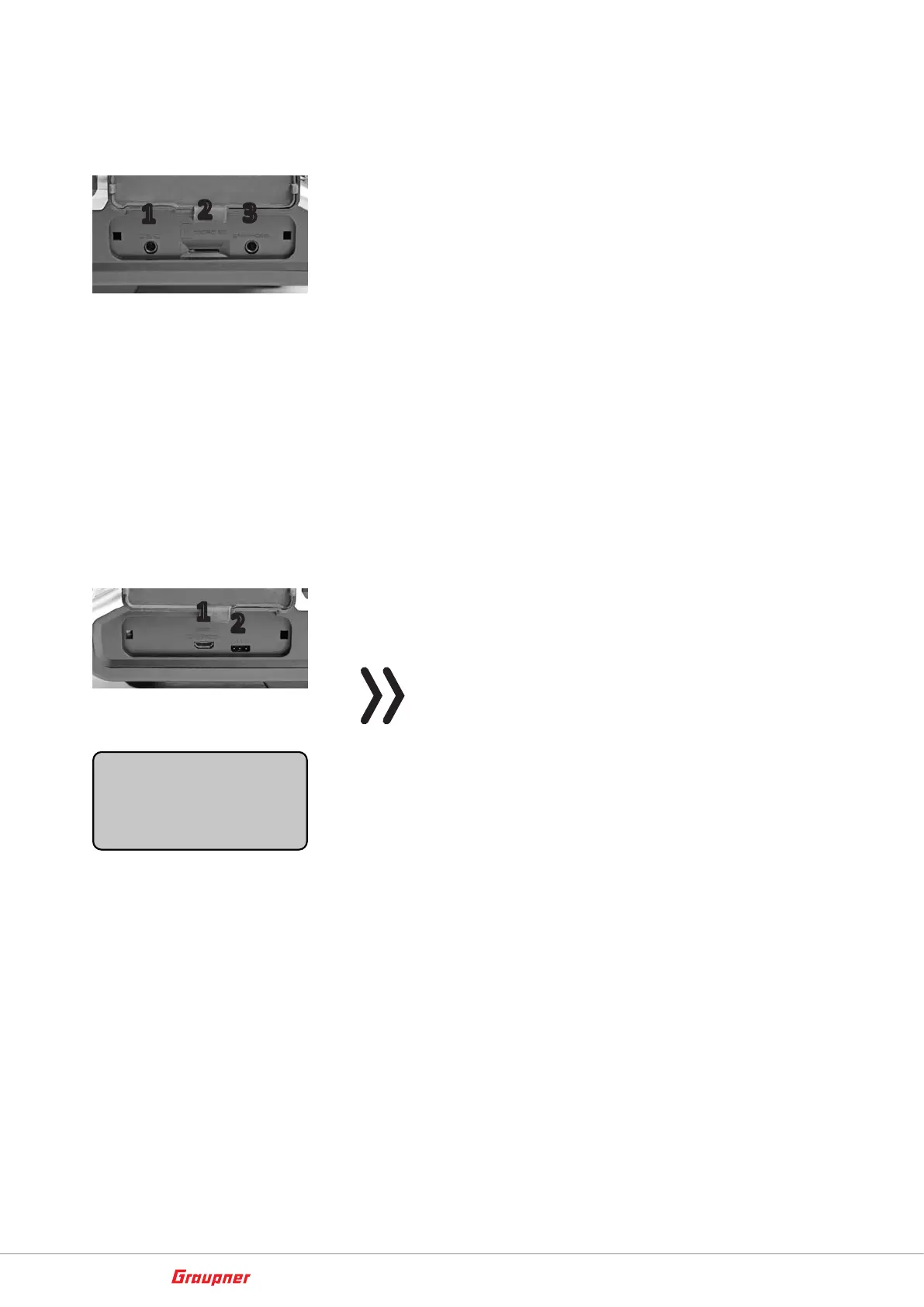

Interfaces
Provided connection
Left provided connections
1. DSC socket
On the left side is located the DSC socket. This socket allows the
trainer/pupil function and the use of flight simulators.
For more information on the DSC socket and the trainer/pupil
function see the section "DSC socket".
2. SD card slot
The card slot is suitable for micro SD memory card. For informa-
tion on removing and inserting the memory card, refer to the
section "memory cards".
3. Ear phones port
The ear phones port is suitable for a 3,5 mm jack. Though this
interface both acoustic signals and voice messages are emitted.
The volume can be controlled by "Voice volume" and "Signal vol-
ume" in the general settings.
Right provided connection
1. Micro USB port / battery charge and PC connection
Note
The micro USB socket is not suitable for flight simula-
tor connection.
As soon as you connect the USB cable to the transmitter a selec-
tion menu appears. Here you can set up the function of the micro
USB port.
PC COM Port - for updates
Mass storage memory - to access to the SD card
Battery charge - only battery charging
Battery charging
Through the micro USB port you can charge the transmitter bat-
tery. Use the included USB cable to connect the transmitter to a
suitable USB port and charge the transmitter battery. If the trans-
mitter is switched on the charge time is longer than if the trans-
mitter is switched off.
The maximum charge current is 2 A.
More information are available in the section "Charging the
transmitter battery".
1
2
3
1
2
USB connected
PC COM Port
Mass storage
Charge only

GRAUPNER MC-28 Specifications

General

Proper use	Helicopter
Product type	Remote control
Product color	Black, Silver
Frequency band	2.4 - 2.484 GHz
Menu languages	DEU, DUT, ENG, ESP, FRE, ITA
Channels quantity	16 channels
Brand compatibility	Graupner
Throttle (TH) function	Yes
Compatible memory cards	MicroSD (TransFlash)
Number of memory records	120
Maximum operating distance	3000 m
Operating temperature (T-T)	-15 - 55 °C
Power consumption (charging)	400 mA
Operating voltage (max)	4.35 V
Operating voltage (min)	3.4 V

Weight and Dimensions

Depth	235 mm
Width	228 mm
Height	66 mm
Weight	1250 g
