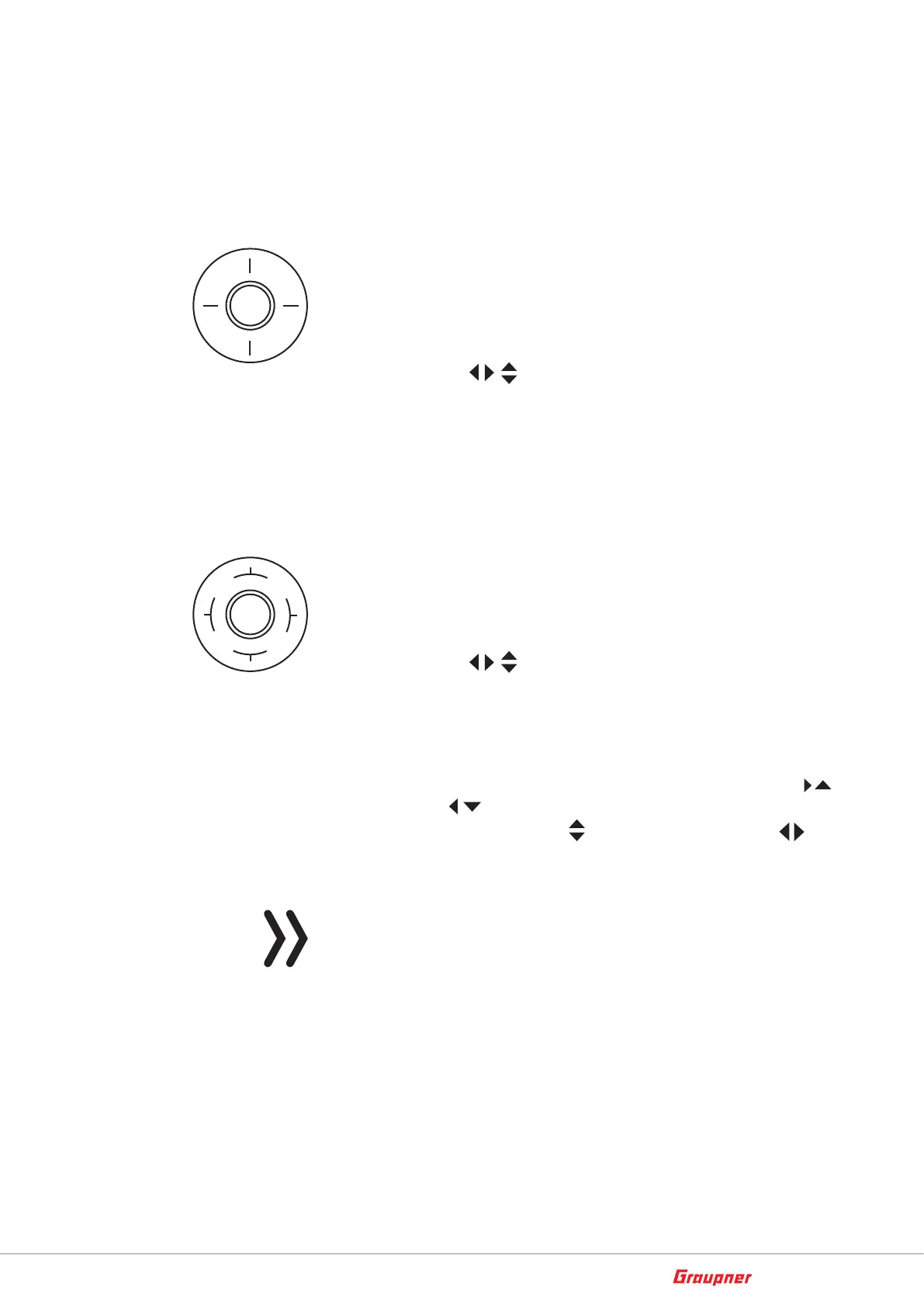

Key pad
The keypads of the mc-28 HoTT transmitter are touch-sensitive cap-
touch buttons. The buttons are operated by lightly touching them.
Keys left of the display
• ESC button
Pressing the ESC button brings about a stepwise return to func-
tion selection or back to the basic display. Any setting changed in
the meantime is retained.
Momentarily touching the ESC key for about 1 second while in
the base screen will open and close the Telemetry menu.
• Selection keys
Momentarily pressing one of these keys will cause analogous
paging in the given arrow direction through lists, e. g. through
the model selection list or the multi-function list or within menus
though the menu lines.
Keys to the left of the display
• SET key
1. Briefly pushing the SET key will cause a jump from the dis-
played base screen to the multi-function menu.
2. In the settings menu activate (confirm) the settings fields by
pressing the SET button.
• Selection keys
1. "Paging" through the multi-function menu and the menu
lines within the Basic Settings menu analogous to the arrow
keys of the left touch pad.
2. Select or set parameters in setting fields after they have been
activated by briefly touching the SET key, whereby the
keys and are used for the same corresponding functions.
3. By briefly pressing the
keys simultaneously or an
altered parameter value for the active entry field will again be
restored to its default value (CLEAR).
Note
In the event the touch pads do not exhibit any functionality imme-
diately after switching the transmitter off and then on again right
away, this is not a fault. Just switch the transmitter off again then
wait for several seconds before switching it on again.
