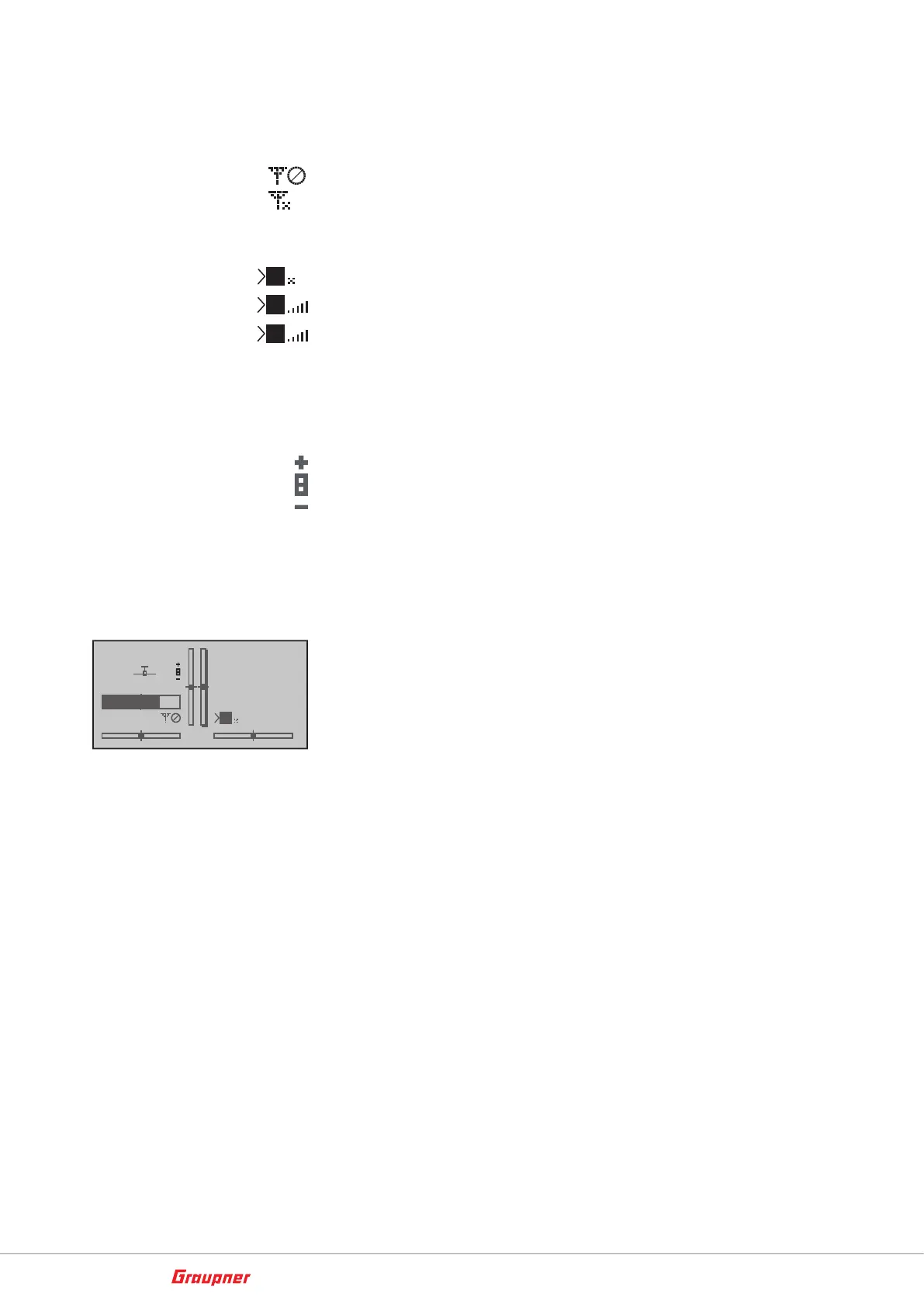

Symbols in the display
Telemetry symbols in the display
The active model memory has not yet been bound to a receiver.
Not flashing: RF transmitter function switched off.
Blinking antenna symbol: Last receiver bound to the active model
memory is inactive or out of reach
No telemetry signal to receive
Signal strength display of the model connection
Signal strength display of the connection with pupil transmitter in
the teacher transmitter display with wireless connection
Position indicator
INC/DEC buttons CTL 5 and 6
Once you activate one of the CTRL dials 5 + 6 in the middle of the
transmitter upper part, a symbol appears on the left near the verti-
cal trim position indicators in the lower display.
Contemporaneously the vertical position indicators change during
the operation from the trim position to the CTRL dials 5 + 6 indicat-
ing their actual position.
The left bar shows the position of the left INC/DEC CTRL dial 5 and
the right bar shows the position of the position of the right CTRL dial
6 (both horizontal bars show the trim position of the related sticks
trims).
Approx. 2 seconds after the end of the operation of both buttons,
the display shows again the actual trim position of the trims (eleva-
tor/nick and throttle/pitch) of the related sticks.
M
M
P
#01
2:22h
S
L
0:00.0
0:00.0
3.9V
M
HoTT

GRAUPNER MC-28 Specifications

General

Proper use	Helicopter
Product type	Remote control
Product color	Black, Silver
Frequency band	2.4 - 2.484 GHz
Menu languages	DEU, DUT, ENG, ESP, FRE, ITA
Channels quantity	16 channels
Brand compatibility	Graupner
Throttle (TH) function	Yes
Compatible memory cards	MicroSD (TransFlash)
Number of memory records	120
Maximum operating distance	3000 m
Operating temperature (T-T)	-15 - 55 °C
Power consumption (charging)	400 mA
Operating voltage (max)	4.35 V
Operating voltage (min)	3.4 V

Weight and Dimensions

Depth	235 mm
Width	228 mm
Height	66 mm
Weight	1250 g
