Sticks conversion
Neutralization
Both control sticks can be set from neutralizing to non-neutralizing.
Neutralizing step by step

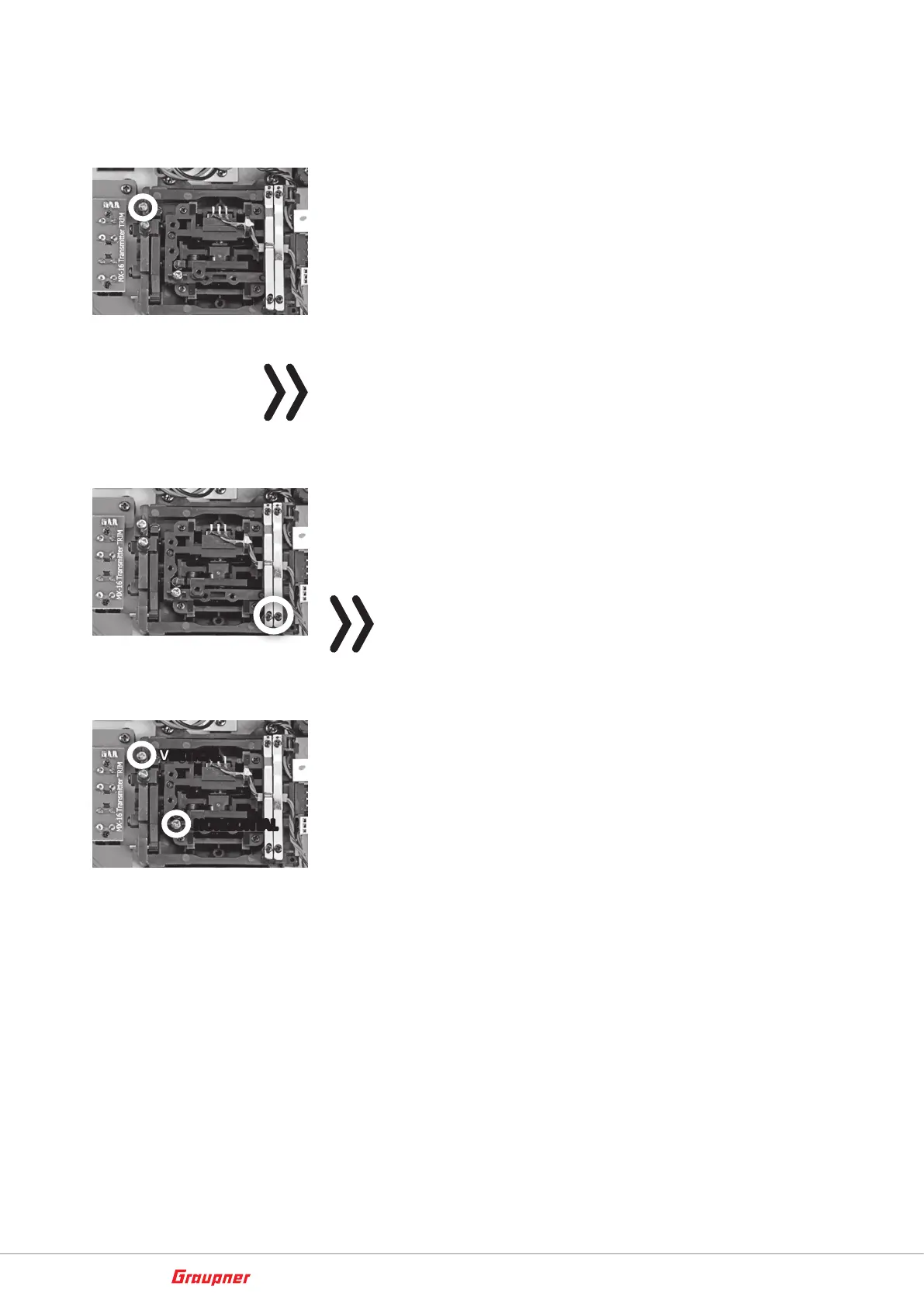

Locate in the left control stick gimbal the screw surrounded by a
white circle in the picture.
Turn the screw toward the inside of the transmitter until the relevant
control stick can move freely from stop to stop, or turn it outward
until the control stick resets itself independently.
Note
The right control stick gimbal is specular to the left one, so that here
the screw is located right under the middle.
Brake spring and ratchet
The outboard screw of the two marked in the figure adjust the brak-
ing force.
The inboard screw adjusts the strength of the ratchet for the respec-
tive control stick.
Note
The right control stick gimbal is specular to the left one, so
that here the screws are located left on the top side.
Control sticks centering force
The control sticks' restoring force can also be adjusted. The adjust-
ment is located next to the return springs.
By turning the respective adjust screw the spring force can be
adjusted.
Right turn = return harder
Left turn = return softer
Control sticks length adjustment
Length of both control stick can be adjusted. Hold down the bottom
half of the knurled grip, and loosen the screwed connection by turn-
ing the top part:
You can now lengthen or shorten the control stick by screwing it up
or down. Then clamp the top and bottom part of the grip by rotating
them against each other.
Analogously proceed with the exchange of the short sticks against
the supplied longer sticks.
