Description of transmitter: LCD screen and operating buttons
Battery operating time since
last charge process, in hr : min

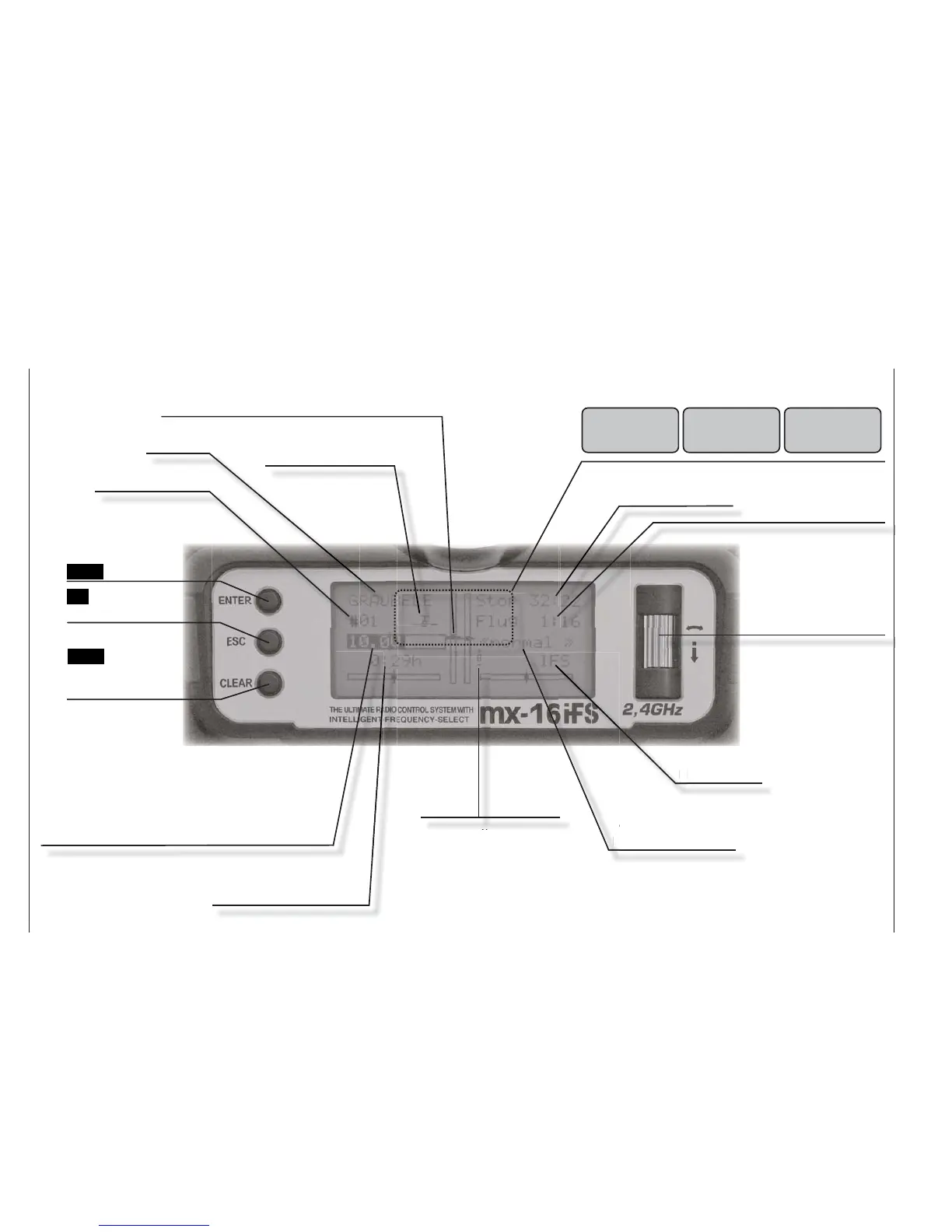

LCD screen and operating buttons
battery
needs
charging
throttle
too
high !
no
student
signal
Error in Trainer mode Throttle stick danger-
ously high
Operating voltage
inadequate
Flight timer in min : sec
(count-up / count-down)
Stopwatch in min : sec
(count-up / count-down)
Flight phase name
transition between fl ight
phases using switch
Modulation type
Rotary cylinder
(rotate and press to
alter values)
CLEAR =
erase or reset to
default value
Model name
Model memory 1 … 12
Battery voltage
(if voltage falls below a particular value a warning display
appears – see images at top right – and an audible warning
signal sounds)
Visual display of trim lever positions; alternatively – if the
rotary cylinder is held pressed in – display of the current
settings of the two INC / DEC buttons (CTRL 5 + 6).
M
F
tr
a
ph
Model type display
(fi xed-wing / helicopter)
ENTER = confi rm
ESC =
interrupt / back
If CTRL 5 or 6 is operated,
or the rotary cylinder is
pressed, the transmitter con-
trol position is superimposed
f CTRL 5 or 6 is opera
ated
