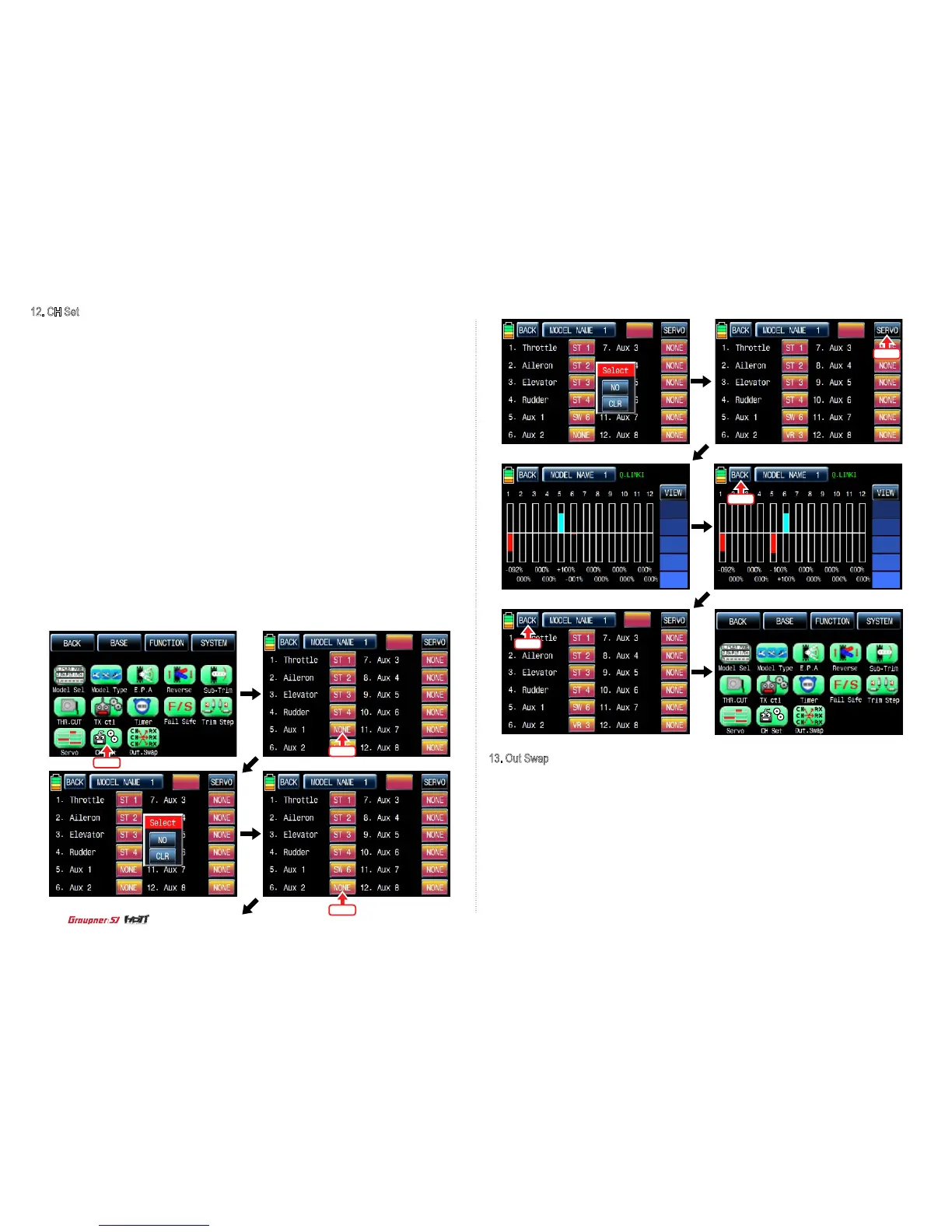

12. CH Set

It is used to set the channel of a transmitter. The basic setup of the transmitter’s channel is set

differently depending on 3 different types (“model type”, “wing type”, and “swash type”) and mz-

24 offers AUX channel to set the switch, volume, and side lever for your purpose. If the switch,

volume, and side lever are set separately to AUX channel, you are able to control the servo con-

nected to AUX channel. T:CO(Trim combin) icon is basically set and it gives the same trim values

to each Q.link(aile, elev, rudd). When T.CO(Trim combin) is touched, it is changed to T.SE(Trim

separate) ,so trim values can be set to Q.link separately. Please note that trim values which are

set in T:CO need to be set again when you choose T:SE. Touch “CH set” icon on base menu page

to call to “CH set” setup page. In “Ch Set” setup page, the basic functions of the transmitter which

is connected individually to every channel are displayed. AUX channels are displayed as NONE

when they are not connected to a servo. To connect AUX channel to a servo, touch “NONE” icon

to call the “select” message popup and move the switch, volume or side lever with your choice

then the selected switch, volume or side lever is set to AUX channel and the connected servo is

controlled. In “CH Set” setup page, there is T:CO(Trim combin) icon on the top. You can set trim

values separately or commonly to each Q.link. T:CO(Trim combin) icon is basically set and it gives

the same trim values to each Q.link(aile, elev, rudd). When T.CO(Trim combin) is touched, it is

changed to T.SE(Trim separate) ,so trim values can be set to Q.link separately. After CH Set setup,

Touch “SERVO” icon on the right to call the “SERVO VIEW” page, you may check the set value

of aileron, elevator, rudder and the operating status of servo connected AUX channel in this page

when you operate the assigned the switch, volume or side lever. Touch “BACK” icon to return the

previous page.

13. Out Swap

This function is used to edit the channel connection between transmitter and receiver. (It is

similar to TX OUT SET function in TX ctl, but Out Swap function is operated without trans-

mitting the setup data to a receiver unlike TX OUT SER function. Even if receiver channels

are more than transmitter channels, you are able to set receiver channel in “TX OUT SET”

function, but “Out Swap” function allows you to edit only twelve channels connected to the

transmitter.)

In base menu page, touch “Out.Swap” icon to call “Out. Swap” setup page. The channel order

of transmitter is set as the same as the order of receiver. Touch the channel number to activate

in blue and decide the desired channel number with “INC” and “DEC” button. Every channel is

set in the same way. After setup, touch “BACK” icon to return to the base menu page.

T:CO

Touch
