Gravely Pro-Turn 200 - Set Cutting Height; Open Fuel Valve

EN - 20
See Figure 20.
Set Backrest Angle
Rotate dial on left side of seat to adjust
backrest angle.
Set Armrest Angle
Turn angle adjustment knob clockwise to
raise the front of armrest or counterclockwise
to lower front of armrest.
SET CUTTING HEIGHT
See Figure 21.
1. Push mower lift pedal forward until
transport lock engages.
2. Insert adjustment pin through desired
setting in height-of-cut adjustment
system.
3. Push mower lift pedal slightly forward,
release transport lock and slowly release
mower lift pedal until it contacts
adjustment pin and stops.
OPEN FUEL VALVE
See Figure 22.
Turn fuel valve toward the left or right fuel
tank to use fuel from that tank.
Move valve to the off position when storing or
transporting unit.

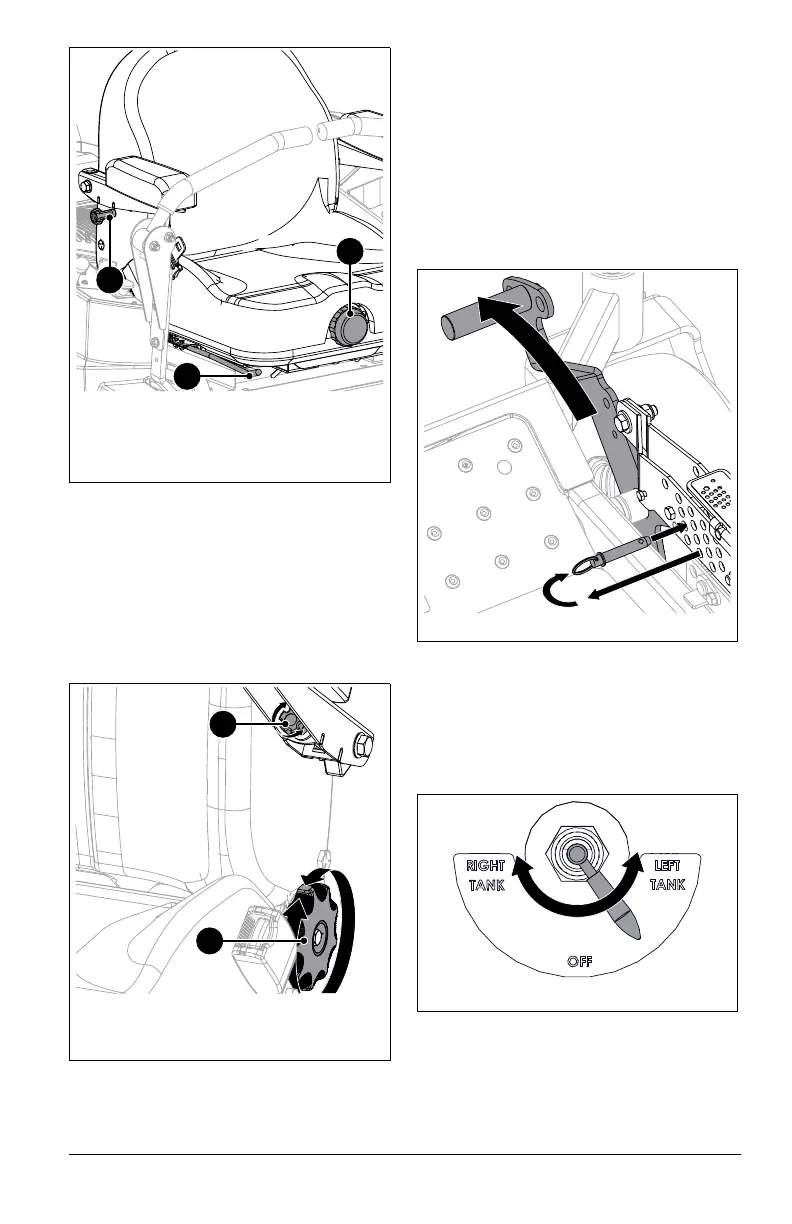

Figure 19
1. Seat Height Adjustment Dial
2. Seat Adjustment Lever
3. Lumbar Support Lever
1
2
3
Figure 20
1. Backrest Angle Dial
2. Armrest Angle Adjustment Knob
2
1
Figure 21
Figure 22
