6. Remove hardware retaining transaxle
skid and remove transaxle skid. See
Figure 52.
7. Remove transaxle drive belt from drive
system in the following order:
a. From right transaxle sheave.
b. From left transaxle sheave.
c. From clutch sheave.
Install Transaxle Drive Belt
See Figure 53.
1. Install transaxle drive belt to drive system
in the following order:
a. Around left transaxle sheave.
b. Around clutch sheave.
c. Around right transaxle sheave.
2. Reconnect idler spring hook to eye bolt.
Make sure belt has tension and is aligned
in all pulleys.
3. Reinstall clutch stop bolt and secure with
original hardware.
4. Reinstall clutch stop bracket and secure
with original hardware.
5. Return seat to operating position.
6. Reinstall PTO belt. See Install PTO Belt
on page 36.
7. Reinstall transaxle skid and secure with
original hardware.
ADJUST ANTI-SCALP ROLLERS
See Figure 54.
The anti-scalp rollers are set at the factory for
typical mowing height, but can be adjusted for
high or low cutting conditions. Make sure all
rollers are set to the same height.
1. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
2. Remove hardware securing anti-scalp
rollers to deck and remove rollers.
3. Position rollers as desired:
• To mow on uneven terrain, set rollers in
the lowest position on the bracket.
• To mow on even terrain, set rollers in
the highest position on the bracket.
4. Reinstall original hardware and tighten.

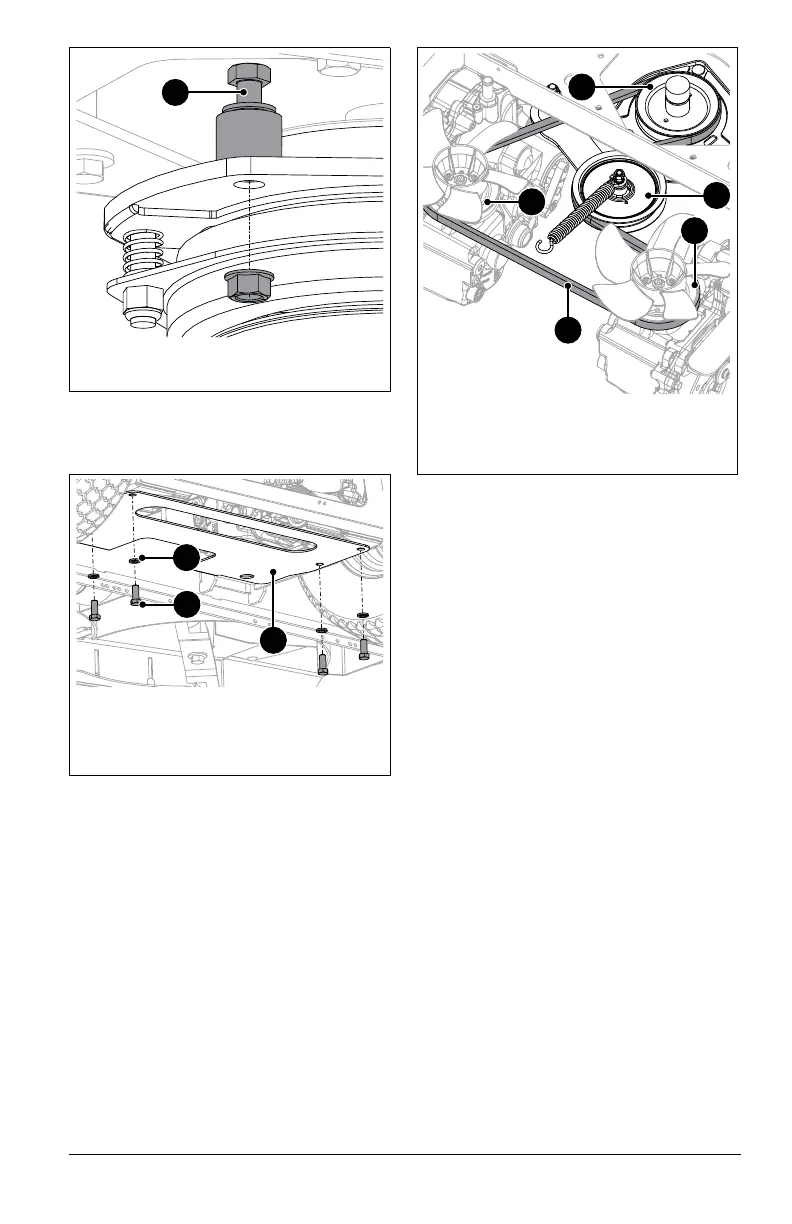

Figure 51
