5. Charge battery following battery
manufacturer’s instructions.
6. Reinstall battery. See Install Battery on
page 28.
Jump Starting
Gravely does not recommend jump starting
your unit. Jump-starting can damage engine
and system components. Refer to engine
manual for details.
CHECK FASTENERS
Check for loose hardware and tighten if
necessary.
LUBRICATE UNIT
1. Apply oil to all pivot points and pin
connections.
2. Pump grease into grease fittings.
LUBRICATE CASTER FORK
BEARINGS
See Figure 31.
1. Stop engine, remove key and wait for all
moving parts to stop and for hot parts to
cool.
2. Engage parking brake.
3. Remove dust cap.
4. Pump grease into the fitting until grease
appears at the top of the upper bearing.
5. Reinstall dust cap.
LUBRICATE CASTER WHEEL
BEARINGS
See Figure 32.
1. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
2. Engage parking brake.
3. Support unit so front wheels are off the
ground.
4. Remove wheel from fork.
5. Remove end caps from wheel hub.
6. Pump grease into fitting until grease
squeezes through the seal in the wheel
hub.
7. Wipe away excess grease.
8. Reinstall end caps onto wheel hub.
9. Reinstall wheel into fork and lower unit to
ground.
IMPORTANT: After tightening bolt, tire should
not have any side-to-side play. Tighten bolt
until there is a slight amount of drag on the
wheel bearing. The wheel should not spin
freely.

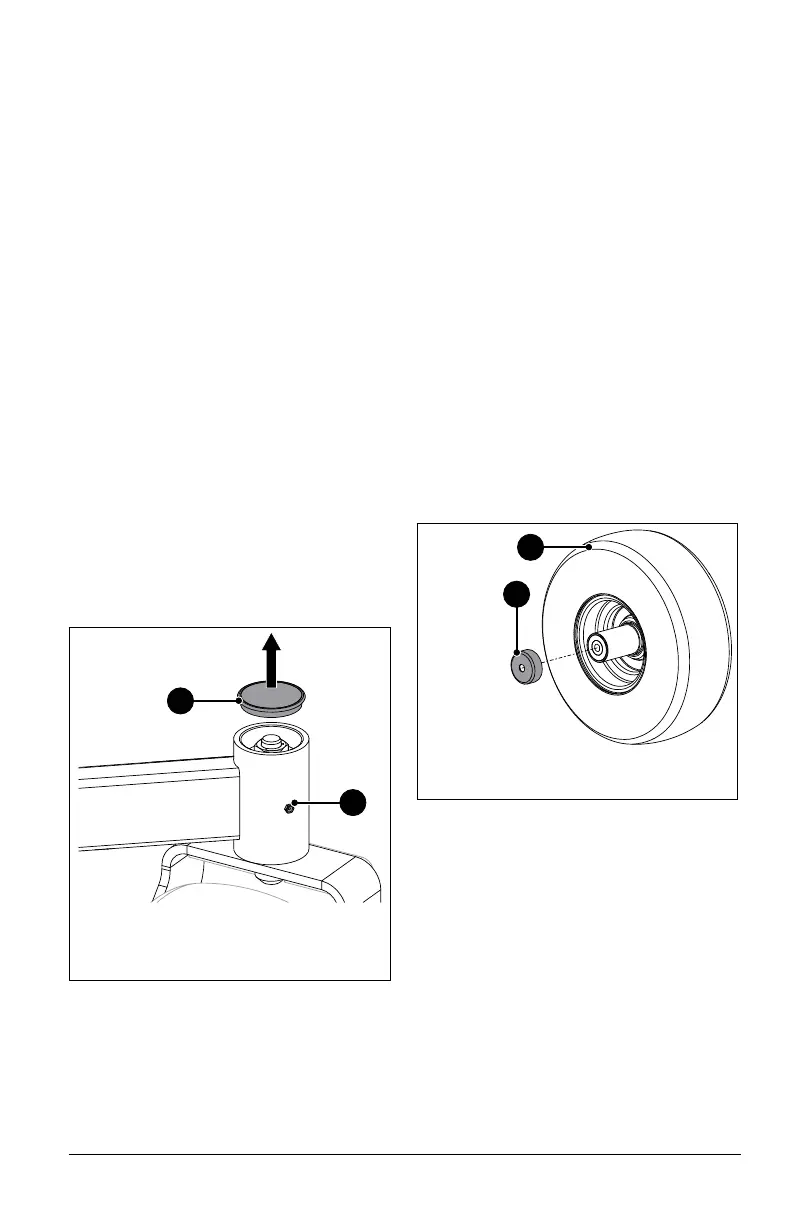

Figure 31
1. Dust Cap
2. Grease Fitting
1
2
Figure 32
1. Caster Wheel
2. End Cap
1
2
