Gravely Pro-Turn 200 - Replace Transaxle Drive Belt

EN - 36
Install PTO Belt
1. Install PTO belt around clutch sheave at
rear of unit.
See Figure 48.
2. Install PTO belt around top groove of split
pulley at deck center and around left
spindle pulley.
3. Align belt with idler pulleys.
4. Reinstall idler spring hook around anchor
bolt to apply tension to belt.
IMPORTANT: Make sure belts are correctly
aligned in pulleys.
5. Reinstall belt covers and secure with wing
knobs.
6. Close footboard.
REPLACE TRANSAXLE DRIVE
BELT
Remove Transaxle Drive Belt
1. Remove PTO belt from clutch. See
Remove PTO Belt on page 34.
2. Rotate seat forward. See Service Position
on page 23.
3. Slowly remove spring hook from eye bolt
to release transaxle idler belt tension.
See Figure 49.
4. Remove hardware securing clutch stop
bracket to frame and remove bracket.
See Figure 50.
See Figure 51.
5. Remove clutch stop bolt.
CAUTION: Use care when
releasing idler spring tension.
Keep body parts away from
idlers when performing this
operation.

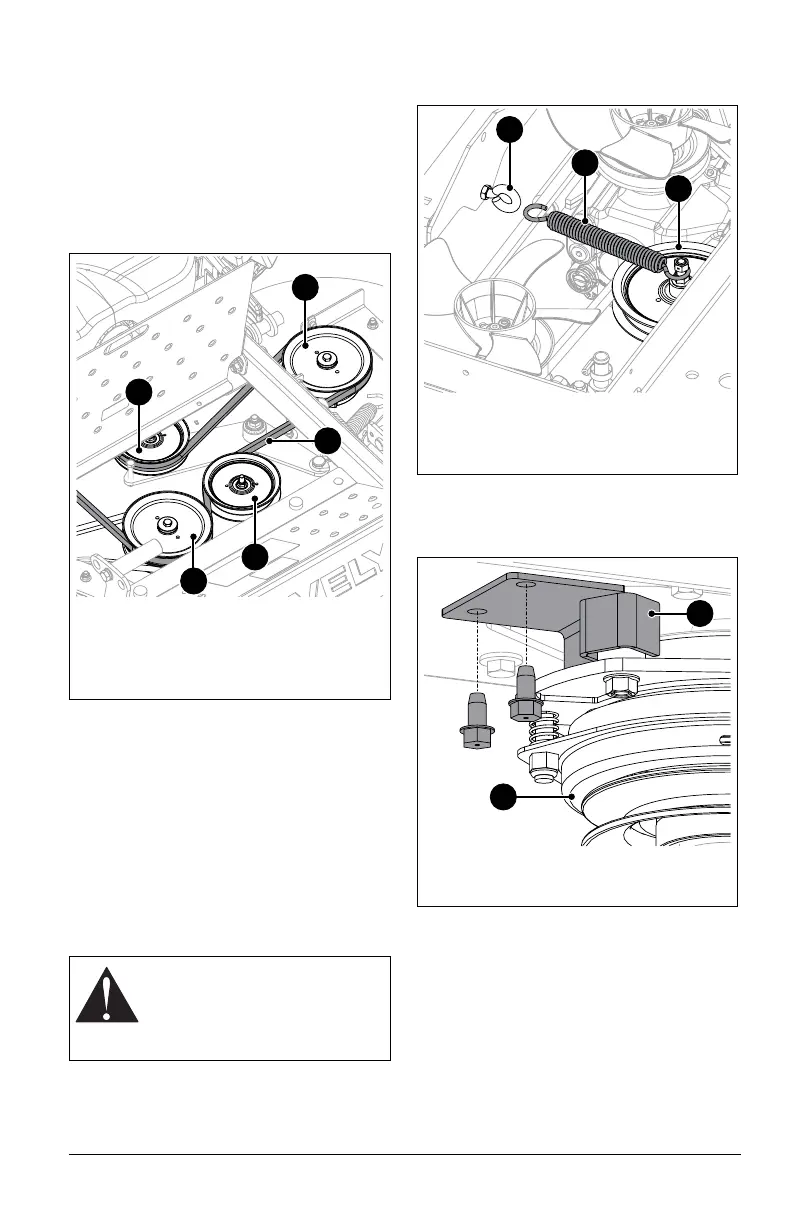

Figure 48
1. Idler Pulley
2. Split Pulley
3. Left Spindle Pulley
4. PTO Belt
1
1
2
4
3
Figure 49
1. Transaxle Idler
2. Spring
3. Eye Bolt
1
2
3
Figure 50
1. Clutch Stop Bracket
2. Clutch
1
2
