Gravely Pro-Turn 200 - Page 37

EN - 35
Remove Mower Drive Belt
See Figure 46.
1. Slowly remove spring hook from anchor
bolt to release tension from belt idler.
2. Remove mower drive belt.
Install Mower Drive Belt
See Figure 47.
NOTICE: Mower drive belt MUST be installed
before PTO belt.
1. Install mower drive belt around bottom
groove of split pulley at deck center and
around bottom groove of right spindle
pulley.
2. Reinstall idler spring hook around anchor
bolt to apply tension to belt.

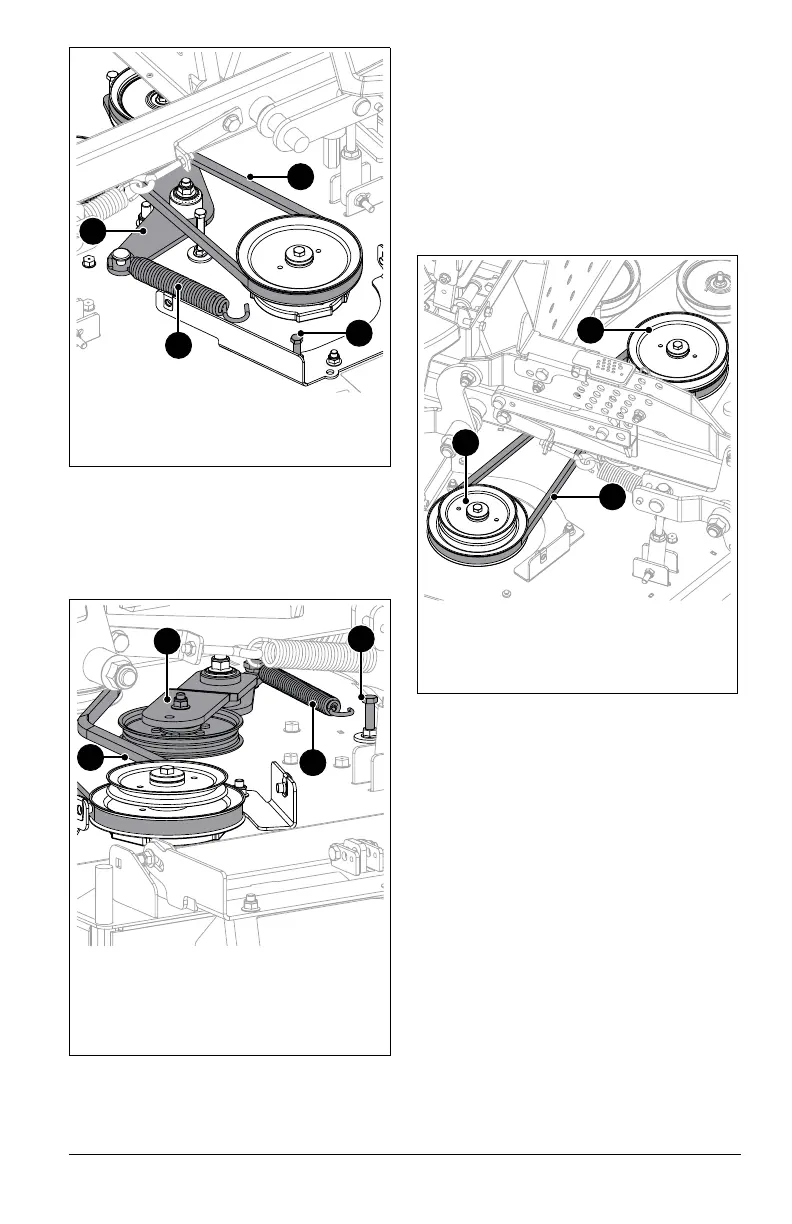

Figure 45
1. Spring
2. Anchor Bolt
3. PTO Belt Idler
4. PTO Belt
1
2
4
3
Figure 46
1. Spring
2. Anchor Bolt
3. Mower Drive Belt Idler
4. Mower Drive Belt
1
2
3
4
Figure 47
1. Split Pulley
2. Right Spindle Pulley
3. Mower Drive Belt
1
2
3
