Gravely Promaster 460 - SECTION 3: ASSEMBLY; DEALER PREPARATION; Tools Required; Package Contents

12 1/02
DEALER PREPARATION
Customer Note – Your GRAVELY Dealer is expected to
complete these preparation steps and review important
information, including this manual, with you before or
upon delivery of unit or attachment.
The preparation information is included here so that you
and your dealer may review it together.
Tools Required
15/16” and 1/2” Sockets
Open End Wrench - 1/2”
Package Contents:
Promaster 460, steering wheel, seat assembly, hardware
and literature packages.
Assembly
1. Remove shrink wrap and packaging materials.
2. Push unit off of container onto a level surface.
IMPORTANT: Never push or pull (tow) the unit with
another vehicle. Use a truck or trailer when transporting
or transmission damage can occur.
3. Apply a film of grease to steering wheel serrations
before installation.
4. Assemble hardware and steering wheel on to
steering wheel shaft. Torque nut to 25-30 ft.lbs.
(Figure 4).
WARNING
ELECTRIC SHOCK can result in death or serious
injury and/or damage to equipment.
DO NOT remove wire from spark plug while engine is
running.
H
ardw
are
Pack
L
ite
ra
tu
re
P
a
c
k

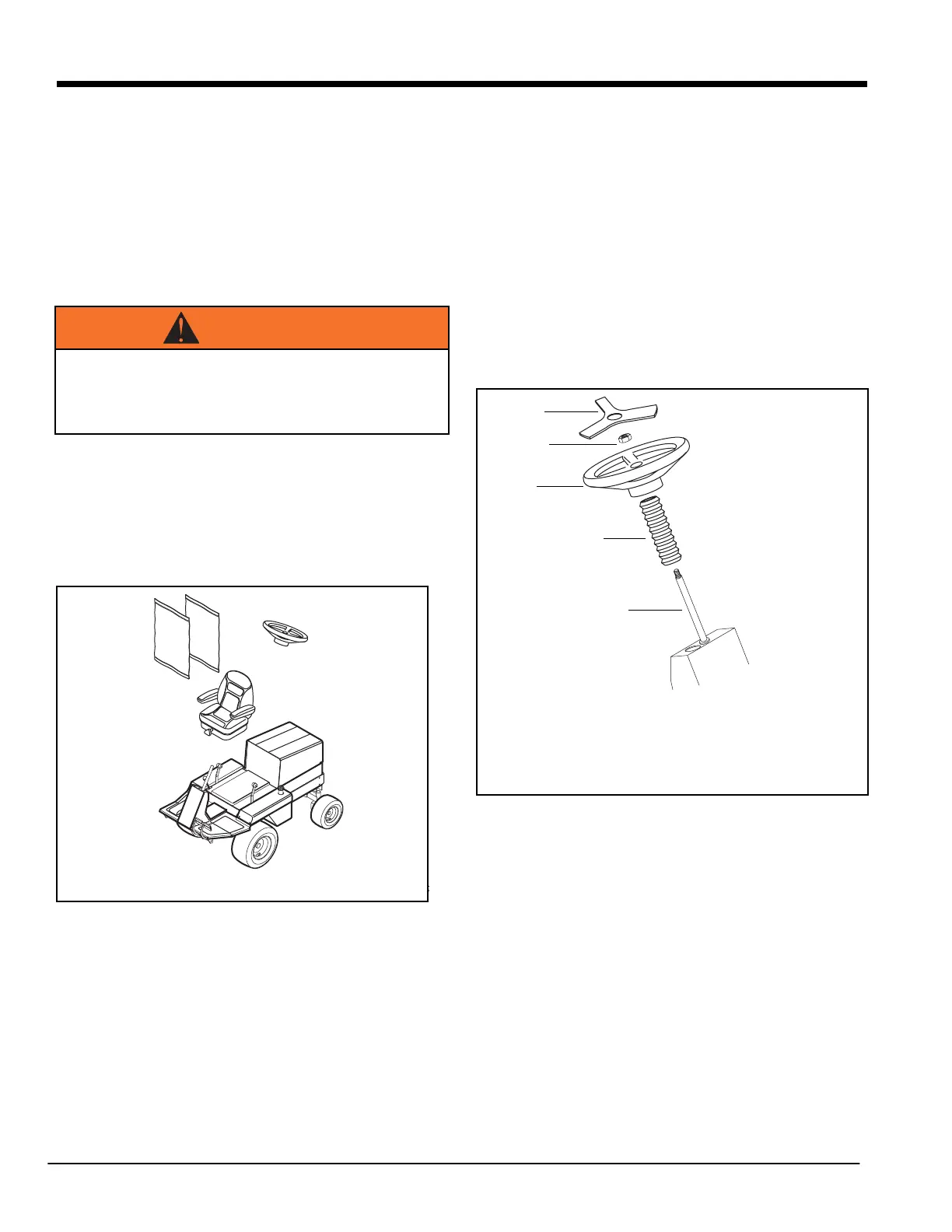

Steering Wheel
Promaster 460
Seat Assembly
Figure 4
OF0
7
2
1
3
4
5
Figure 5
OF1990
1. Steering Wheel Insert
2. Lock Nut
3. Steering Wheel
4. Bellows
5. Steering Wheel Shaft
SECTION 3: ASSEMBLY
