Jaguar II User Manual
Installation and Operation of Sign Cutting Plotter 2-11

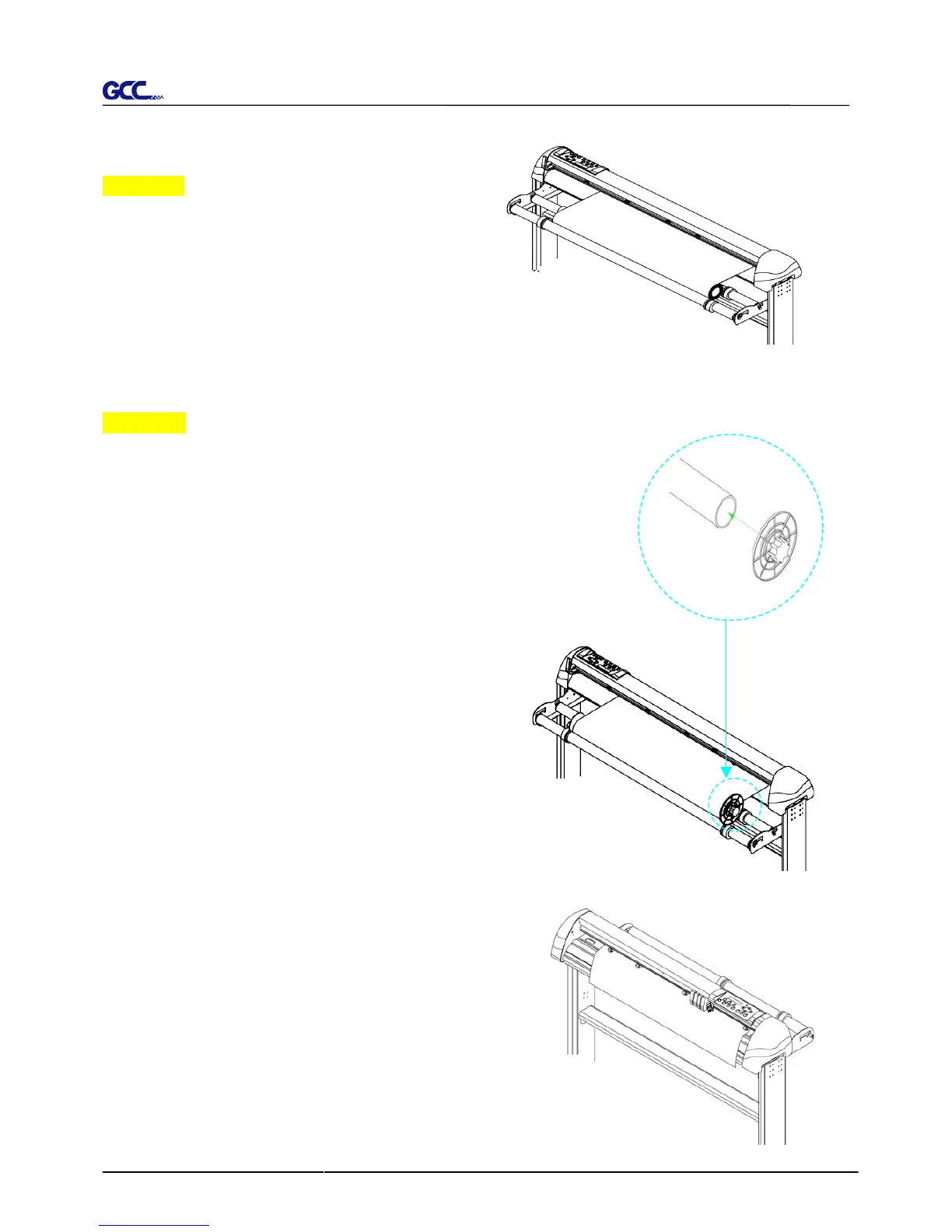

Figure 2-22
2.
Option A (Recommended)
Insert the two roll holders into the roll media
support set then place the roll media directly
between the two roll holders (Figure 2-22).
Option B (Use the media flanges)
Insert a roll media flange at the end of each roll media and tighten
the thumbscrew until the roll media is firmly gripped (see Figure
2-23
).
Then put the roll media on the roll holders. Adjust
the position of the roll media ensure that media
flanges are able to run in the grooves of media
guide bushes. (Figure 2-24)
3.
Load the media on the platen. Please refer to “2.4.1.
Loading the sheet media”. After loading the roll media,
flatten the media on the platen and hold the front edge of
the roll media firmly (Figure 2-25).
Figure 2-23
Figure 2-25
Figure 2-24
