2.6 Tracking Performance
In order to achieve the best tracking performance for a long plot, we recommend some
significant media loading procedures described as follows:
1. If the media length is less than 4 m, leave the margin of 0.5mm—25mm in the left and right
edges of the media (see Figure 2-27).
2. If the media length is greater than 4m, leave at least 25mm margin on the left and right
edges of the media (see Figure 2-28).
Please refer to the paragraph “Important Information” at the beginning of the book.

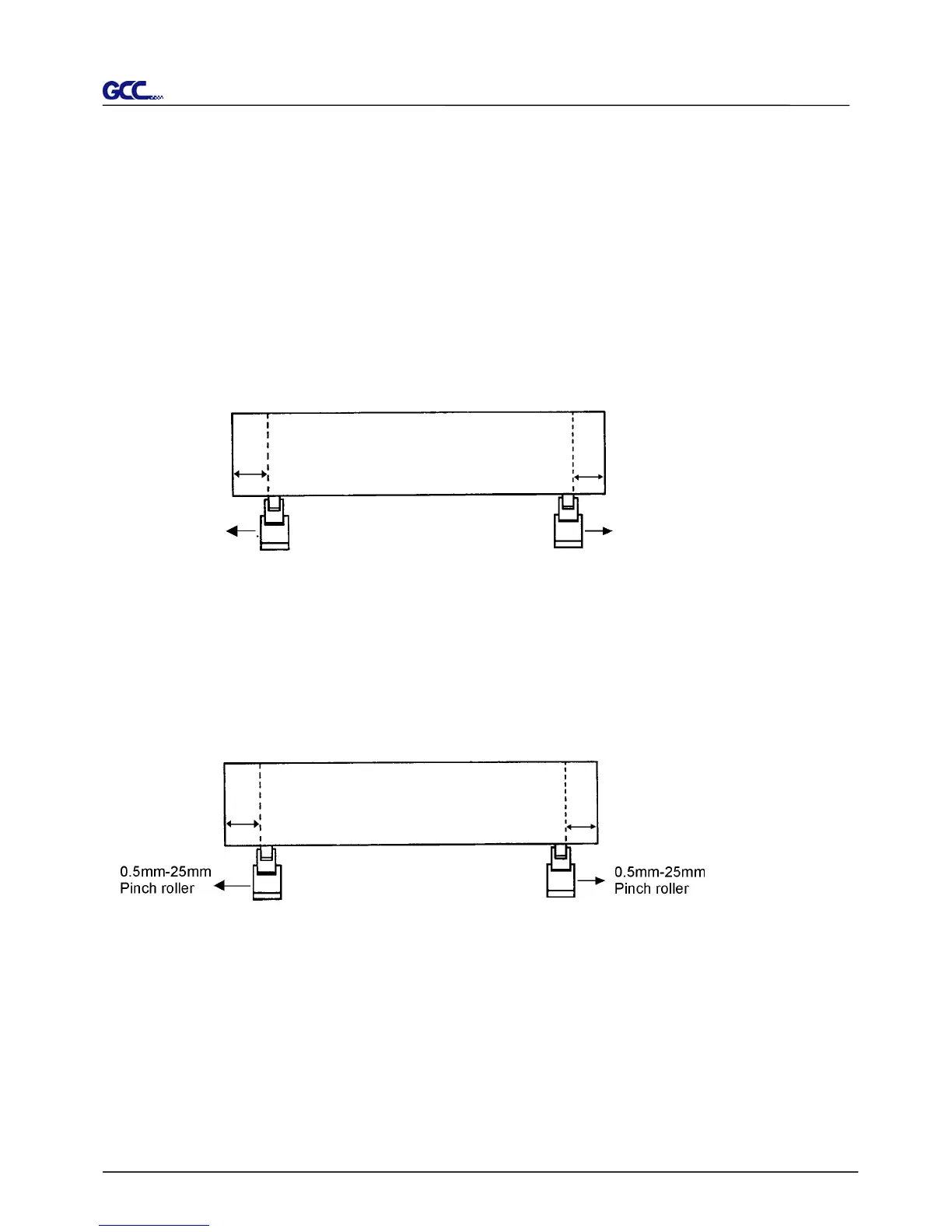

Figure 2-27
Figure 2-28
Pinch roller
Pinch roller
0.5mm - 25mm
0.5mm - 25mm
> or = 25mm
> or = 25m
