Jaguar II User Manual
Installation and Operation of Sign Cutting Plotter 2-7
2.3 Blade Installation

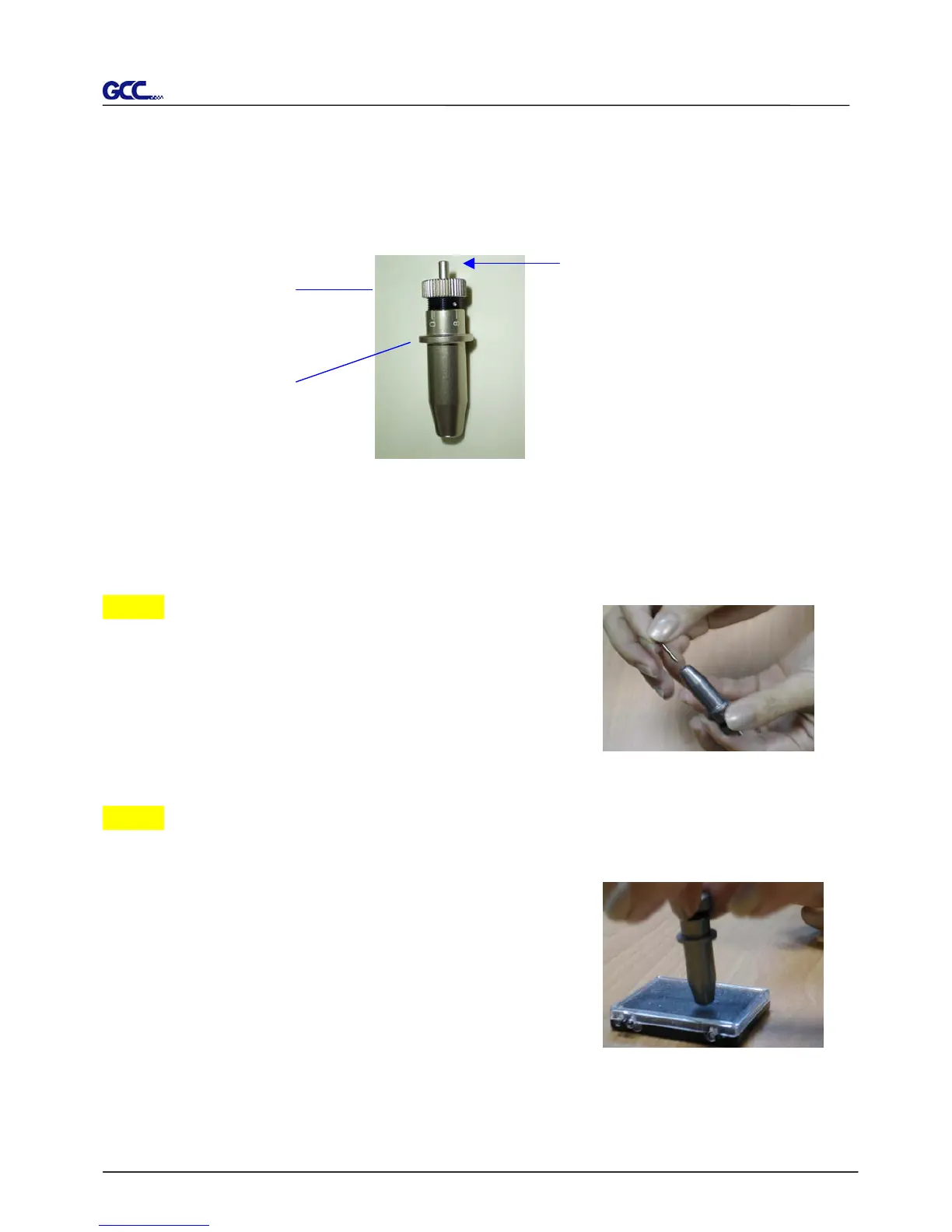

Figure 2-10 is the illustrator of the blade holder. Insert a blade into the bottom of the blade
holder and remove the blade by pushing the pin. Make sure that your fingers are away from
the blade tip.
Step 1
Install blade (Figure 2-11).
Step 2
Push the blade to the bottom of the blade holder. (Figure 2-12).
Figure 2-10
Pin
Outward ring
Adjustment depth knob
Figure 2-11
Figure 2-12
