Jaguar II User Manual
Installation and Operation of Sign Cutting Plotter 2-10
Step 5
Turn on the power, the tool carriage will measure the size of the media automatically. And the
plotting cutter begins to work.
Note:
1. Always adjust the position with the pinch roller raised.
2. Move the pinch roller by applying force at the rear portion of the pinch roller support.
3. Do not move it by holding its front rubber roller (Figure 2-20).

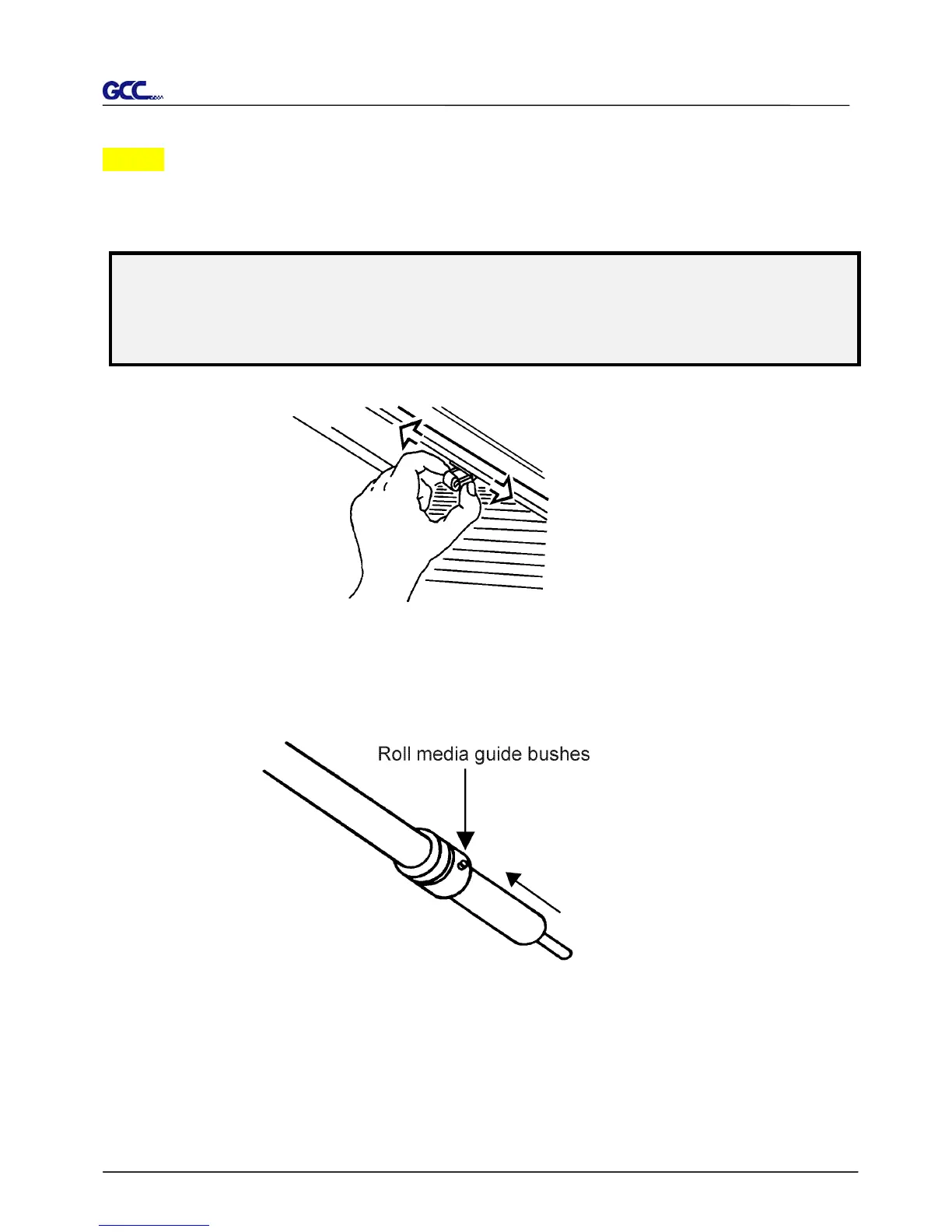

2.5.2 Loading the Roll Media
1. Put the roll media guide bushes on two roll holders (Figure 2-21).
Figure 2-20
(X)
Incorrect
Figure 2-21
