Gree DC Inverter Multi VRF User Manual

DC INVERTER MULTI VRF INSTALLATION
114

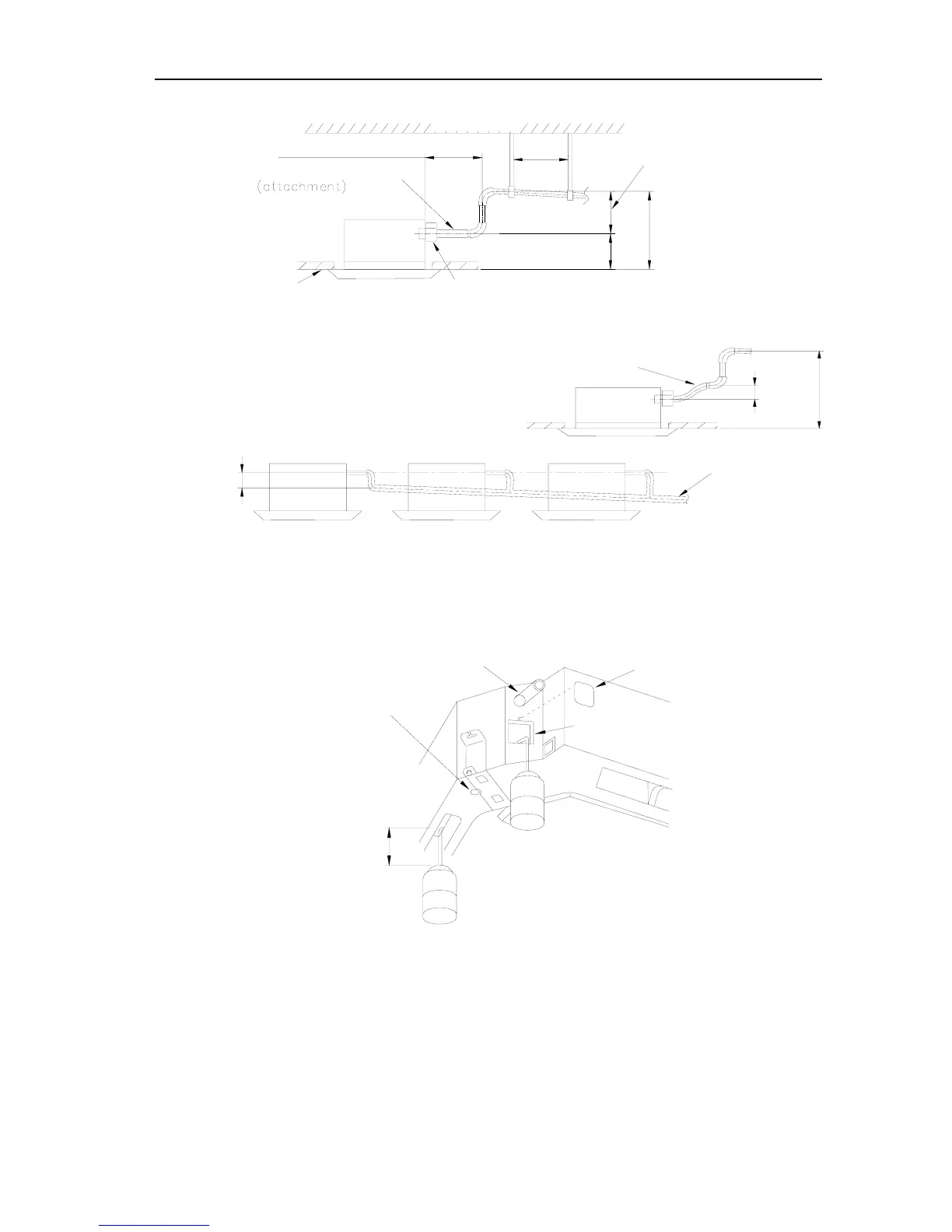

right angle with the unit, and distance to unit should not be beyond 300mm.
below500mm
.
Within 300mm
Drain raising
hose
.
220mm
Ceiling
Clamp(attachment)
Hoisting stand
Roof
Drain hose
1-1.5m
below280mm
Instruction
☆ The slant gradient of the attached drainage
hose should be within 75mm so that the drain
hole doesn’t has to endure the unnecessary
outside force.
☆ Please install the drainage hose according to
the following process if several drain hoses
connected together.
The specs of the selected join drain hose should fits the running capacity of the unit.
.
Above100mm
T-tie in join drain hose
2 Check the smoothness of drain after installation.
☆ Check the drain state by immitting 600cc water slowly from the outlet or test hole.
☆ Check the drain in the state of refrigerating after installation of the electric circuit.
[Way of immiting]
.
Drain hose
Test hole cover
Test hole
Above100mm
Drain vent for repair use (plastic
stopper is included) (drain the water
in waterspout by this outlet vent)
<Immiting water from the outlet
vent terminal
>
Plastic water pot (The length of the
pipe should be about 100mm.)
< Immiting water from the rest hole>
below500mm
.
below75mm
Drain hose(attachment)
