DC INVERTER MULTI VRF PRODUCT
38

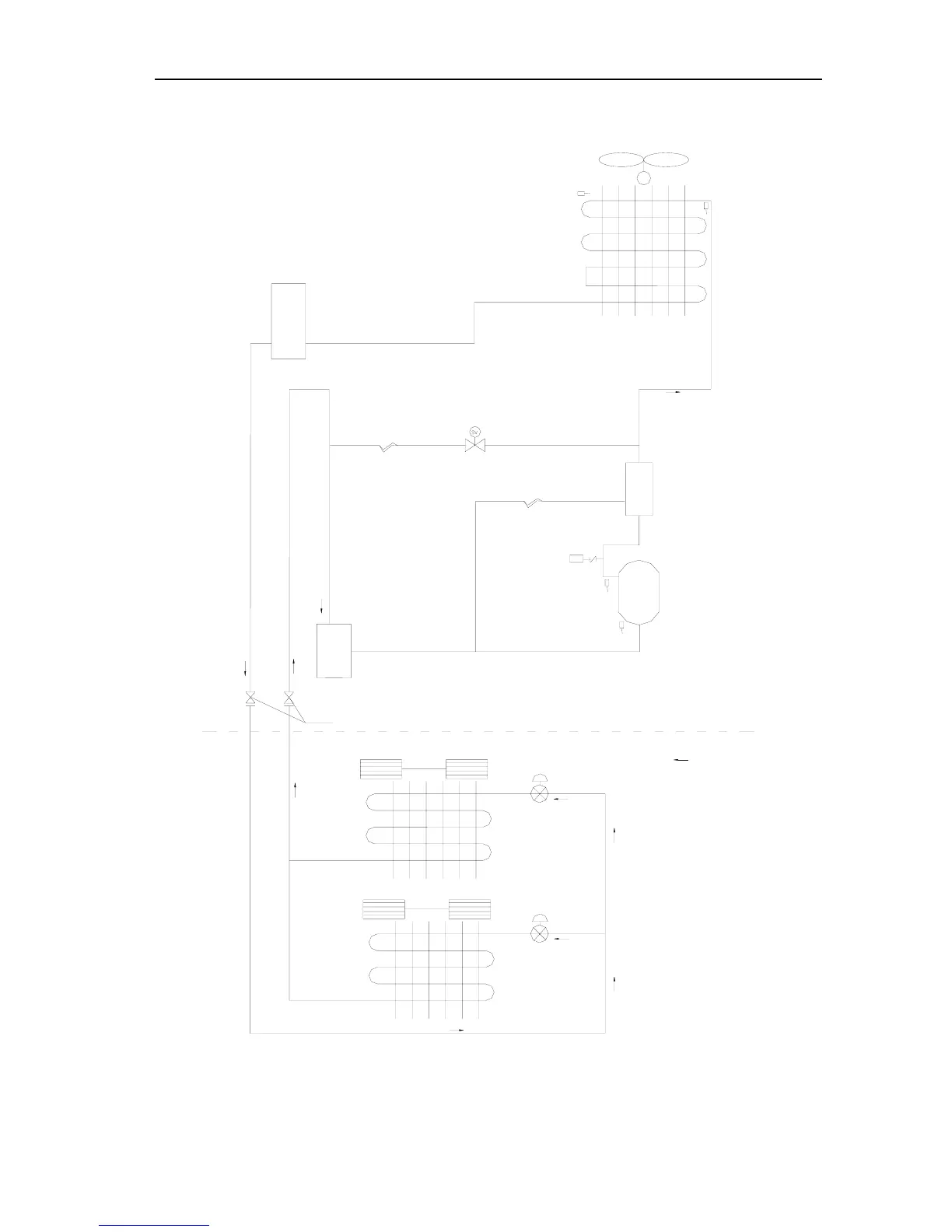

5 PIPING DIAGRAM
5.1 Cooling Only
cooling
Heat Exchanger with Centrifugal Fan
Electronic
Expansion
Valve
Heat Exchanger with Centrifugal Fan
Electronic
Expansion
Valve
extra condenser
Heat
Exchanger
with Axial
Flow Fan
M
Electromagnetic valve
Capillary
Oil separator
Outdoor side
Capillary
High pressure
switch
Compressor
Stop valve
Indoor side
Accumulator
Receiver
