DC INVERTER MULTI VRF INSTALLATION
168

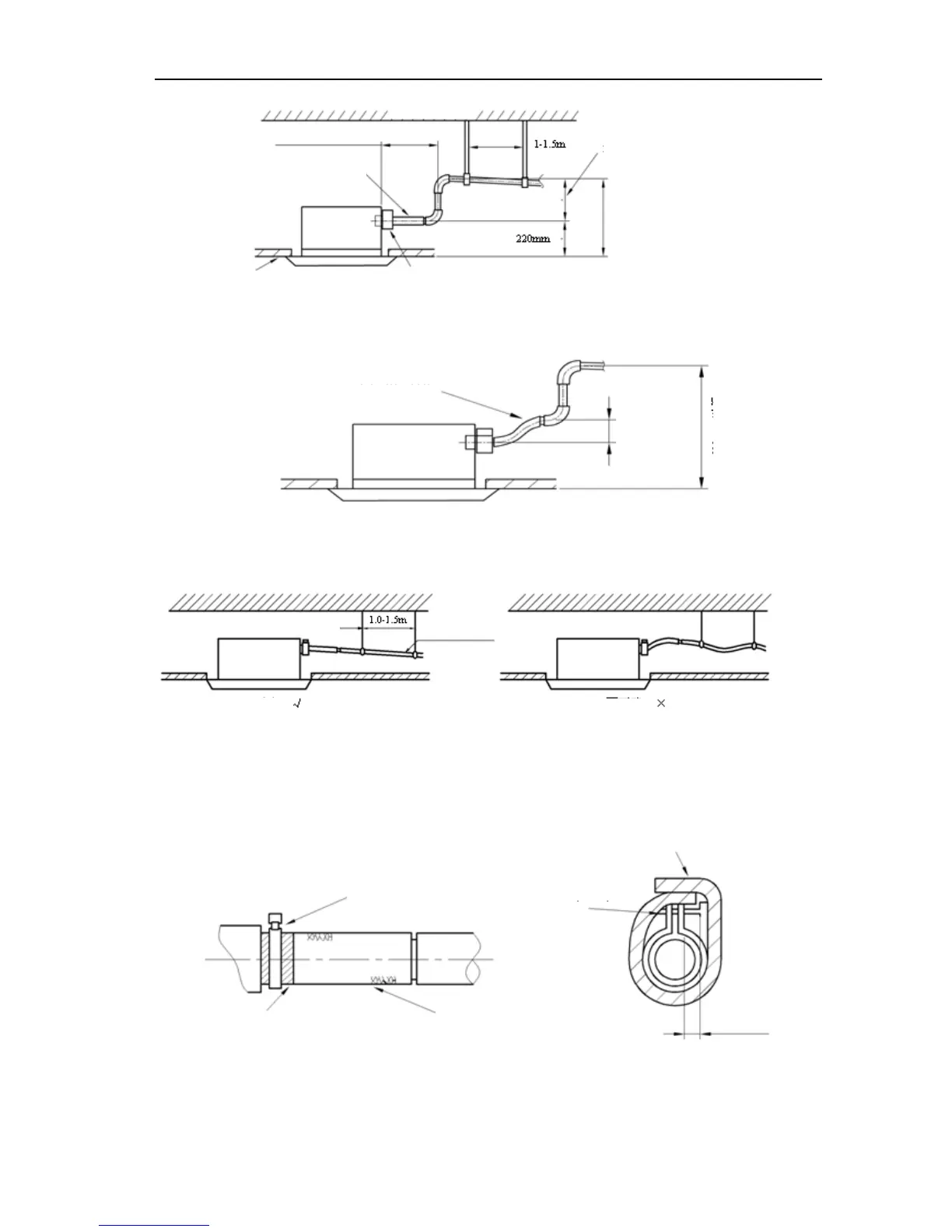

¾ The inclination of included drainage hose
shall be within 75mm, so that the drainage insert
will not bear excessive force.
¾ To prevent the drainage hose from dropping downward, hanger rods shall be erected every
1.0~1.5m.
¾ Use the included drainage hose and clamp. Insert the drainage hose to the drainage port and
tighten the clamp.
¾ For thermal insulation, wrap the big sponge to the drainage hose clamp.
¾ The indoor drainage hose shall be thermally insulated.
¾ To connect the drainage hoses for multiple machines, please use the method of multi-pipe
collection, as shown below.
Roo
f
Hanger seat
Within 300mm
Below 280mm
Drainage hose
(accessory)
Drainage rise
p
i
p
e
Ceiling
Clamp (accessory)
Below 500mm
Drainage hose
(accessory)
Below 500mm
Below 75mm
Correct
Hanger rod
Gradient over 1/100
Incorrect
Clamp
Clamp (accessory)
Big sponge (accessory)
Drainage hose
Sponge (grey)
Below 4mm
