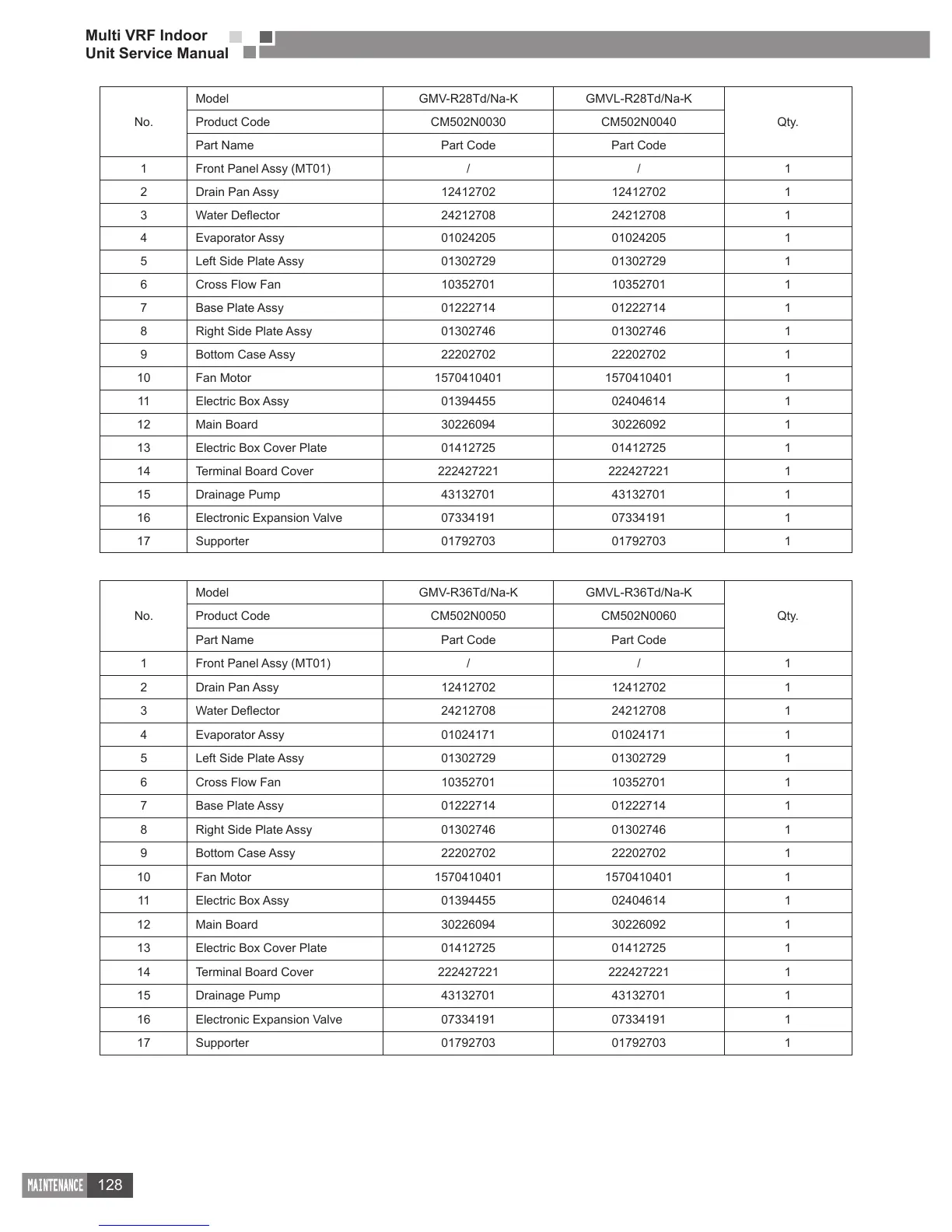

Multi VRF Indoor
Unit Service Manual
No.
Model GMV-R28Td/Na-K GMVL-R28Td/Na-K
Qty.Product Code CM502N0030 CM502N0040
Part Name Part Code Part Code
1 Front Panel Assy (MT01) / / 1
2 Drain Pan Assy 12412702 12412702 1
3  24212708 24212708 1
4 Evaporator Assy 01024205 01024205 1
5 Left Side Plate Assy 01302729 01302729 1
6 Cross Flow Fan 10352701 10352701 1
7 Base Plate Assy 01222714 01222714 1
8 Right Side Plate Assy 01302746 01302746 1
9 Bottom Case Assy 22202702 22202702 1
10 Fan Motor 1570410401 1570410401 1
11 Electric Box Assy 01394455 02404614 1
12 Main Board 30226094 30226092 1
13 Electric Box Cover Plate 01412725 01412725 1
14 Terminal Board Cover 222427221 222427221 1
15 Drainage Pump 43132701 43132701 1
16 Electronic Expansion Valve 07334191 07334191 1
17 Supporter 01792703 01792703 1
No.
Model GMV-R36Td/Na-K GMVL-R36Td/Na-K
Qty.Product Code CM502N0050 CM502N0060
Part Name Part Code Part Code
1 Front Panel Assy (MT01) / / 1
2 Drain Pan Assy 12412702 12412702 1
3  24212708 24212708 1
4 Evaporator Assy 01024171 01024171 1
5 Left Side Plate Assy 01302729 01302729 1
6 Cross Flow Fan 10352701 10352701 1
7 Base Plate Assy 01222714 01222714 1
8 Right Side Plate Assy 01302746 01302746 1
9 Bottom Case Assy 22202702 22202702 1
10 Fan Motor 1570410401 1570410401 1
11 Electric Box Assy 01394455 02404614 1
12 Main Board 30226094 30226092 1
13 Electric Box Cover Plate 01412725 01412725 1
14 Terminal Board Cover 222427221 222427221 1
15 Drainage Pump 43132701 43132701 1
16 Electronic Expansion Valve 07334191 07334191 1
17 Supporter 01792703 01792703 1
