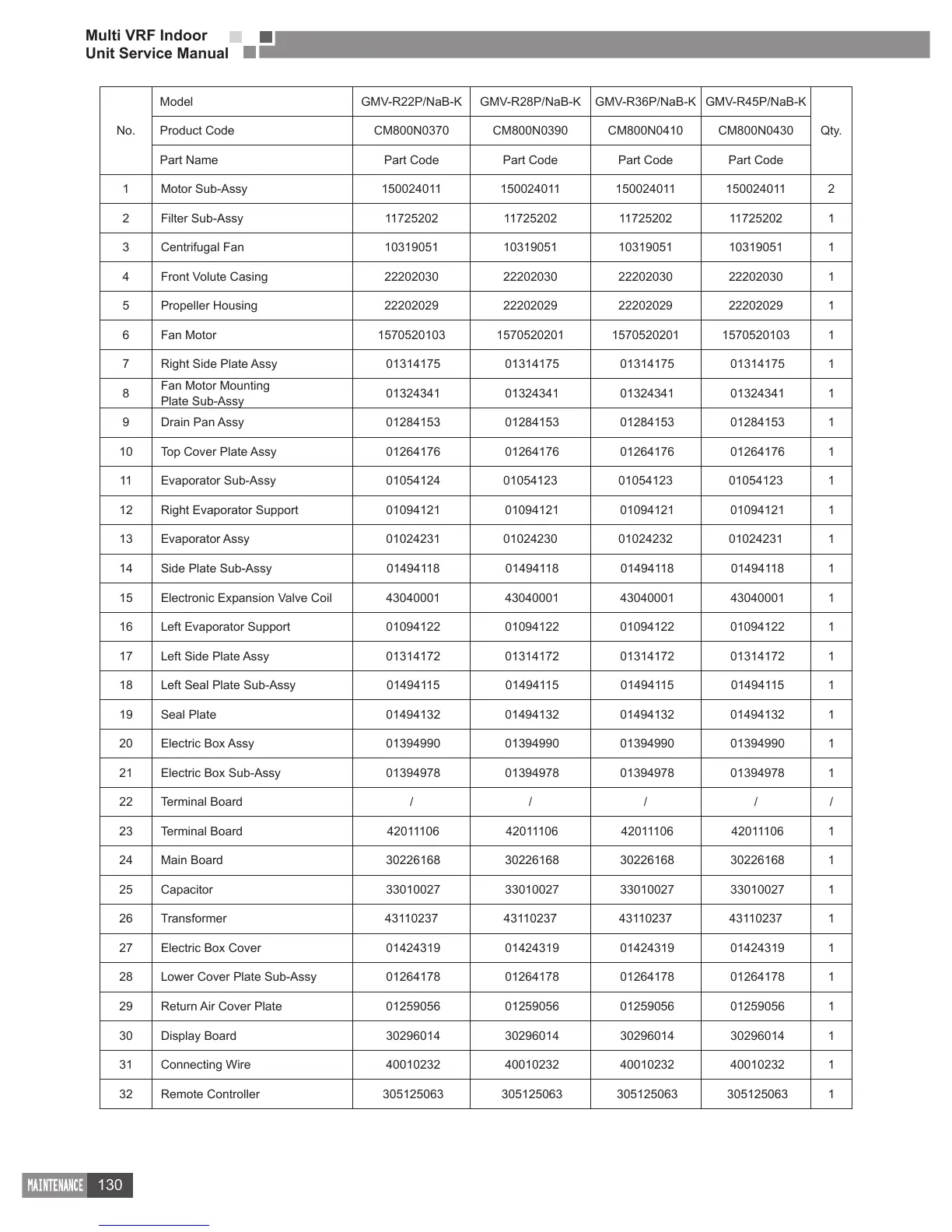

Multi VRF Indoor

Unit Service Manual

No.

Model GMV-R22P/NaB-K GMV-R28P/NaB-K GMV-R36P/NaB-K GMV-R45P/NaB-K

Qty.Product Code CM800N0370 CM800N0390 CM800N0410 CM800N0430

Part Name Part Code Part Code Part Code Part Code

1 Motor Sub-Assy 150024011 150024011 150024011 150024011 2

2 Filter Sub-Assy 11725202 11725202 11725202 11725202 1

3 Centrifugal Fan 10319051 10319051 10319051 10319051 1

4 Front Volute Casing 22202030 22202030 22202030 22202030 1

5 Propeller Housing 22202029 22202029 22202029 22202029 1

6 Fan Motor 1570520103 1570520201 1570520201 1570520103 1

7 Right Side Plate Assy 01314175 01314175 01314175 01314175 1

Fan Motor Mounting

Plate Sub-Assy

01324341 01324341 01324341 01324341 1

9 Drain Pan Assy 01284153 01284153 01284153 01284153 1

10 Top Cover Plate Assy 01264176 01264176 01264176 01264176 1

11 Evaporator Sub-Assy 01054124 01054123 01054123 01054123 1

12 Right Evaporator Support 01094121 01094121 01094121 01094121 1

13 Evaporator Assy 01024231 01024230 01024232 01024231 1

14 Side Plate Sub-Assy 01494118 01494118 01494118 01494118 1

15 Electronic Expansion Valve Coil 43040001 43040001 43040001 43040001 1

16 Left Evaporator Support 01094122 01094122 01094122 01094122 1

17 Left Side Plate Assy 01314172 01314172 01314172 01314172 1

18 Left Seal Plate Sub-Assy 01494115 01494115 01494115 01494115 1

19 Seal Plate 01494132 01494132 01494132 01494132 1

20 Electric Box Assy 01394990 01394990 01394990 01394990 1

21 Electric Box Sub-Assy 01394978 01394978 01394978 01394978 1

22 Terminal Board / / / / /

23 Terminal Board 42011106 42011106 42011106 42011106 1

24 Main Board 30226168 30226168 30226168 30226168 1

25 Capacitor 33010027 33010027 33010027 33010027 1

26 Transformer 43110237 43110237 43110237 43110237 1

27 Electric Box Cover 01424319 01424319 01424319 01424319 1

28 Lower Cover Plate Sub-Assy 01264178 01264178 01264178 01264178 1

29 Return Air Cover Plate 01259056 01259056 01259056 01259056 1

30 Display Board 30296014 30296014 30296014 30296014 1

31 Connecting Wire 40010232 40010232 40010232 40010232 1

32 Remote Controller 305125063 305125063 305125063 305125063 1
