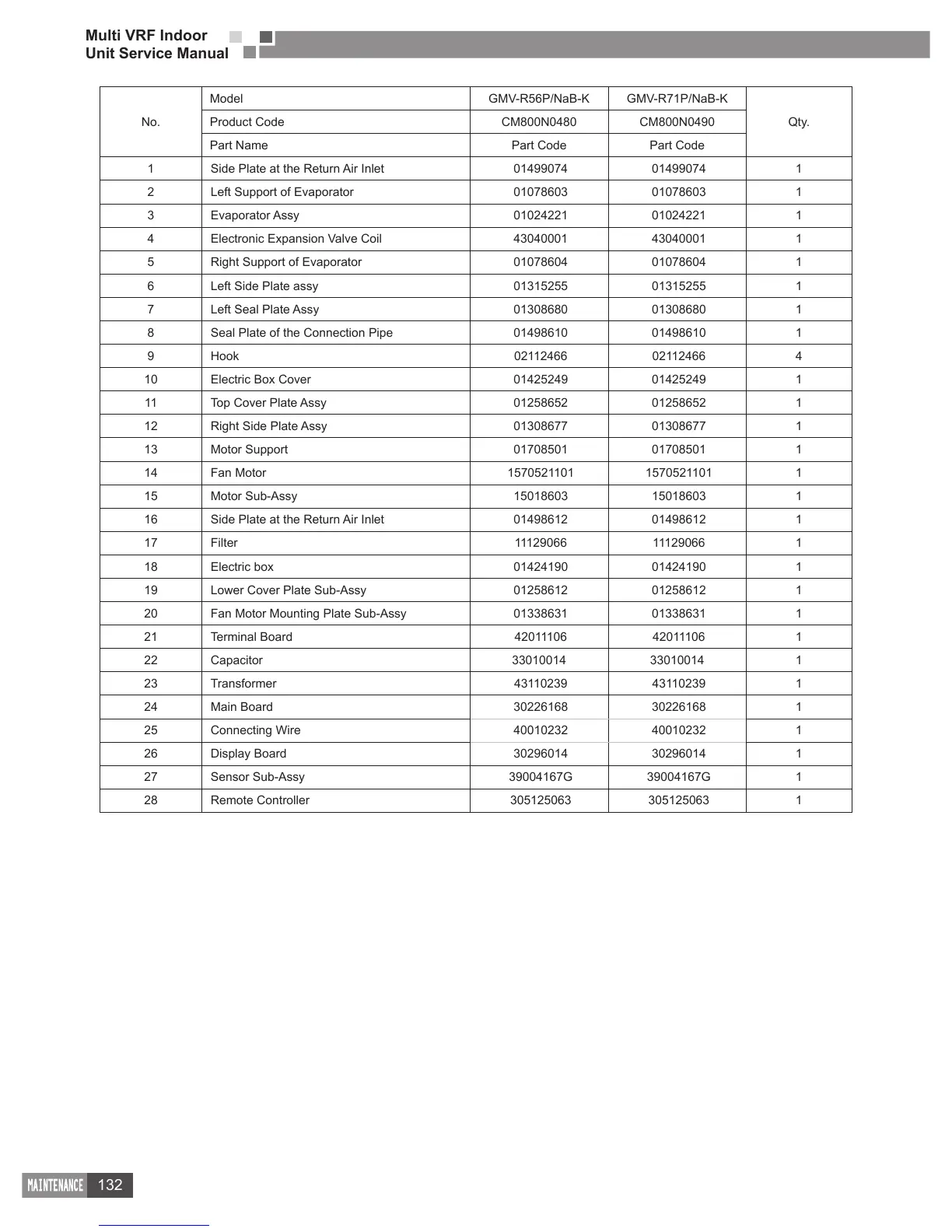

Multi VRF Indoor

Unit Service Manual

No.

Model GMV-R56P/NaB-K GMV-R71P/NaB-K

Qty.Product Code CM800N0480 CM800N0490

Part Name Part Code Part Code

1 Side Plate at the Return Air Inlet 01499074 01499074 1

2 Left Support of Evaporator 01078603 01078603 1

3 Evaporator Assy 01024221 01024221 1

4 Electronic Expansion Valve Coil 43040001 43040001 1

5 Right Support of Evaporator 01078604 01078604 1

6 Left Side Plate assy 01315255 01315255 1

7 Left Seal Plate Assy 01308680 01308680 1

8 Seal Plate of the Connection Pipe 01498610 01498610 1

9 Hook 02112466 02112466 4

10 Electric Box Cover 01425249 01425249 1

11 Top Cover Plate Assy 01258652 01258652 1

12 Right Side Plate Assy 01308677 01308677 1

13 Motor Support 01708501 01708501 1

14 Fan Motor 1570521101 1570521101 1

15 Motor Sub-Assy 15018603 15018603 1

16 Side Plate at the Return Air Inlet 01498612 01498612 1

17 Filter 11129066 11129066 1

18 Electric box 01424190 01424190 1

19 Lower Cover Plate Sub-Assy 01258612 01258612 1

20 Fan Motor Mounting Plate Sub-Assy 01338631 01338631 1

21 Terminal Board 42011106 42011106 1

22 Capacitor 33010014 33010014 1

23 Transformer 43110239 43110239 1

24 Main Board 30226168 30226168 1

25 Connecting Wire 40010232 40010232 1

26 Display Board 30296014 30296014 1

27 Sensor Sub-Assy 39004167G 39004167G 1

28 Remote Controller 305125063 305125063 1
