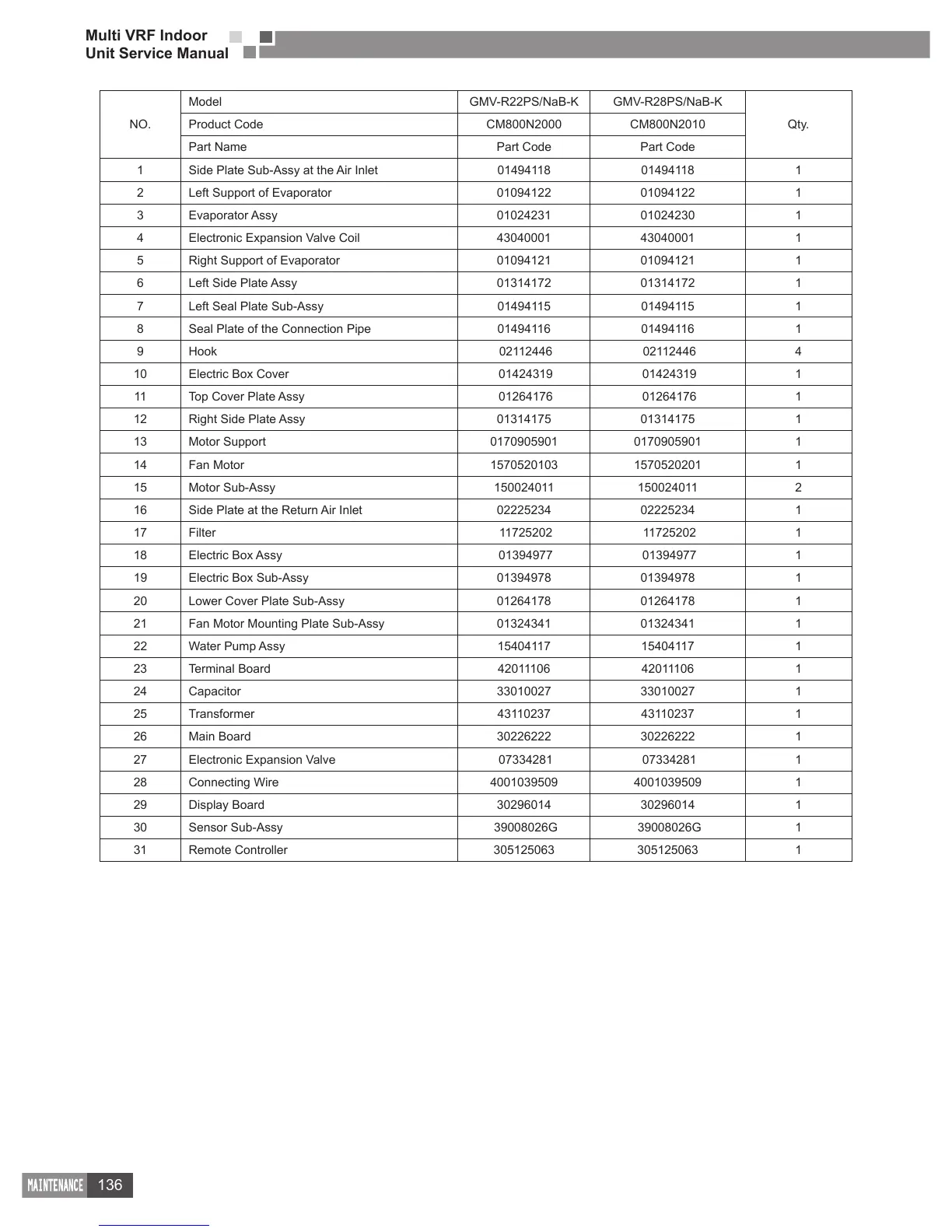

Multi VRF Indoor
Unit Service Manual
NO.
Model GMV-R22PS/NaB-K GMV-R28PS/NaB-K
Qty.Product Code CM800N2000 CM800N2010
Part Name Part Code Part Code
1 Side Plate Sub-Assy at the Air Inlet 01494118 01494118 1
2 Left Support of Evaporator 01094122 01094122 1
3 Evaporator Assy 01024231 01024230 1
4 Electronic Expansion Valve Coil 43040001 43040001 1
5 Right Support of Evaporator 01094121 01094121 1
6 Left Side Plate Assy 01314172 01314172 1
7 Left Seal Plate Sub-Assy 01494115 01494115 1
8 Seal Plate of the Connection Pipe 01494116 01494116 1
9 Hook 02112446 02112446 4
10 Electric Box Cover 01424319 01424319 1
11 Top Cover Plate Assy 01264176 01264176 1
12 Right Side Plate Assy 01314175 01314175 1
13 Motor Support 0170905901 0170905901 1
14 Fan Motor 1570520103 1570520201 1
15 Motor Sub-Assy 150024011 150024011 2
16 Side Plate at the Return Air Inlet 02225234 02225234 1
17 Filter 11725202 11725202 1
18 Electric Box Assy 01394977 01394977 1
19 Electric Box Sub-Assy 01394978 01394978 1
20 Lower Cover Plate Sub-Assy 01264178 01264178 1
21 Fan Motor Mounting Plate Sub-Assy 01324341 01324341 1
22 Water Pump Assy 15404117 15404117 1
23 Terminal Board 42011106 42011106 1
24 Capacitor 33010027 33010027 1
25 Transformer 43110237 43110237 1
26 Main Board 30226222 30226222 1
27 Electronic Expansion Valve 07334281 07334281 1
28 Connecting Wire 4001039509 4001039509 1
29 Display Board 30296014 30296014 1
30 Sensor Sub-Assy 39008026G 39008026G 1
31 Remote Controller 305125063 305125063 1
