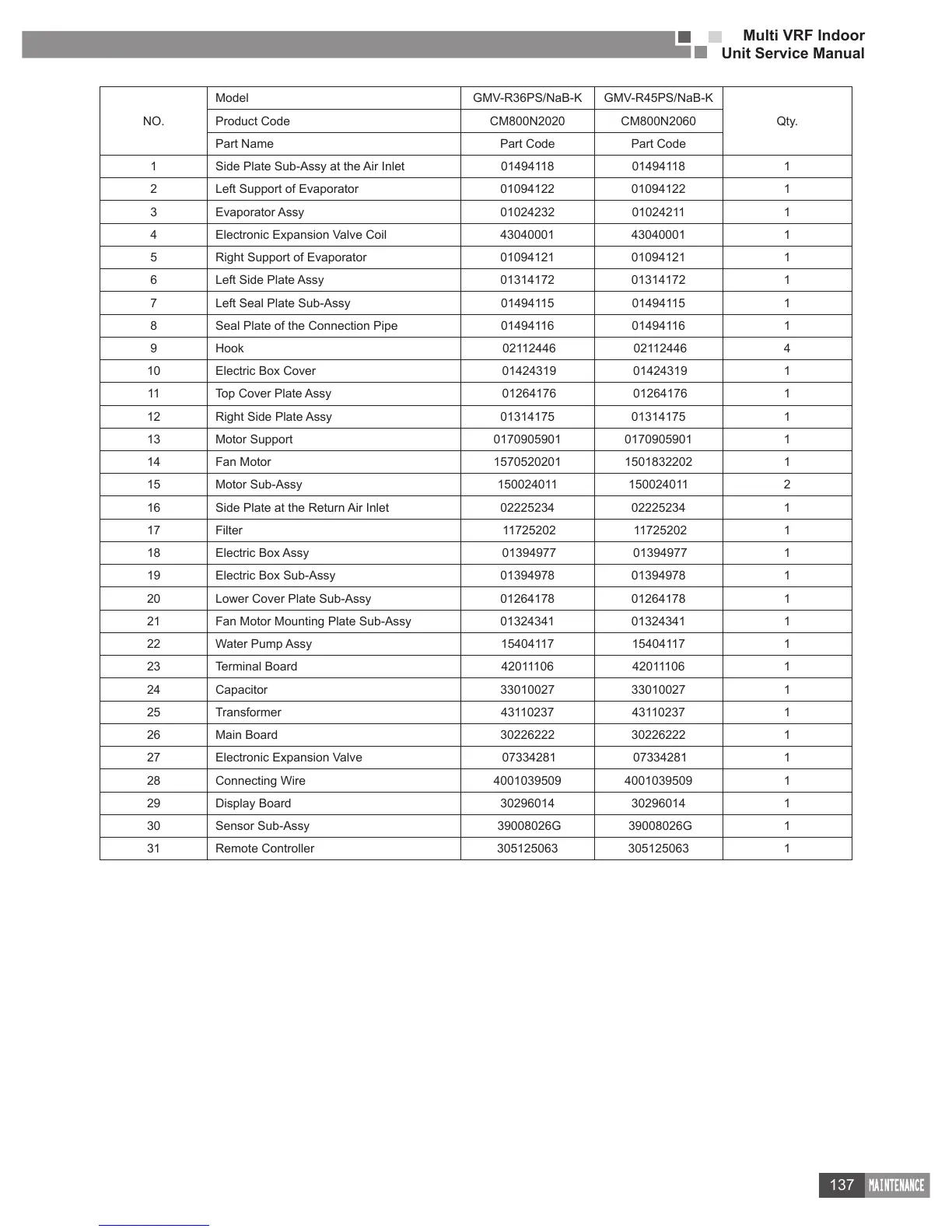

Multi VRF Indoor

Unit Service Manual

137

NO.

Model GMV-R36PS/NaB-K GMV-R45PS/NaB-K

Qty.Product Code CM800N2020 CM800N2060

Part Name Part Code Part Code

1 Side Plate Sub-Assy at the Air Inlet 01494118 01494118 1

2 Left Support of Evaporator 01094122 01094122 1

3 Evaporator Assy 01024232 01024211 1

4 Electronic Expansion Valve Coil 43040001 43040001 1

5 Right Support of Evaporator 01094121 01094121 1

6 Left Side Plate Assy 01314172 01314172 1

7 Left Seal Plate Sub-Assy 01494115 01494115 1

8 Seal Plate of the Connection Pipe 01494116 01494116 1

9 Hook 02112446 02112446 4

10 Electric Box Cover 01424319 01424319 1

11 Top Cover Plate Assy 01264176 01264176 1

12 Right Side Plate Assy 01314175 01314175 1

13 Motor Support 0170905901 0170905901 1

14 Fan Motor 1570520201 1501832202 1

15 Motor Sub-Assy 150024011 150024011 2

16 Side Plate at the Return Air Inlet 02225234 02225234 1

17 Filter 11725202 11725202 1

18 Electric Box Assy 01394977 01394977 1

19 Electric Box Sub-Assy 01394978 01394978 1

20 Lower Cover Plate Sub-Assy 01264178 01264178 1

21 Fan Motor Mounting Plate Sub-Assy 01324341 01324341 1

22 Water Pump Assy 15404117 15404117 1

23 Terminal Board 42011106 42011106 1

24 Capacitor 33010027 33010027 1

25 Transformer 43110237 43110237 1

26 Main Board 30226222 30226222 1

27 Electronic Expansion Valve 07334281 07334281 1

28 Connecting Wire 4001039509 4001039509 1

29 Display Board 30296014 30296014 1

30 Sensor Sub-Assy 39008026G 39008026G 1

31 Remote Controller 305125063 305125063 1
