Gree GMV-R series User Manual

Multi VRF Indoor
Unit Service Manual
165
NO.

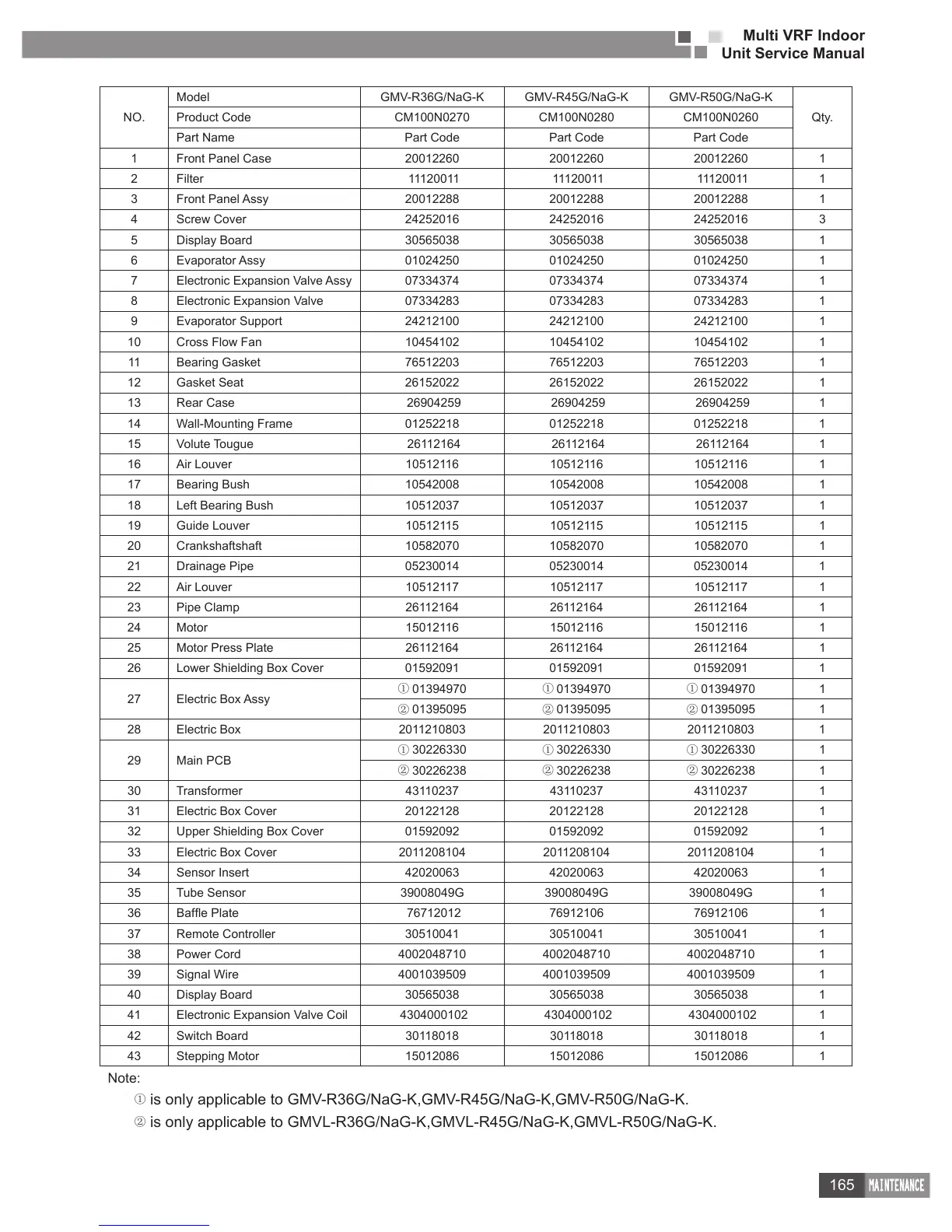

Model GMV-R36G/NaG-K GMV-R45G/NaG-K GMV-R50G/NaG-K
Qty.Product Code CM100N0270 CM100N0280 CM100N0260
Part Name Part Code Part Code Part Code
1 Front Panel Case 20012260 20012260 20012260 1
2 Filter 11120011 11120011 11120011 1
3 Front Panel Assy 20012288 20012288 20012288 1
4 Screw Cover 24252016 24252016 24252016 3
5 Display Board 30565038 30565038 30565038 1
6 Evaporator Assy 01024250 01024250 01024250 1
7 Electronic Expansion Valve Assy 07334374 07334374 07334374 1
8 Electronic Expansion Valve 07334283 07334283 07334283 1
9 Evaporator Support 24212100 24212100 24212100 1
10 Cross Flow Fan 10454102 10454102 10454102 1
11 Bearing Gasket 76512203 76512203 76512203 1
12 Gasket Seat 26152022 26152022 26152022 1
13 Rear Case 26904259 26904259 26904259 1
14 Wall-Mounting Frame 01252218 01252218 01252218 1
15 Volute Tougue 26112164 26112164 26112164 1
16 Air Louver 10512116 10512116 10512116 1
17 Bearing Bush 10542008 10542008 10542008 1
18 Left Bearing Bush 10512037 10512037 10512037 1
19 Guide Louver 10512115 10512115 10512115 1
20 Crankshaftshaft 10582070 10582070 10582070 1
21 Drainage Pipe 05230014 05230014 05230014 1
22 Air Louver 10512117 10512117 10512117 1
23 Pipe Clamp 26112164 26112164 26112164 1
24 Motor 15012116 15012116 15012116 1
25 Motor Press Plate 26112164 26112164 26112164 1
26 Lower Shielding Box Cover 01592091 01592091 01592091 1
27 Electric Box Assy
①
01394970
①
01394970
①
01394970 1
②
01395095
②
01395095
②
01395095 1
28 Electric Box 2011210803 2011210803 2011210803 1
29 Main PCB
①
30226330
①
30226330
①
30226330 1
②
30226238
②
30226238
②
30226238 1
30 Transformer 43110237 43110237 43110237 1
31 Electric Box Cover 20122128 20122128 20122128 1
32 Upper Shielding Box Cover 01592092 01592092 01592092 1
33 Electric Box Cover 2011208104 2011208104 2011208104 1
34 Sensor Insert 42020063 42020063 42020063 1
35 Tube Sensor 39008049G 39008049G 39008049G 1
36  76712012 76912106 76912106 1
37 Remote Controller 30510041 30510041 30510041 1
38 Power Cord 4002048710 4002048710 4002048710 1
39 Signal Wire 4001039509 4001039509 4001039509 1
40 Display Board 30565038 30565038 30565038 1
41 Electronic Expansion Valve Coil 4304000102 4304000102 4304000102 1
42 Switch Board 30118018 30118018 30118018 1
43 Stepping Motor 15012086 15012086 15012086 1
Note:
①
is only applicable to GMV-R36G/NaG-K,GMV-R45G/NaG-K,GMV-R50G/NaG-K.
②
is only applicable to GMVL-R36G/NaG-K,GMVL-R45G/NaG-K,GMVL-R50G/NaG-K.
