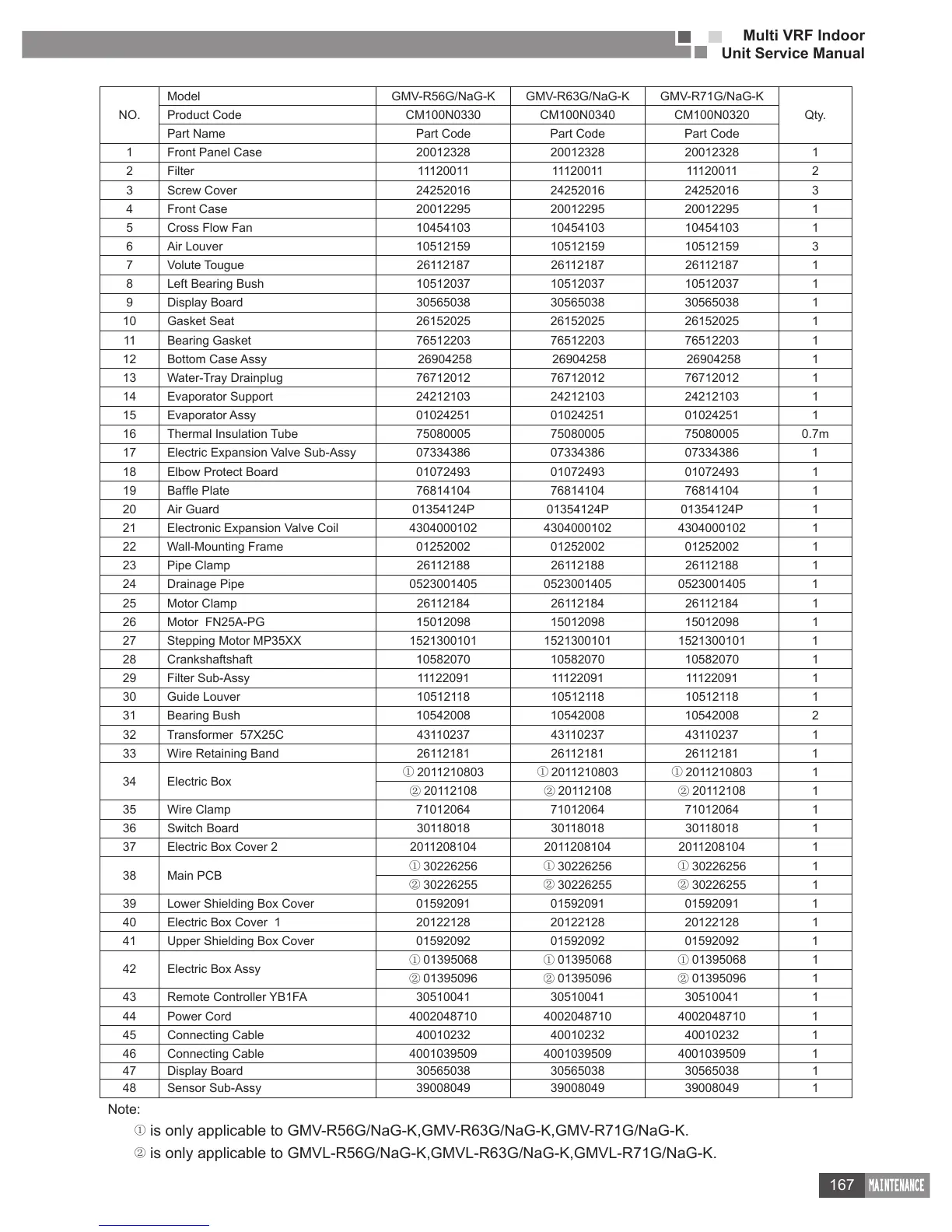

Multi VRF Indoor
Unit Service Manual
167
NO.
Model GMV-R56G/NaG-K GMV-R63G/NaG-K GMV-R71G/NaG-K
Qty.Product Code CM100N0330 CM100N0340 CM100N0320
Part Name Part Code Part Code Part Code
1 Front Panel Case 20012328 20012328 20012328 1
2 Filter 11120011 11120011 11120011 2
3 Screw Cover 24252016 24252016 24252016 3
4 Front Case 20012295 20012295 20012295 1
5 Cross Flow Fan 10454103 10454103 10454103 1
6 Air Louver 10512159 10512159 10512159 3
7 Volute Tougue 26112187 26112187 26112187 1
8 Left Bearing Bush 10512037 10512037 10512037 1
9 Display Board 30565038 30565038 30565038 1
10 Gasket Seat 26152025 26152025 26152025 1
11 Bearing Gasket 76512203 76512203 76512203 1
12 Bottom Case Assy 26904258 26904258 26904258 1
13 Water-Tray Drainplug 76712012 76712012 76712012 1
14 Evaporator Support 24212103 24212103 24212103 1
15 Evaporator Assy 01024251 01024251 01024251 1
16 Thermal Insulation Tube 75080005 75080005 75080005 0.7m
17 Electric Expansion Valve Sub-Assy 07334386 07334386 07334386 1
18 Elbow Protect Board 01072493 01072493 01072493 1
19 76814104 76814104 76814104 1
20 Air Guard 01354124P 01354124P 01354124P 1
21 Electronic Expansion Valve Coil 4304000102 4304000102 4304000102 1
22 Wall-Mounting Frame 01252002 01252002 01252002 1
23 Pipe Clamp 26112188 26112188 26112188 1
24 Drainage Pipe 0523001405 0523001405 0523001405 1
25 Motor Clamp 26112184 26112184 26112184 1
26 Motor FN25A-PG 15012098 15012098 15012098 1
27 Stepping Motor MP35XX 1521300101 1521300101 1521300101 1
28 Crankshaftshaft 10582070 10582070 10582070 1
29 Filter Sub-Assy 11122091 11122091 11122091 1
30 Guide Louver 10512118 10512118 10512118 1
31 Bearing Bush 10542008 10542008 10542008 2
32 Transformer 57X25C 43110237 43110237 43110237 1
33 Wire Retaining Band 26112181 26112181 26112181 1
34 Electric Box
①
2011210803
①
2011210803
①
2011210803 1
②
20112108
②
20112108
②
20112108 1
35 Wire Clamp 71012064 71012064 71012064 1
36 Switch Board 30118018 30118018 30118018 1
37 Electric Box Cover 2 2011208104 2011208104 2011208104 1
38 Main PCB
①
30226256
①
30226256
①
30226256 1
②
30226255
②
30226255
②
30226255 1
39 Lower Shielding Box Cover 01592091 01592091 01592091 1
40 Electric Box Cover 1 20122128 20122128 20122128 1
41 Upper Shielding Box Cover 01592092 01592092 01592092 1
42 Electric Box Assy
①
01395068
①
01395068
①
01395068 1
②
01395096
②
01395096
②
01395096 1
43 Remote Controller YB1FA 30510041 30510041 30510041 1
44 Power Cord 4002048710 4002048710 4002048710 1
45 Connecting Cable 40010232 40010232 40010232 1
46 Connecting Cable 4001039509 4001039509 4001039509 1
47 Display Board 30565038 30565038 30565038 1
48 Sensor Sub-Assy 39008049 39008049 39008049 1
Note:
①
is only applicable to GMV-R56G/NaG-K,GMV-R63G/NaG-K,GMV-R71G/NaG-K.
②
is only applicable to GMVL-R56G/NaG-K,GMVL-R63G/NaG-K,GMVL-R71G/NaG-K.
