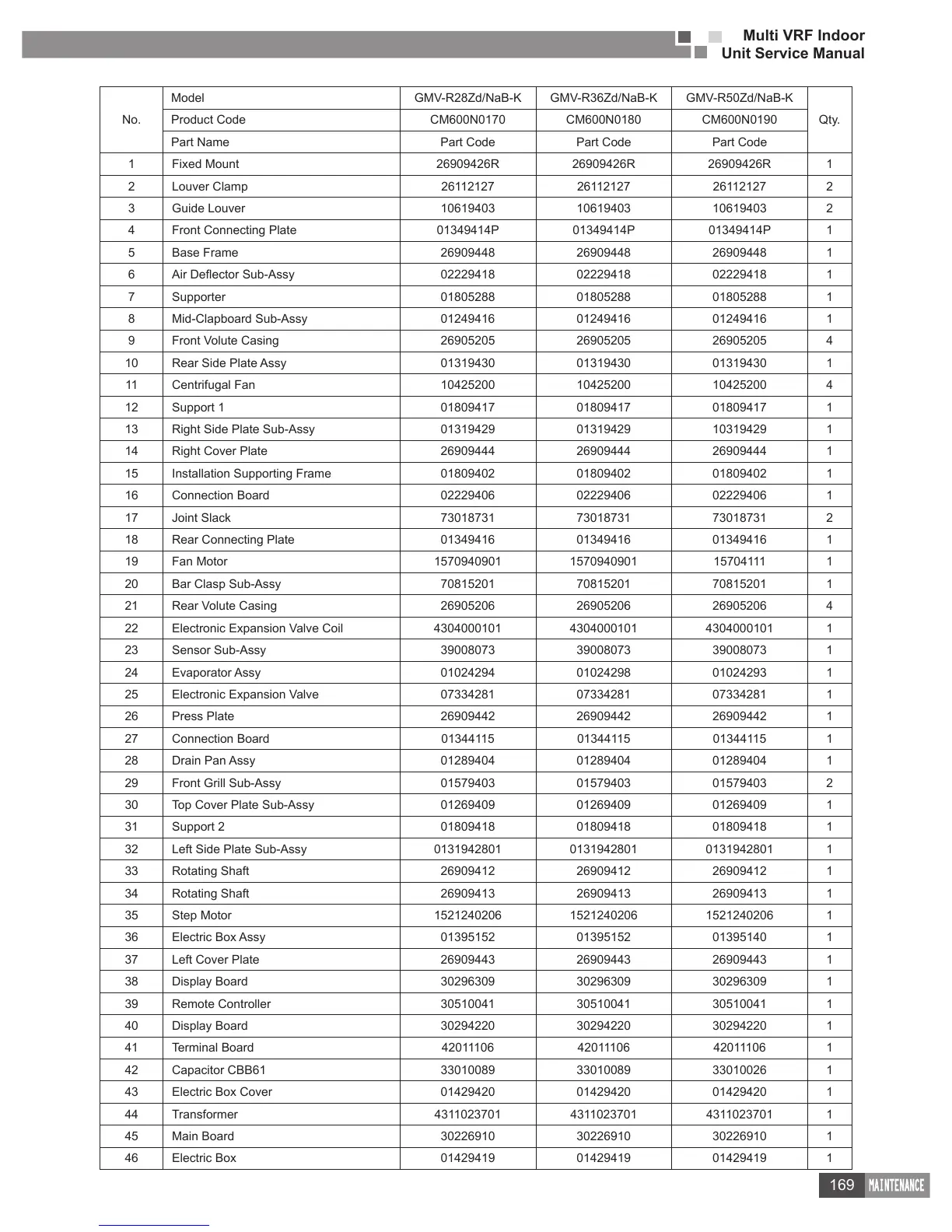

Multi VRF Indoor

Unit Service Manual

169

No.

Model GMV-R28Zd/NaB-K GMV-R36Zd/NaB-K GMV-R50Zd/NaB-K

Qty.Product Code CM600N0170 CM600N0180 CM600N0190

Part Name Part Code Part Code Part Code

1 Fixed Mount 26909426R 26909426R 26909426R 1

2 Louver Clamp 26112127 26112127 26112127 2

3 Guide Louver 10619403 10619403 10619403 2

4 Front Connecting Plate 01349414P 01349414P 01349414P 1

5 Base Frame 26909448 26909448 26909448 1

6  02229418 02229418 02229418 1

7 Supporter 01805288 01805288 01805288 1

8 Mid-Clapboard Sub-Assy 01249416 01249416 01249416 1

9 Front Volute Casing 26905205 26905205 26905205 4

10 Rear Side Plate Assy 01319430 01319430 01319430 1

11 Centrifugal Fan 10425200 10425200 10425200 4

12 Support 1 01809417 01809417 01809417 1

13 Right Side Plate Sub-Assy 01319429 01319429 10319429 1

14 Right Cover Plate 26909444 26909444 26909444 1

15 Installation Supporting Frame 01809402 01809402 01809402 1

16 Connection Board 02229406 02229406 02229406 1

17 Joint Slack 73018731 73018731 73018731 2

18 Rear Connecting Plate 01349416 01349416 01349416 1

19 Fan Motor 1570940901 1570940901 15704111 1

20 Bar Clasp Sub-Assy 70815201 70815201 70815201 1

21 Rear Volute Casing 26905206 26905206 26905206 4

22 Electronic Expansion Valve Coil 4304000101 4304000101 4304000101 1

23 Sensor Sub-Assy 39008073 39008073 39008073 1

24 Evaporator Assy 01024294 01024298 01024293 1

25 Electronic Expansion Valve 07334281 07334281 07334281 1

26 Press Plate 26909442 26909442 26909442 1

27 Connection Board 01344115 01344115 01344115 1

28 Drain Pan Assy 01289404 01289404 01289404 1

29 Front Grill Sub-Assy 01579403 01579403 01579403 2

30 Top Cover Plate Sub-Assy 01269409 01269409 01269409 1

31 Support 2 01809418 01809418 01809418 1

32 Left Side Plate Sub-Assy 0131942801 0131942801 0131942801 1

33 Rotating Shaft 26909412 26909412 26909412 1

34 Rotating Shaft 26909413 26909413 26909413 1

35 Step Motor 1521240206 1521240206 1521240206 1

36 Electric Box Assy 01395152 01395152 01395140 1

37 Left Cover Plate 26909443 26909443 26909443 1

38 Display Board 30296309 30296309 30296309 1

39 Remote Controller 30510041 30510041 30510041 1

40 Display Board 30294220 30294220 30294220 1

41 Terminal Board 42011106 42011106 42011106 1

42 Capacitor CBB61 33010089 33010089 33010026 1

43 Electric Box Cover 01429420 01429420 01429420 1

44 Transformer 4311023701 4311023701 4311023701 1

45 Main Board 30226910 30226910 30226910 1

46 Electric Box 01429419 01429419 01429419 1
