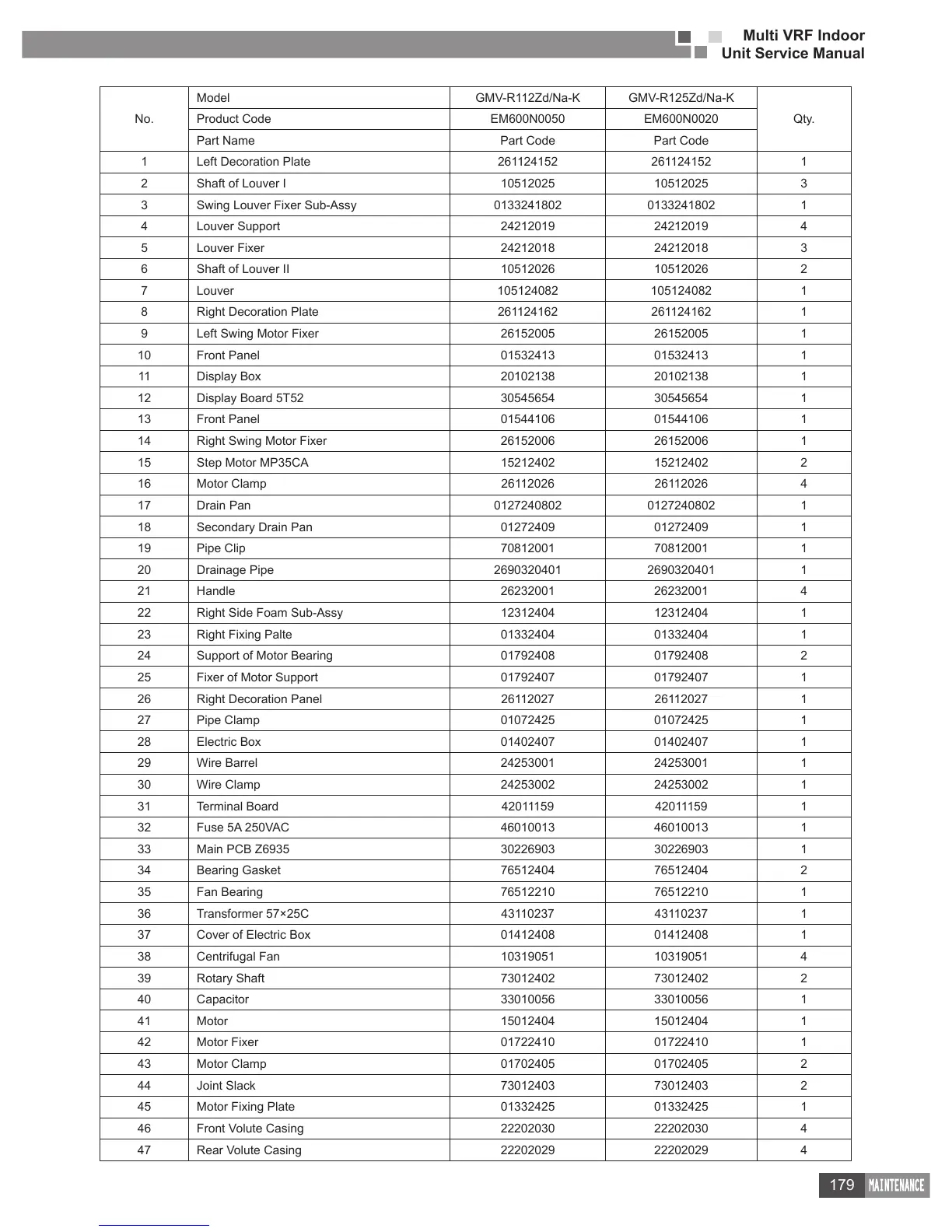

Multi VRF Indoor
Unit Service Manual
179
No.
Model GMV-R112Zd/Na-K GMV-R125Zd/Na-K
Qty.Product Code EM600N0050 EM600N0020
Part Name Part Code Part Code
1 Left Decoration Plate 261124152 261124152 1
2 Shaft of Louver I 10512025 10512025 3
3 Swing Louver Fixer Sub-Assy 0133241802 0133241802 1
4 Louver Support 24212019 24212019 4
5 Louver Fixer 24212018 24212018 3
6 Shaft of Louver II 10512026 10512026 2
7 Louver 105124082 105124082 1
8 Right Decoration Plate 261124162 261124162 1
9 Left Swing Motor Fixer 26152005 26152005 1
10 Front Panel 01532413 01532413 1
11 Display Box 20102138 20102138 1
12 Display Board 5T52 30545654 30545654 1
13 Front Panel 01544106 01544106 1
14 Right Swing Motor Fixer 26152006 26152006 1
15 Step Motor MP35CA 15212402 15212402 2
16 Motor Clamp 26112026 26112026 4
17 Drain Pan 0127240802 0127240802 1
18 Secondary Drain Pan 01272409 01272409 1
19 Pipe Clip 70812001 70812001 1
20 Drainage Pipe 2690320401 2690320401 1
21 Handle 26232001 26232001 4
22 Right Side Foam Sub-Assy 12312404 12312404 1
23 Right Fixing Palte 01332404 01332404 1
24 Support of Motor Bearing 01792408 01792408 2
25 Fixer of Motor Support 01792407 01792407 1
26 Right Decoration Panel 26112027 26112027 1
27 Pipe Clamp 01072425 01072425 1
28 Electric Box 01402407 01402407 1
29 Wire Barrel 24253001 24253001 1
30 Wire Clamp 24253002 24253002 1
31 Terminal Board 42011159 42011159 1
32 Fuse 5A 250VAC 46010013 46010013 1
33 Main PCB Z6935 30226903 30226903 1
34 Bearing Gasket 76512404 76512404 2
35 Fan Bearing 76512210 76512210 1
36 Transformer 57×25C 43110237 43110237 1
37 Cover of Electric Box 01412408 01412408 1
38 Centrifugal Fan 10319051 10319051 4
39 Rotary Shaft 73012402 73012402 2
40 Capacitor 33010056 33010056 1
41 Motor 15012404 15012404 1
42 Motor Fixer 01722410 01722410 1
43 Motor Clamp 01702405 01702405 2
44 Joint Slack 73012403 73012403 2
45 Motor Fixing Plate 01332425 01332425 1
46 Front Volute Casing 22202030 22202030 4
47 Rear Volute Casing 22202029 22202029 4
To Next Page
