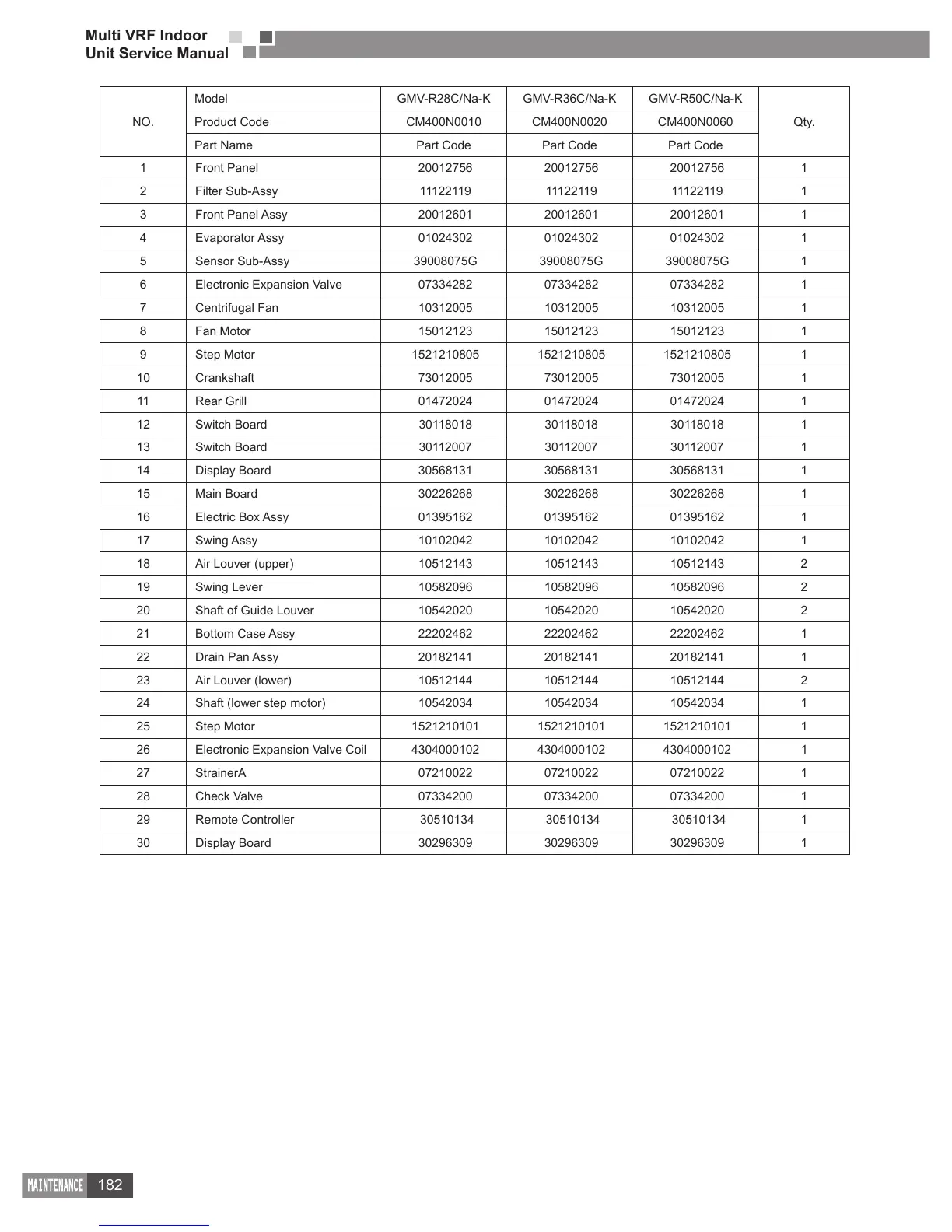

Multi VRF Indoor

Unit Service Manual

NO.

Model GMV-R28C/Na-K GMV-R36C/Na-K GMV-R50C/Na-K

Qty.Product Code CM400N0010 CM400N0020 CM400N0060

Part Name Part Code Part Code Part Code

1 Front Panel 20012756 20012756 20012756 1

2 Filter Sub-Assy 11122119 11122119 11122119 1

3 Front Panel Assy 20012601 20012601 20012601 1

4 Evaporator Assy 01024302 01024302 01024302 1

5 Sensor Sub-Assy 39008075G 39008075G 39008075G 1

6 Electronic Expansion Valve 07334282 07334282 07334282 1

7 Centrifugal Fan 10312005 10312005 10312005 1

8 Fan Motor 15012123 15012123 15012123 1

9 Step Motor 1521210805 1521210805 1521210805 1

10 Crankshaft 73012005 73012005 73012005 1

11 Rear Grill 01472024 01472024 01472024 1

12 Switch Board 30118018 30118018 30118018 1

13 Switch Board 30112007 30112007 30112007 1

14 Display Board 30568131 30568131 30568131 1

15 Main Board 30226268 30226268 30226268 1

16 Electric Box Assy 01395162 01395162 01395162 1

17 Swing Assy 10102042 10102042 10102042 1

18 Air Louver (upper) 10512143 10512143 10512143 2

19 Swing Lever 10582096 10582096 10582096 2

20 Shaft of Guide Louver 10542020 10542020 10542020 2

21 Bottom Case Assy 22202462 22202462 22202462 1

22 Drain Pan Assy 20182141 20182141 20182141 1

23 Air Louver (lower) 10512144 10512144 10512144 2

24 Shaft (lower step motor) 10542034 10542034 10542034 1

25 Step Motor 1521210101 1521210101 1521210101 1

26 Electronic Expansion Valve Coil 4304000102 4304000102 4304000102 1

27 StrainerA 07210022 07210022 07210022 1

28 Check Valve 07334200 07334200 07334200 1

29 Remote Controller 30510134 30510134 30510134 1

30 Display Board 30296309 30296309 30296309 1
