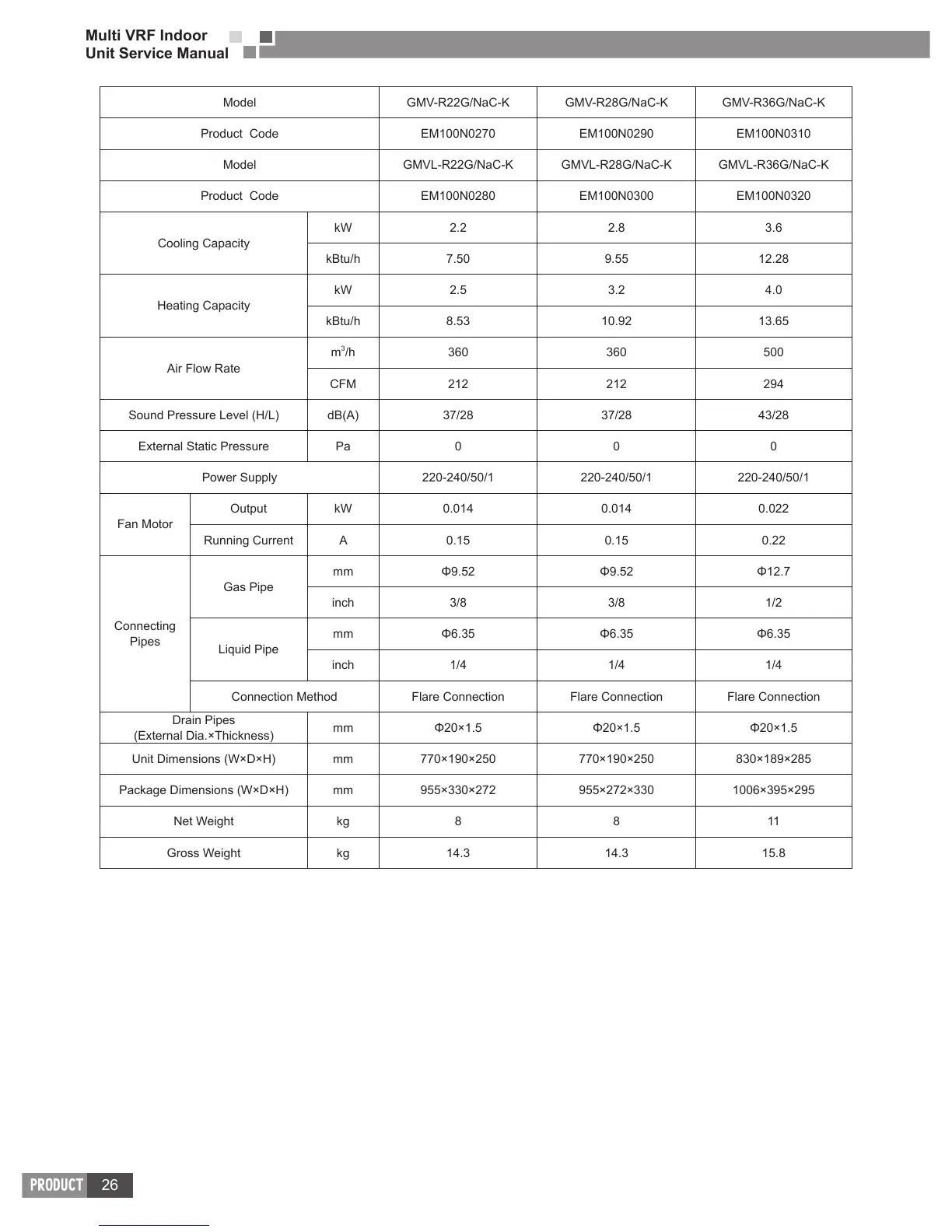

Multi VRF Indoor
Unit Service Manual
PRODUCT
Model GMV-R22G/NaC-K GMV-R28G/NaC-K GMV-R36G/NaC-K
Product Code EM100N0270 EM100N0290 EM100N0310
Model GMVL-R22G/NaC-K GMVL-R28G/NaC-K GMVL-R36G/NaC-K
Product Code EM100N0280 EM100N0300 EM100N0320
Cooling Capacity
kW 2.2 2.8 3.6
kBtu/h 7.50 9.55 12.28
Heating Capacity
kW 2.5 3.2 4.0
kBtu/h 8.53 10.92 13.65
Air Flow Rate
m
3
/h 360 360 500
CFM 212 212 294
Sound Pressure Level (H/L) dB(A) 37/28 37/28 43/28
External Static Pressure Pa 0 0 0
Power Supply 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.014 0.014 0.022
Running Current A 0.15 0.15 0.22
Connecting
Pipes
Gas Pipe
mm
inch 3/8 3/8 1/2
Liquid Pipe
mm
inch 1/4 1/4 1/4
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes
(External Dia.×Thickness)
mm
Unit Dimensions (W×D×H) mm 770×190×250 770×190×250 830×189×285
Package Dimensions (W×D×H) mm 955×330×272 955×272×330 1006×395×295
Net Weight kg 8 8 11
Gross Weight kg 14.3 14.3 15.8
