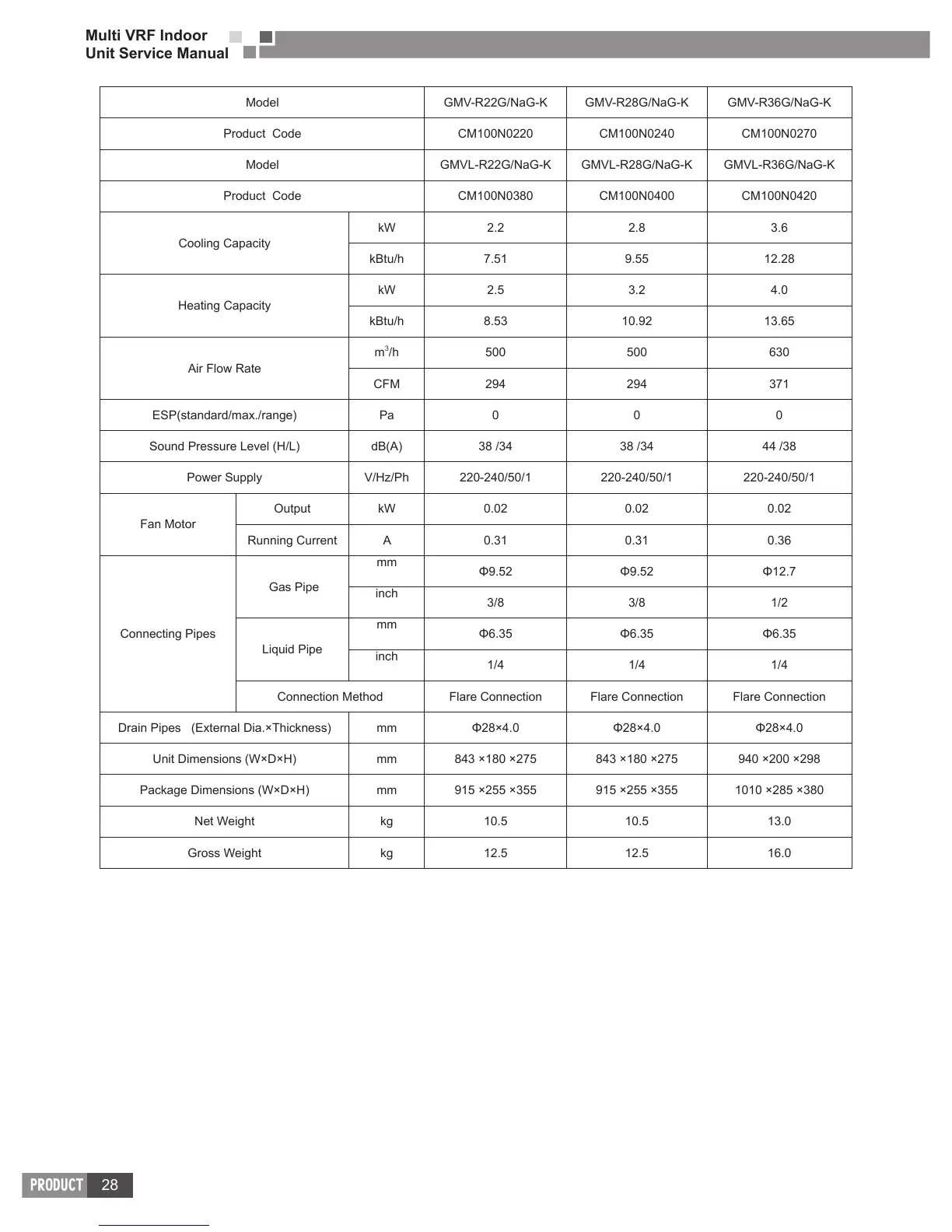

Multi VRF Indoor
Unit Service Manual
PRODUCT
Model GMV-R22G/NaG-K GMV-R28G/NaG-K GMV-R36G/NaG-K
Product Code CM100N0220 CM100N0240 CM100N0270
Model GMVL-R22G/NaG-K GMVL-R28G/NaG-K GMVL-R36G/NaG-K
Product Code CM100N0380 CM100N0400 CM100N0420
Cooling Capacity
kW 2.2 2.8 3.6
kBtu/h 7.51 9.55 12.28
Heating Capacity
kW 2.5 3.2 4.0
kBtu/h 8.53 10.92 13.65
Air Flow Rate
m
3
/h 500 500 630
CFM 294 294 371
ESP(standard/max./range) Pa 0 0 0
Sound Pressure Level (H/L) dB(A) 38 /34 38 /34 44 /38
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.02 0.02 0.02
Running Current A 0.31 0.31 0.36
Connecting Pipes
Gas Pipe
mm
inch
3/8 3/8 1/2
Liquid Pipe
mm
inch
1/4 1/4 1/4
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm
Unit Dimensions (W×D×H) mm 843 ×180 ×275 843 ×180 ×275 940 ×200 ×298
Package Dimensions (W×D×H) mm 915 ×255 ×355 915 ×255 ×355 1010 ×285 ×380
Net Weight kg 10.5 10.5 13.0
Gross Weight kg 12.5 12.5 16.0
