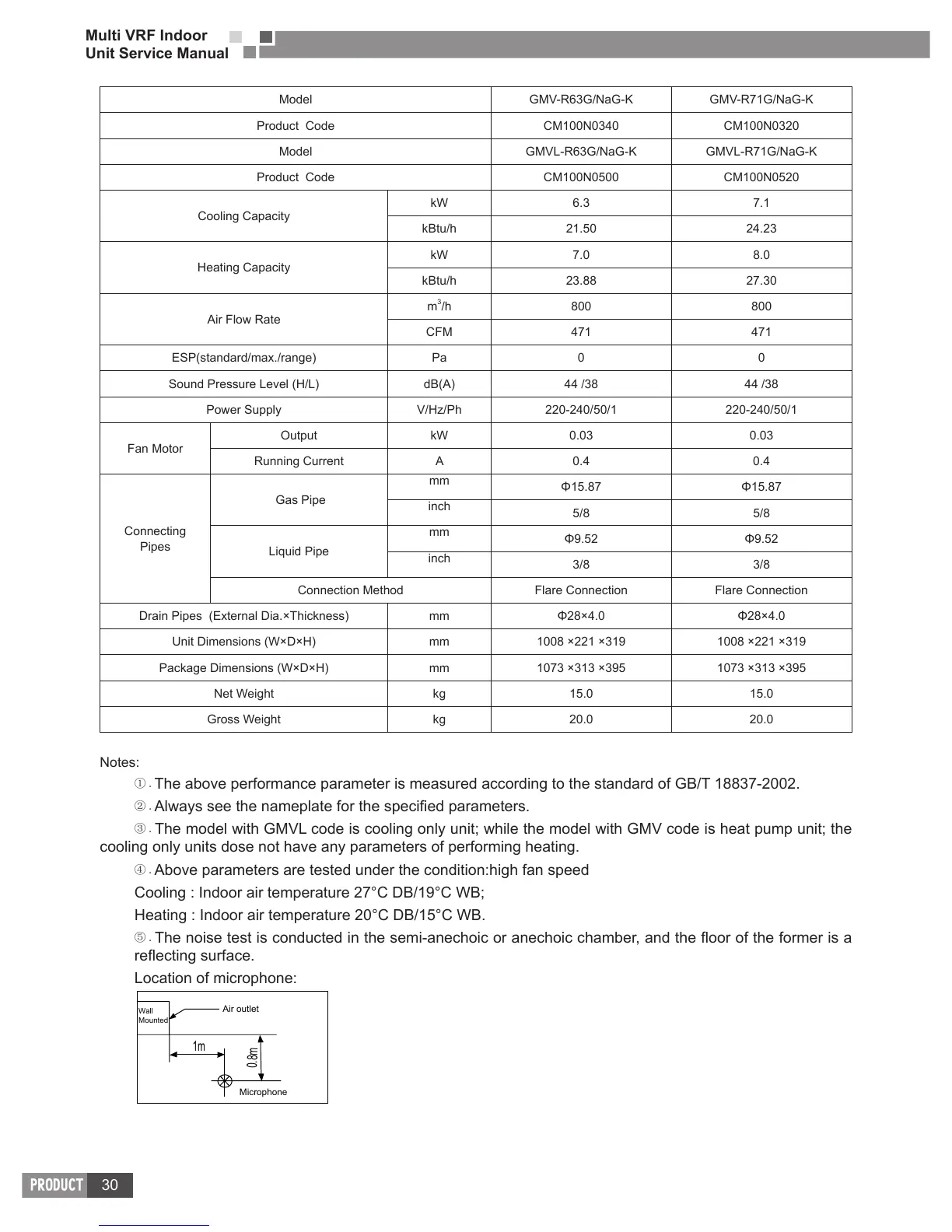

Gree GMV-R series

30
Multi VRF Indoor
Unit Service Manual
PRODUCT
Model GMV-R63G/NaG-K GMV-R71G/NaG-K
Product Code CM100N0340 CM100N0320
Model GMVL-R63G/NaG-K GMVL-R71G/NaG-K
Product Code CM100N0500 CM100N0520
Cooling Capacity
kW 6.3 7.1
kBtu/h 21.50 24.23
Heating Capacity
kW 7.0 8.0
kBtu/h 23.88 27.30
Air Flow Rate
m
3
/h 800 800
CFM 471 471
ESP(standard/max./range) Pa 0 0
Sound Pressure Level (H/L) dB(A) 44 /38 44 /38
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.03 0.03
Running Current A 0.4 0.4
Connecting
Pipes
Gas Pipe
mm
 
inch
5/8 5/8
Liquid Pipe
mm
 
inch
3/8 3/8
Connection Method Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm  
Unit Dimensions (W×D×H) mm 1008 ×221 ×319 1008 ×221 ×319
Package Dimensions (W×D×H) mm 1073 ×313 ×395 1073 ×313 ×395
Net Weight kg 15.0 15.0
Gross Weight kg 20.0 20.0
Notes:
①.
The above performance parameter is measured according to the standard of GB/T 18837-2002.
②.

③.
The model with GMVL code is cooling only unit; while the model with GMV code is heat pump unit; the
cooling only units dose not have any parameters of performing heating.
④.
Above parameters are tested under the condition:high fan speed
Cooling : Indoor air temperature 27°C DB/19°C WB;
Heating : Indoor air temperature 20°C DB/15°C WB.
⑤ .


Location of microphone:

Wall
Mounted
Microphone
Air outlet
1m
0
.
8m
