Gree GMV-R series User Manual

32
Multi VRF Indoor
Unit Service Manual
PRODUCT

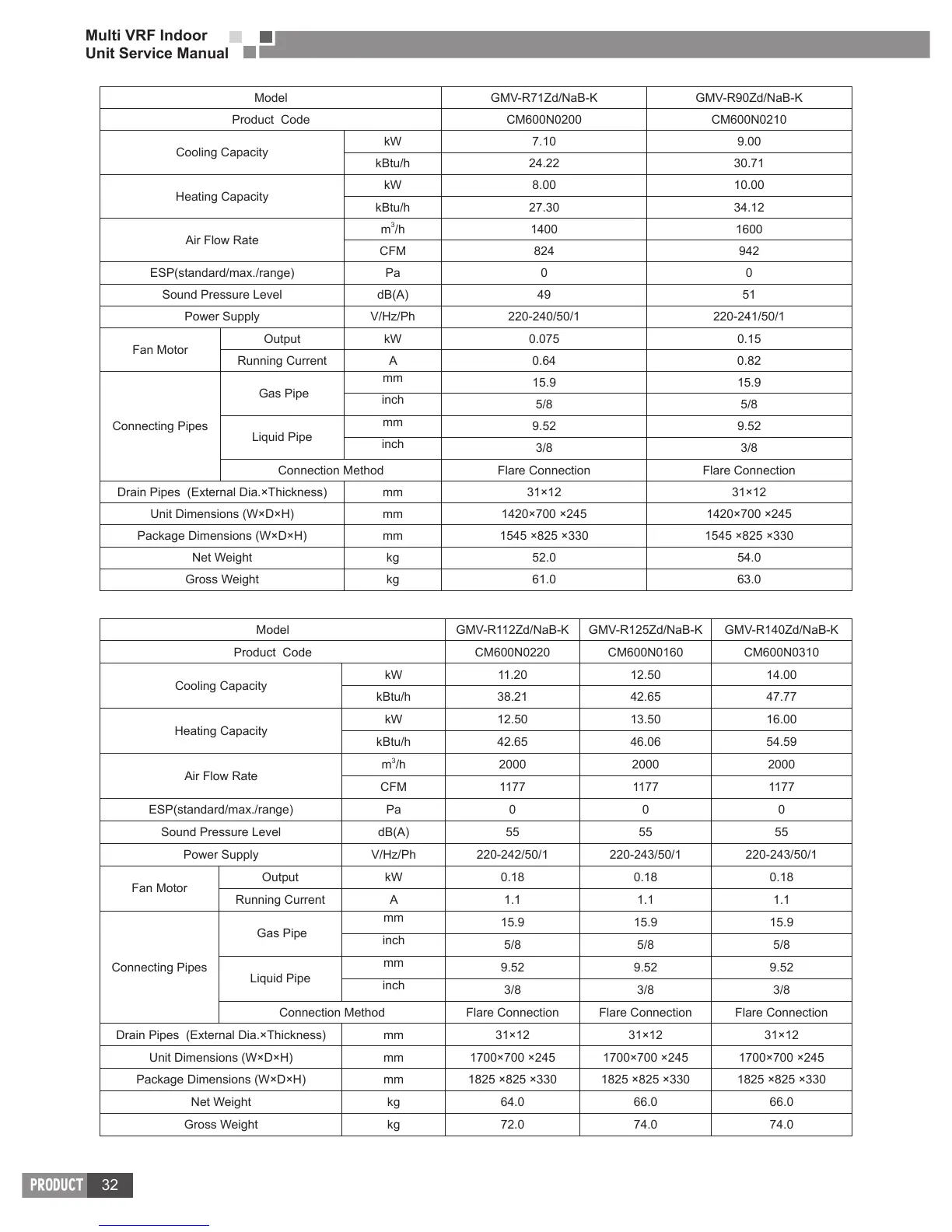

Model GMV-R71Zd/NaB-K GMV-R90Zd/NaB-K
Product Code CM600N0200 CM600N0210
Cooling Capacity
kW 7.10 9.00
kBtu/h 24.22 30.71
Heating Capacity
kW 8.00 10.00
kBtu/h 27.30 34.12
Air Flow Rate
m
3
/h 1400 1600
CFM 824 942
ESP(standard/max./range) Pa 0 0
Sound Pressure Level dB(A) 49 51
Power Supply V/Hz/Ph 220-240/50/1 220-241/50/1
Fan Motor
Output kW 0.075 0.15
Running Current A 0.64 0.82
Connecting Pipes
Gas Pipe
mm
15.9 15.9
inch
5/8 5/8
Liquid Pipe
mm
9.52 9.52
inch
3/8 3/8
Connection Method Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm 31×12 31×12
Unit Dimensions (W×D×H) mm 1420×700 ×245 1420×700 ×245
Package Dimensions (W×D×H) mm 1545 ×825 ×330 1545 ×825 ×330
Net Weight kg 52.0 54.0
Gross Weight kg 61.0 63.0
Model GMV-R112Zd/NaB-K GMV-R125Zd/NaB-K GMV-R140Zd/NaB-K
Product Code CM600N0220 CM600N0160 CM600N0310
Cooling Capacity
kW 11.20 12.50 14.00
kBtu/h 38.21 42.65 47.77
Heating Capacity
kW 12.50 13.50 16.00
kBtu/h 42.65 46.06 54.59
Air Flow Rate
m
3
/h 2000 2000 2000
CFM 1177 1177 1177
ESP(standard/max./range) Pa 0 0 0
Sound Pressure Level dB(A) 55 55 55
Power Supply V/Hz/Ph 220-242/50/1 220-243/50/1 220-243/50/1
Fan Motor
Output kW 0.18 0.18 0.18
Running Current A 1.1 1.1 1.1
Connecting Pipes
Gas Pipe
mm
15.9 15.9 15.9
inch
5/8 5/8 5/8
Liquid Pipe
mm
9.52 9.52 9.52
inch
3/8 3/8 3/8
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm 31×12 31×12 31×12
Unit Dimensions (W×D×H) mm 1700×700 ×245 1700×700 ×245 1700×700 ×245
Package Dimensions (W×D×H) mm 1825 ×825 ×330 1825 ×825 ×330 1825 ×825 ×330
Net Weight kg 64.0 66.0 66.0
Gross Weight kg 72.0 74.0 74.0
