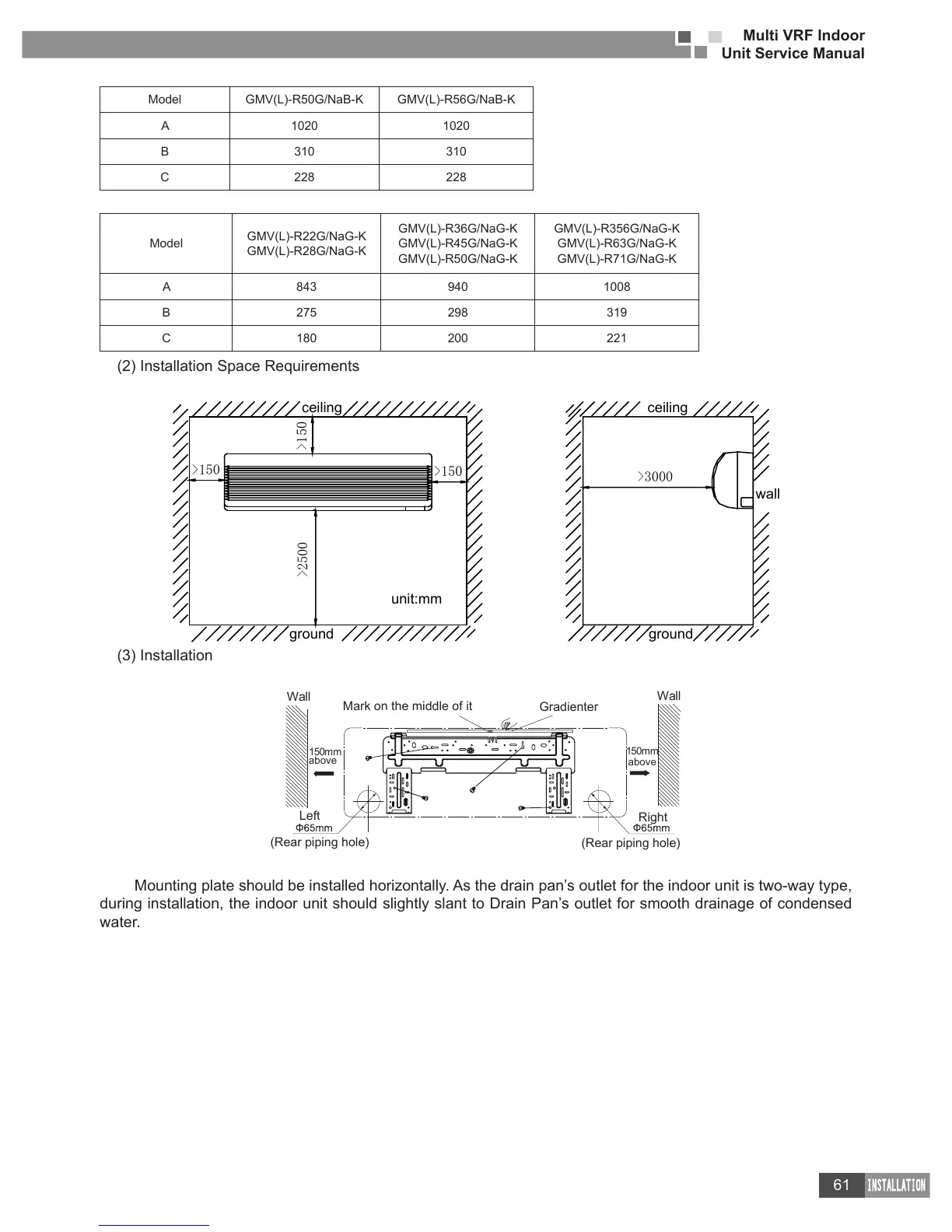

Gree GMV-R series

Multi VRF Indoor
Unit Service Manual
61
Model GMV(L)-R50G/NaB-K GMV(L)-R56G/NaB-K
A 1020 1020
B 310 310
C 228 228
Model
GMV(L)-R22G/NaG-K
GMV(L)-R28G/NaG-K
GMV(L)-R36G/NaG-K
GMV(L)-R45G/NaG-K
GMV(L)-R50G/NaG-K
GMV(L)-R356G/NaG-K
GMV(L)-R63G/NaG-K
GMV(L)-R71G/NaG-K
A 843 940 1008
B 275 298 319
C 180 200 221
(2) Installation Space Requirements
>150
>150
>2500
>150
>3000
ground ground
unit:mm
ceiling ceiling
wall
(3) Installation
Wall
Wall
Mark on the middle of it
Gradienter
Left
Right
(Rear piping hole)
(Rear piping hole)
above
above
mm051
mm051
Mounting plate should be installed horizontally. As the drain pan’s outlet for the indoor unit is two-way type,
during installation, the indoor unit should slightly slant to Drain Pan’s outlet for smooth drainage of condensed
water.
