26
Air to Water Heat Pump
Service Manual- Versati II Series
CONTROL
3�3�2�28 Address
Go to the FUNCTION page and locate “Address”, then, congure it through the Up/Down key to set the
address.
[Notes]
①
It indicates the address of the control and is intended for the group control.
②
It will not be memorized upon power failure.
③
The address range is [0,125] and [127,253]
④
The default address is 0 for the initial use.
3�3�2�29 Doorguard
Go to the FUNCTION page and locate “Doorguard”, then, congure it through the Up/Down key, “On” or
“Off”.
[Notes]
⑤
When it is activated, the control will check the card is inserted or not. If inserted, the control will run
normally; if not, the control will turn off the unit and back to the homepage. In this case, any key operation
is ineffective (except for the combined key operation), or a dialogue box will pop up, warning “Keycard
uninserted!”.
⑥
It will not be memorized upon power failure.

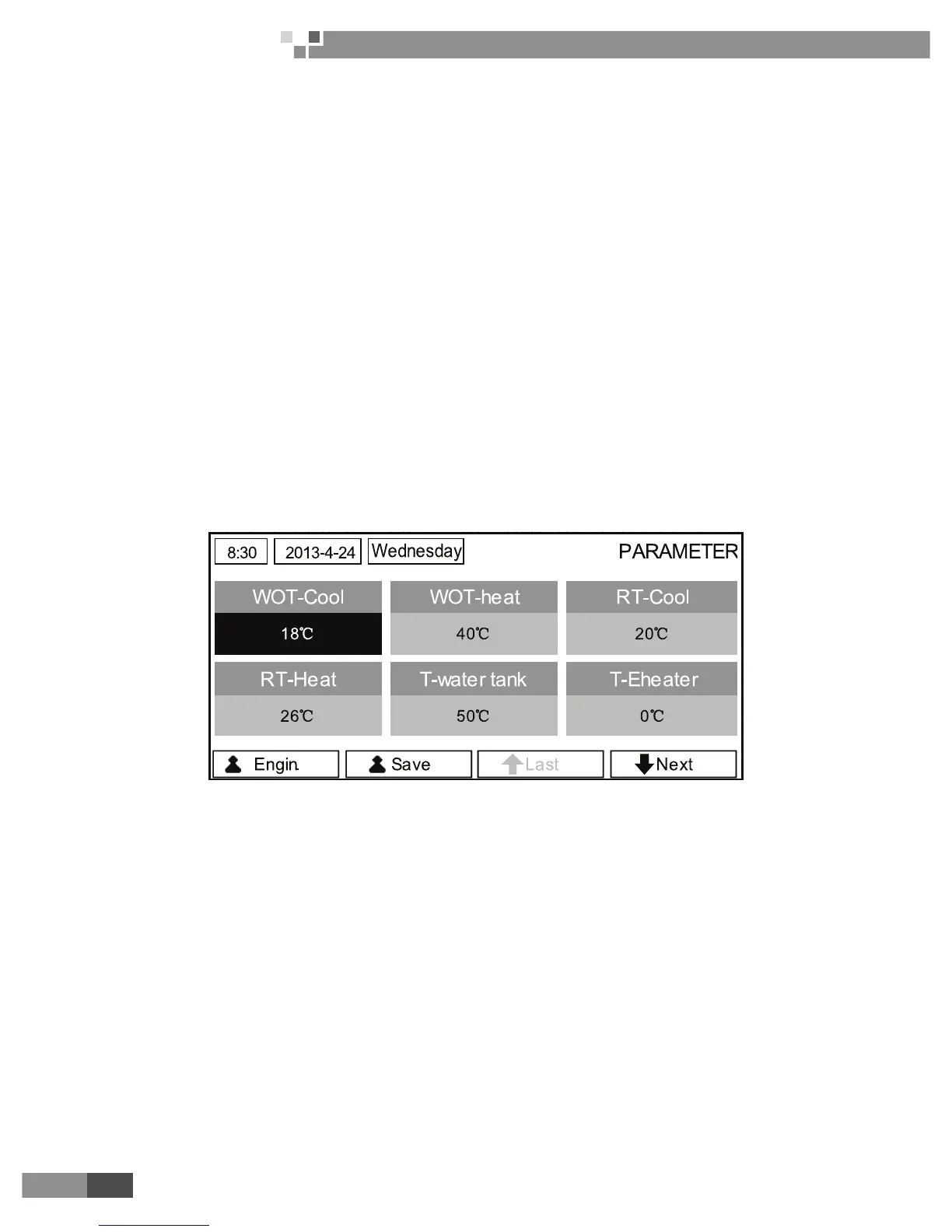

3�3�3 Parameter Setting (Parameter Set)
3�3�3�1 User Parameter Setting
1) At the homepage, it is able to go to the PARAMETER page by pressing the Function key no.2.
2) At the Parameter Set page, by the Left/Right key select the desired option and then by the Up/Down key
increase or decrease the setting value which will be continuously changed when pressing and holding the key.
3) When the setting is nished, press “Save” and a dialog box will pop up, reminding “Save settings?”. If
so, press the OK key; if not press the Cancel key to not save this setting.
User Setting
To Next Page
