4.3 Regulating the rebate clearance
The ex-factory setting of SECUREconnect 100F regarding the rebate clearance is 0 - 6 mm.

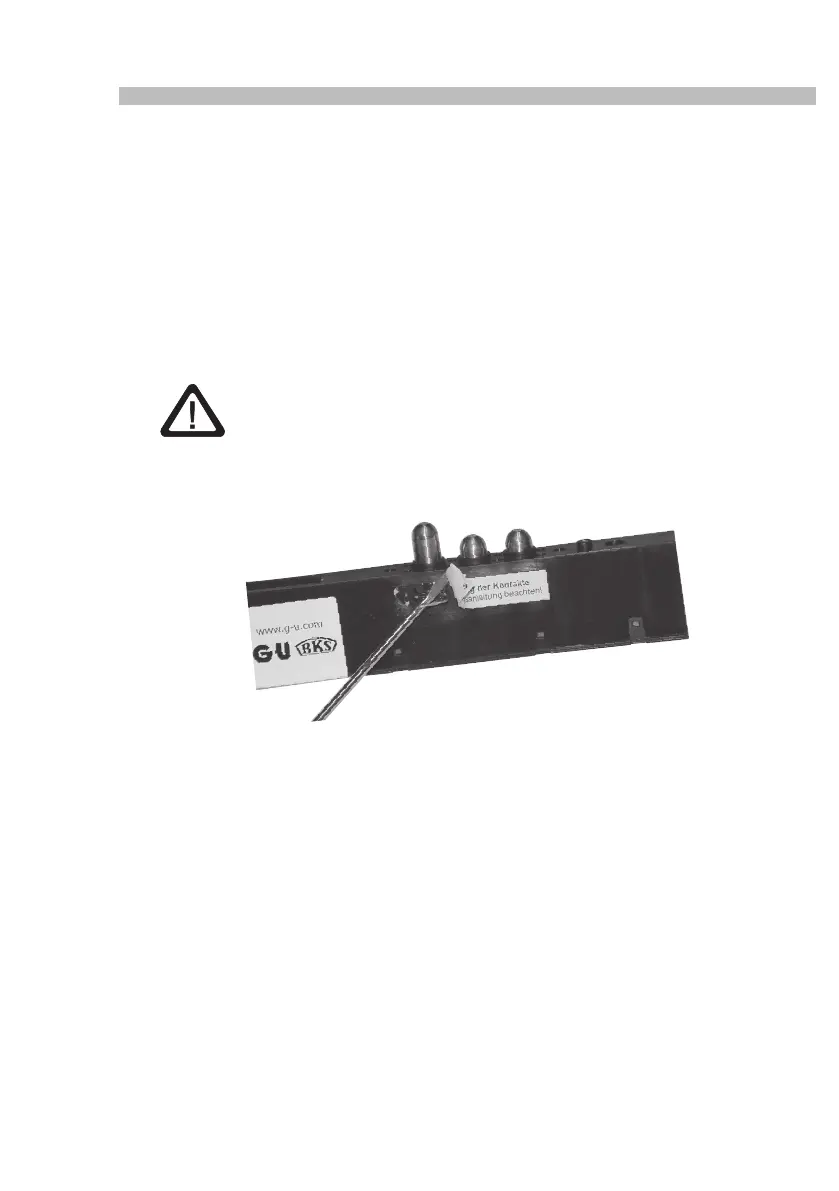

For increasing this value to 6 - 12 mm, it is possible to pull out the restricting brackets on the
side of the tappet contacts using a small screwdriver. In doing so, the adhesive label "Hubver-
stellung der Kontakte" (adjustment of contact travel) must be removed carefully and re-attached
afterwards. The tappet contacts now protrude 12 mm from the device.
Do not reinsert the restriction brackets with the rebate clearance set
to 6 - 12 mm !
If you wish to limit SECUREconnect 100F to a rebate clearance of 6 mm again, press back the
tappet contacts until stop and reinsert the restricting brackets.
Attention
Do not adjust to 6 - 12 mm rebate clearance if the clearance is smaller than
6 mm. This would increase the strain on the contacts and reduce the service
life of the device.
Reattach the adhesive label for protection !
