Gretsch-Unitas SECUREconnect 100 - Connection Diagram of EK Lock Series 21 (with 14-Wire Connecting Cable)

52
SECUREconnect 100

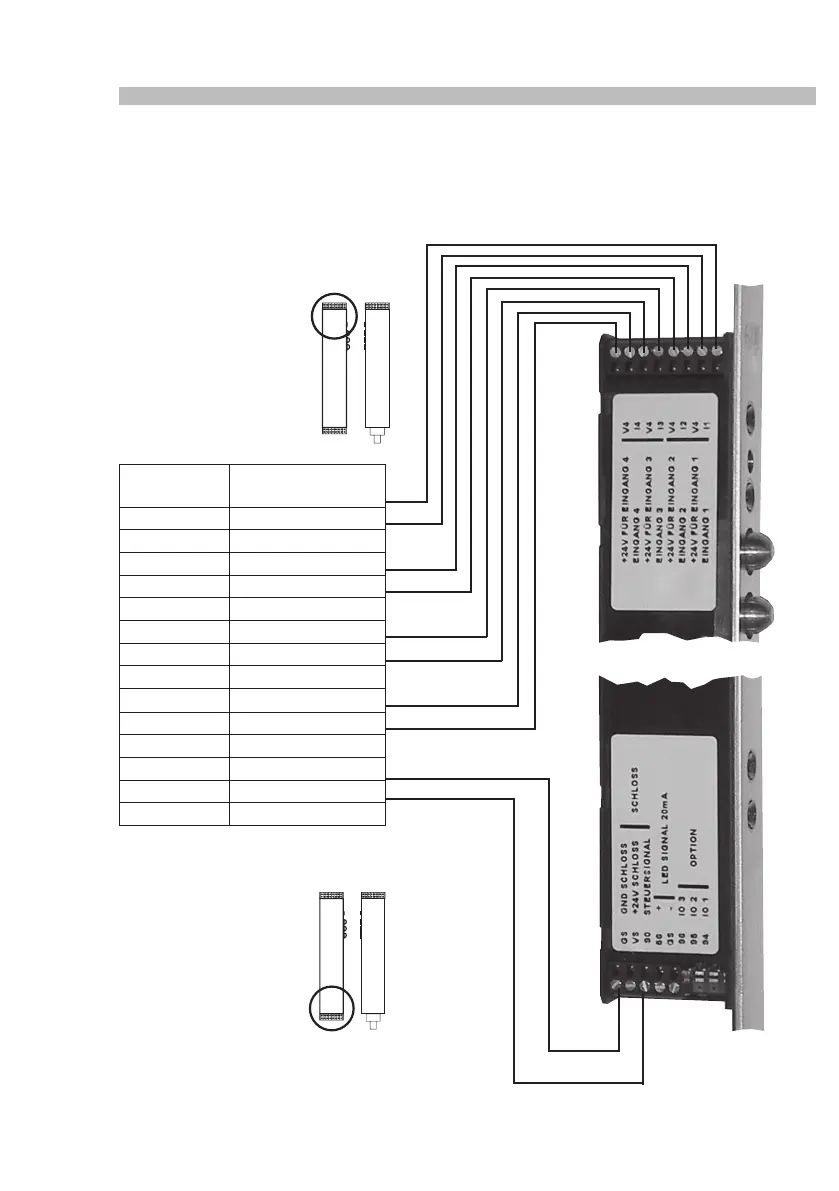

7.6 Connection diagram of ‘EK‘ lock
Series 21 (with 14-wire connecting cable)
Connecting
cable
Signal
Blue Locked COM
Green Locked NO
Grey LockedNC
Red Cyl. locking cam COM
Yellow Locking cam NO
Pink Schließbart NC
Purple Handle side 1 COM
Red-blue Handle side 1 NO
Brown-green Handle side 1 NC
White-green Handle side 2 COM
Grey-pink Handle side 2 NO
Black Handle side 2 NC
White GND
Brown +12 - 24V
SECUREconnect 100F
