Gretsch-Unitas SECUREconnect 100 - Function with Electromechanical Locks (EK)

46
SECUREconnect 100
6.4 Function with electromechanical locks ('EK')
6.4.1 Short-time OPEN (engaging the lever handle)
If a potential-free contact connected to terminals 93 / V4 is actuated with the door closed,
SECUREconnect 100F receives the signal to engage the lever handle.
• If the door remains closed, the lever handle will be disengaged again after 20 s.
• If the door is opened, the lever handle will be disengaged again after 3 s.
• If a potential-free contact connected to terminals 93 / V4 is actuated permanently, the
lever handle remains engaged remains for the duration of the signal (see above).
• If the door is opened, the lever handle will be disengaged again after 3 s.
• If the door is closed again, the lever handle will be re-engaged.
6.4.2 Permanent OPEN
If a potential-free contact (gating pulse) connected to terminals 91 / V4 is actuated with the
door closed, SECUREconnect 100F receives the signal to engage the lever handle.
• If the door remains closed, the lever handle will remain engaged.
• If the door is opened, the lever handle will be disengaged again after 3 s
•
If the door is closed again, the lever handle will be re-engaged.
6.4.3 Door closing (disengaging the lever handle)
If a potential-free contact connected to terminals 92 / V4 is actuated with the door closed,
SECUREconnect 100F receives the signal to disengage the lever handle.

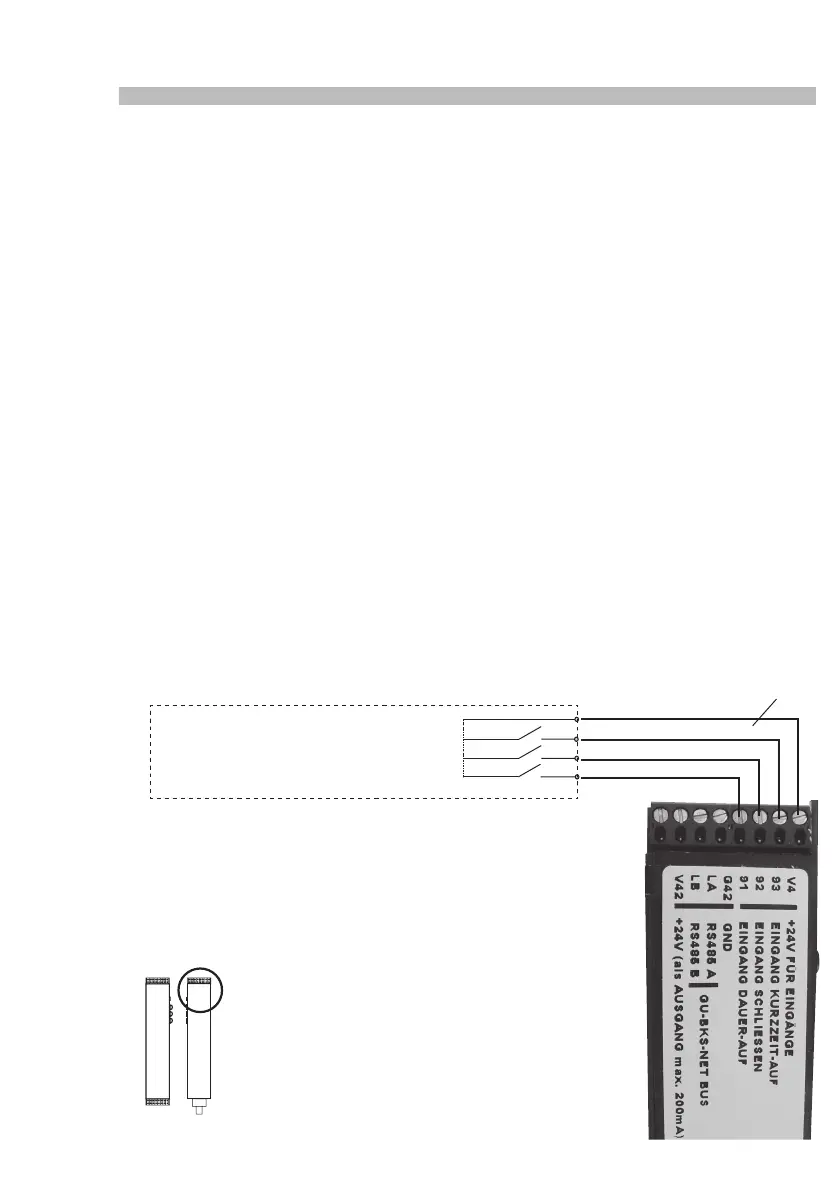

Enclosed connection cable with
terminals
brown
white
yellow
green
Short-time OPEN (impulse), e.g. intercom
access control, timer switch
+ 24V short-time OPEN (impulse)
Close (impulse / handle disengaging)
Permanent OPEN (impulse)
