SECUREconnect 100
7 Connection diagrams

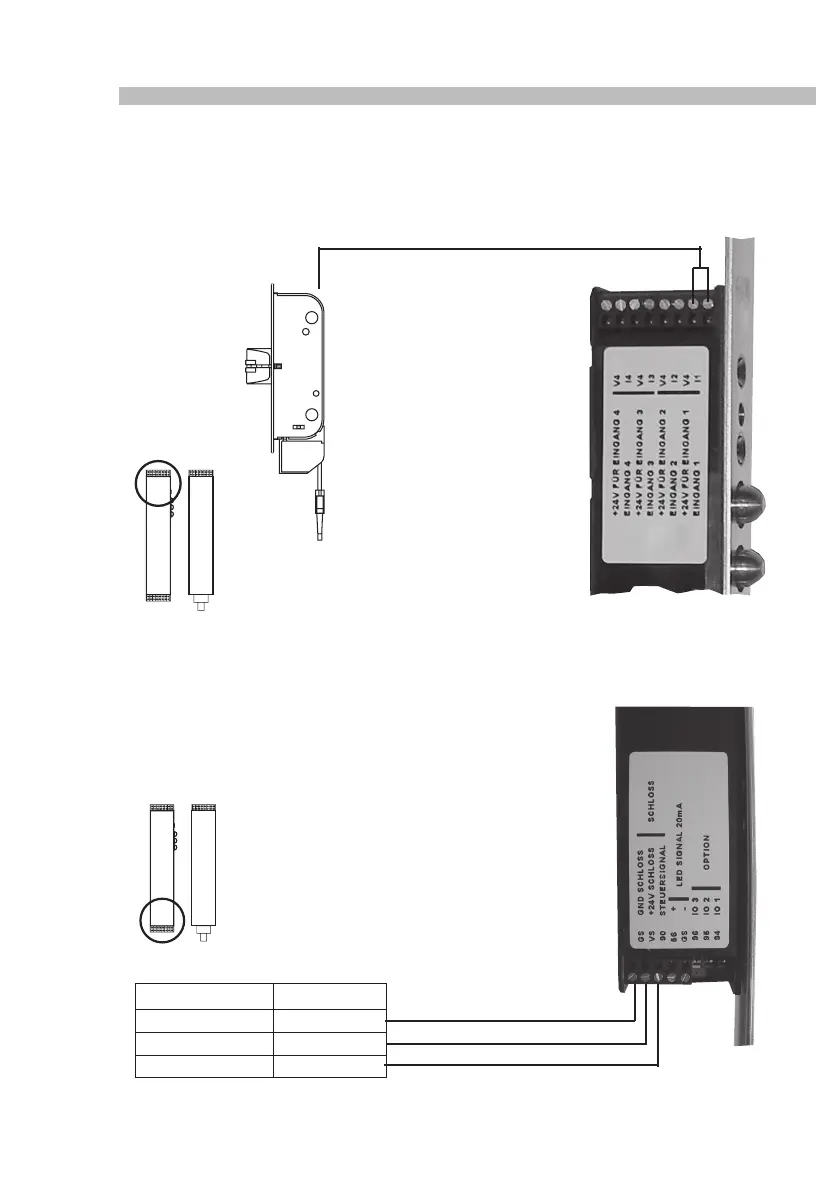

7.1 Latchbolt monitoring
SECUREconnect 100F
Connecting cable Signal
Grey (blue) GND (minus)
Brown 24V (plus)
Black Control line
SECUREconnect 100F
7.2 Connection diagram Secury Automatik with A-opener
Impulse-controlled door opening time approx. 2 s (cannot be adjusted).
Permanent door opening time corresponds to duration of control signal
System cable for
latchbolt monitoring
