37
Power and Data Transmission Unit
4.4 Installation in the door
Depending on the door material (timber, metal, PVC), different fastening screws must be used
for the installation of SECUREconnect 100; type and length of the screws vary according to the
door prole used.
It is important, however, that the max. screw diametre does not exceed 4.0 mm. The fasten-
ing screws should allow for being inserted through the face plate and SECUREconnect 100
without any resistance.
Ensure that there is sufcient space for a cable loop.
Be careful to not deform the face plate when fastening SECUREconnect 100 to the door (this
refers especially to at face plates).
In installed condition, the tappet contacts of SECUREconnect 100F and the contact surfaces of
SECUREconnect 100R must be exactly aligned, the maximum tolerable offset is 2 mm.

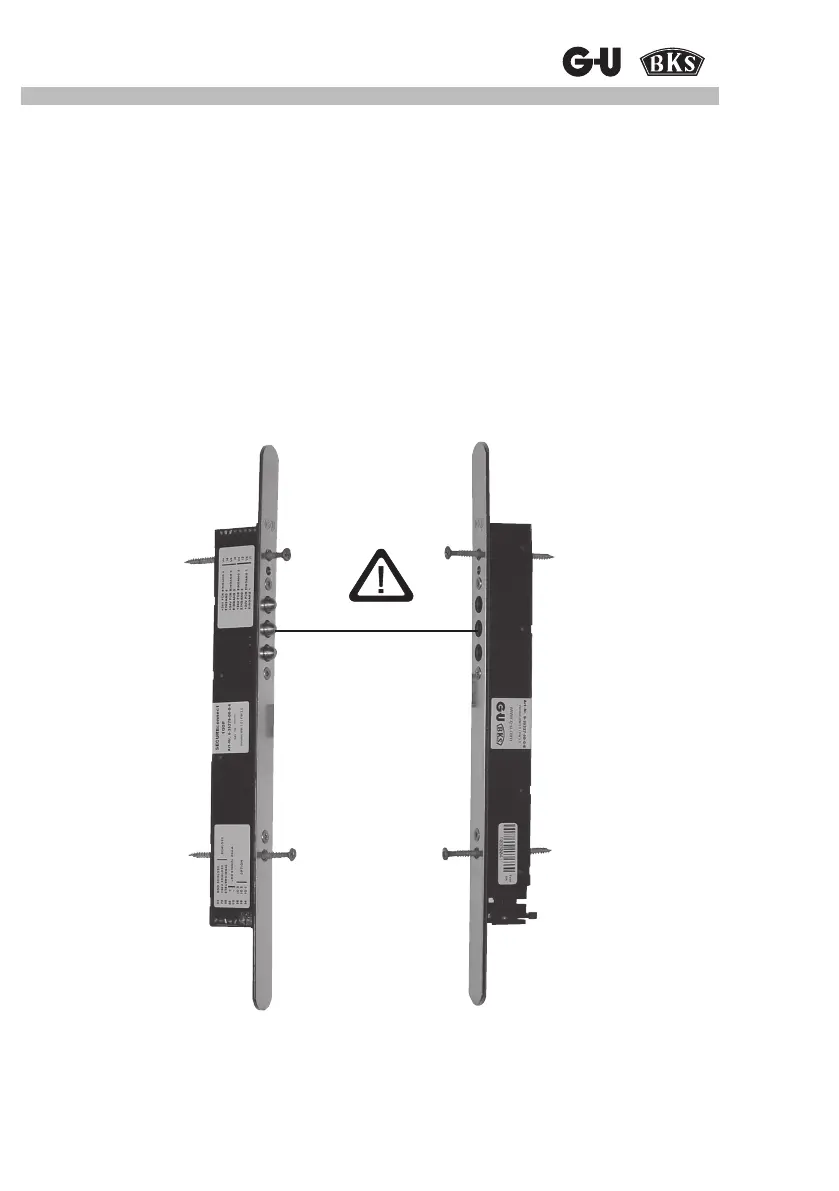

Figure shows installation in timber doors.
In the case of metal and PVC doors, SECUREconnect 100F is fastened by the face
plate screws.
Please consider enclosed installation drawing 0-45733-LO.
Max. offset 2mm
